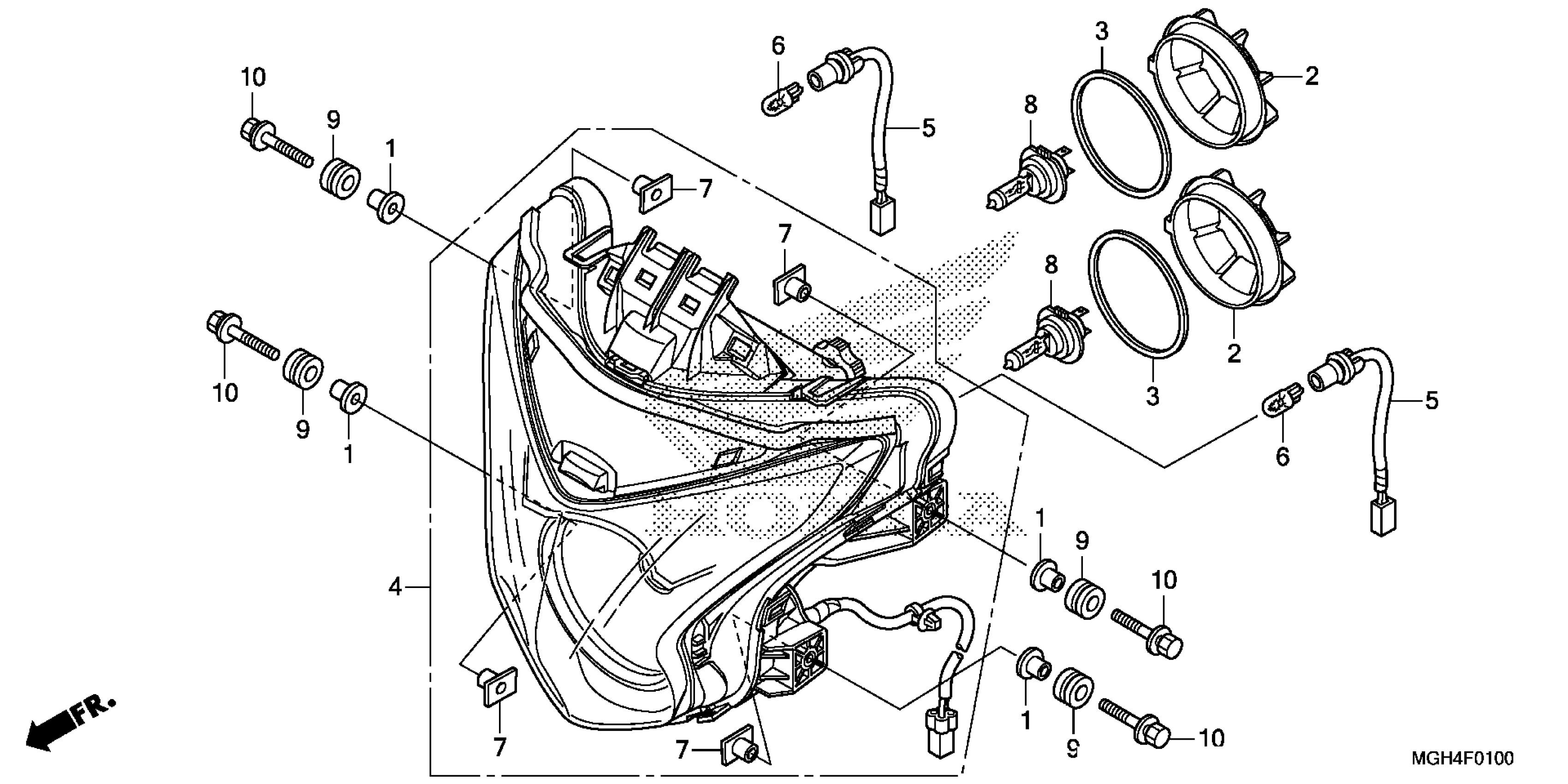

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 HEADLIGHT Diagram

COLLAR

33111-MGH-640

$7.25

COVER, SOCKET

33112-MFJ-D01

$8.20

GASKET, SOCKET COVER

33114-MGE-641

$9.98

HEADLIGHT UNIT

33120-MGH-641

$1,117.88

SOCKET, POSITION LIGHT

33140-MGH-641

$39.64

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

NUT, TAILLIGHT MOUNTING (NOT AVAILABLE)

33713-KC5-003

Unavailable

BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)

34901-MAT-611

$24.61

RUBBER, FR. FENDER MOUNTING

61103-357-000

Unavailable

BOLT-WASHER (6X32)

93404-06032-08

$1.70
