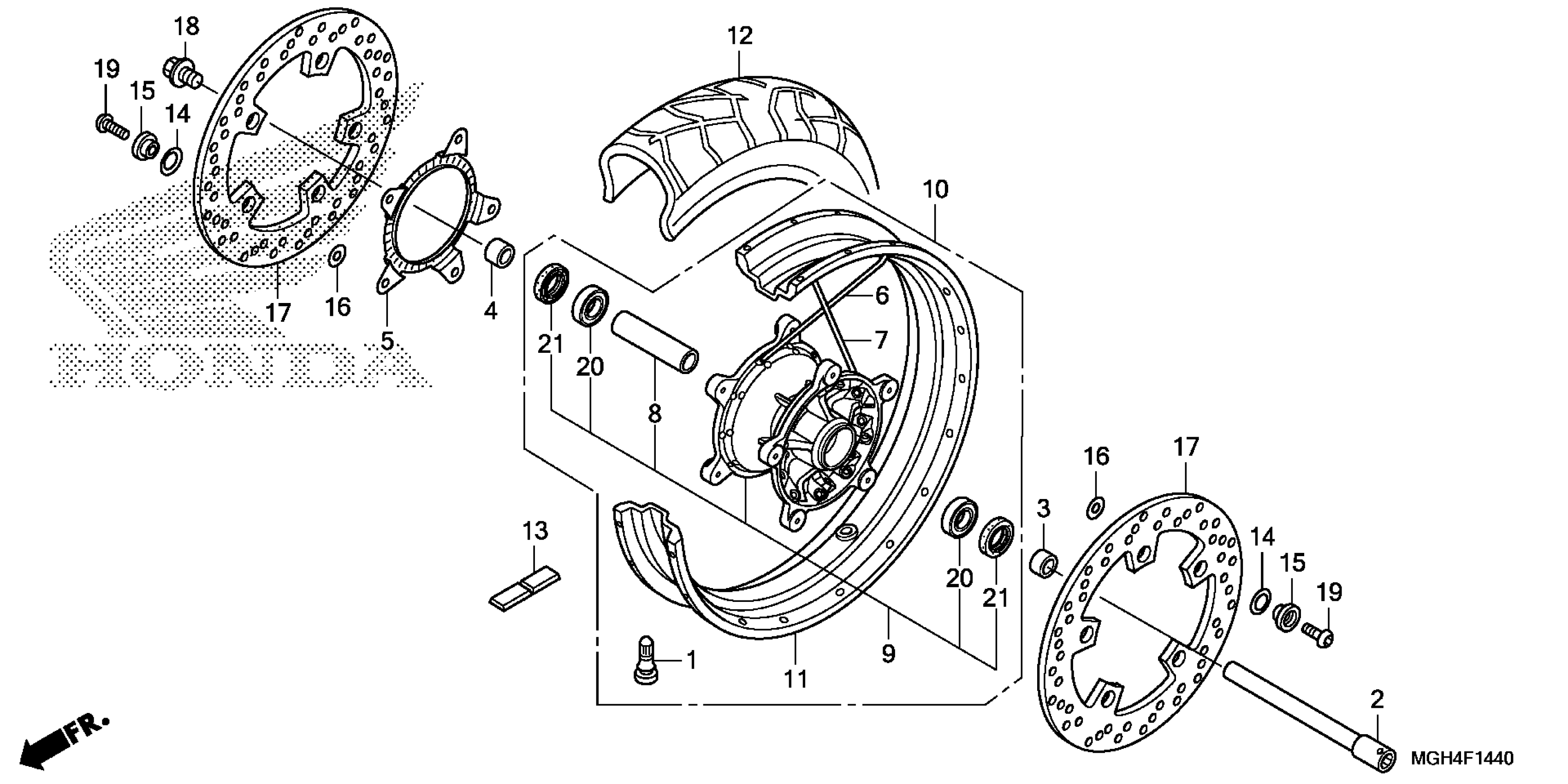

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 FRONT WHEEL Diagram

#

Description
Price

1

VALVE, RIM (BS)

42753-ML7-003

$11.44

2

AXLE, FR. WHEEL

44301-MGH-640

$65.48

3

COLLAR, R. FR. WHEEL SIDE (L. SIDE)

44311-MBW-E10

$9.09

4

COLLAR, R. FR. WHEEL SIDE

44311-MGH-640

$5.26

5

RING, FR. PULSER

44515-MGH-640

$62.07

6

SPOKE SET A, FR. (212.5MM)

44605-MGH-640

$4.56

7

SPOKE SET B, FR. (207.5MM)

44606-MGH-640

$4.56

8

COLLAR, FR. AXLE DISTANCE

44620-MGH-640

$10.17

9

HUB SUB-ASSY., FR.

44635-MGH-640

$355.23

10

WHEEL SUB-ASSY., FR.

44650-MGH-640

$1,623.81

11

RIM, FR. WHEEL

44701-MGH-641

$211.45

12

TIRE, FR. (110/80R19 M/C 59V) (BS)

44711-MGH-643

Unavailable

13

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.00

13

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.59

13

WEIGHT, BALANCE (20G)

44723-MGH-H21

$3.70

14

SPRING, FR. DISK

45223-MGH-H21

$4.67

15

COLLAR, FR. DISK

45225-MGC-000

$11.48

16

WASHER, FR. DISK

45226-MGC-000

$4.56

17

DISK, FR. BRAKE (YUTAKA)

45251-MGH-641

$730.30

18

BOLT, FR. AXLE

90105-MBT-610

$5.38

19

BOLT, TORX (6X18)

90105-MGC-000

$4.03

20

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$24.70

21

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.49
