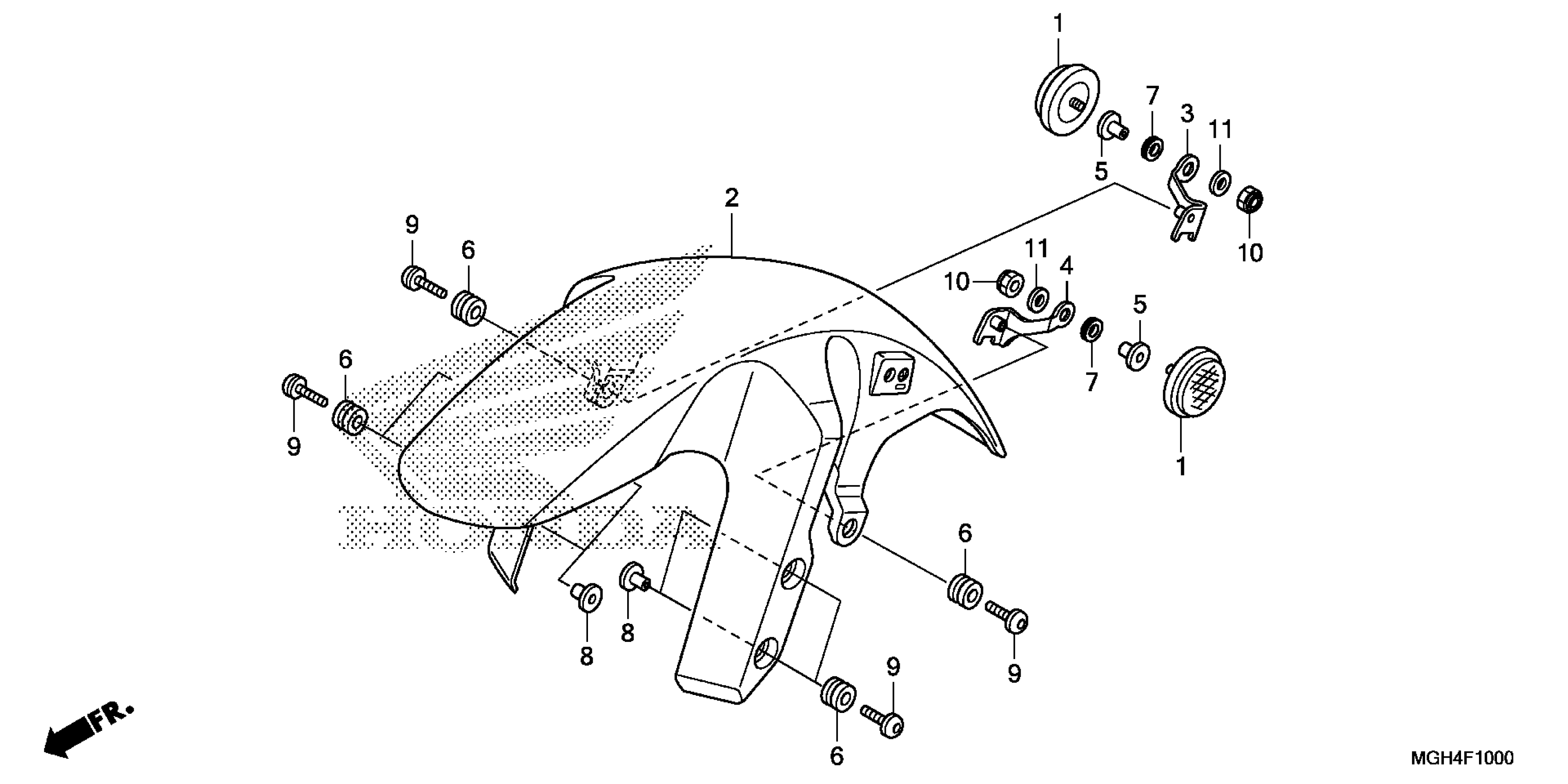

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 FRONT FENDER Diagram

#

Description

Price

1

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$8.74

2

FENDER, FR. NHA86M (MAT BALLISTIC BLACK) | Pearl cosmic black NHA64P; Candy prominence red R342C;

61100-MGH-640ZC

$192.83

3

STAY, R. FR. REFLECTOR

61103-MGH-H20

$37.57

4

STAY, L. FR. REFLECTOR

61104-MGH-H20

$35.94

5

COLLAR, SEAT SETTING

77103-MEE-000

$2.48

6

RUBBER, RR. FENDER CUSHION

80101-165-000

$3.48

7

RUBBER, RR. COWL MOUNTING

80123-MER-D00

$1.84

8

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.80

9

BOLT, SPECIAL (6X18)

90021-MZ1-000

$4.00

10

NUT, U (6MM)

90301-782-000

$1.48

11

WASHER, PLAIN (6MM)

94101-06700

$0.86
