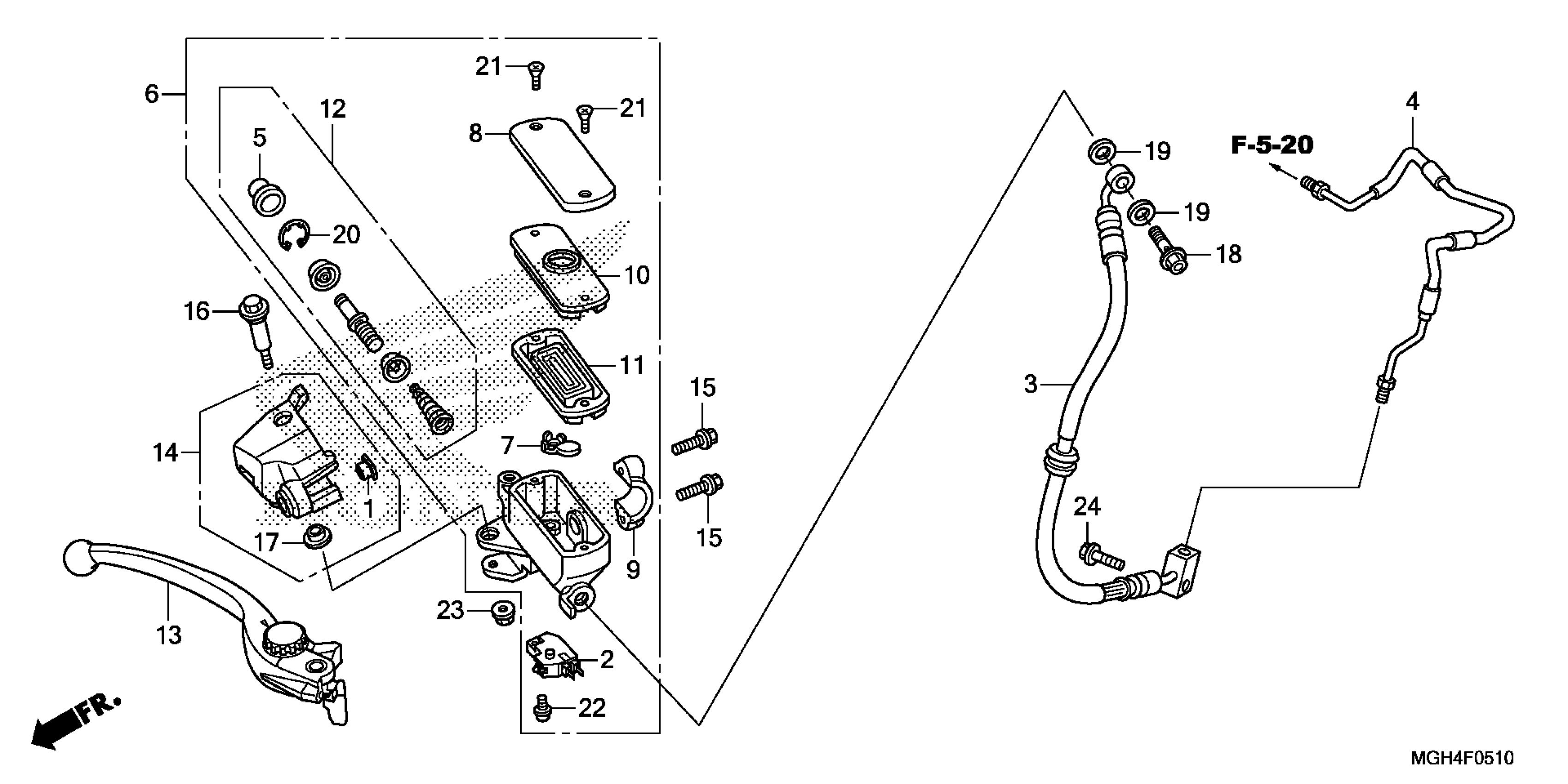

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 FRONT BRAKE MASTER CYLINDER Diagram

NUT, AIR IN. DUCT

17345-MFJ-D00

$4.41

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

HOSE A, FR. BRAKE

45123-MGH-641

$106.80

PIPE A, FR. BRAKE

45125-MGH-640

$16.93

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. (NISSIN) This part replaces 45510-MGH-305.

45510-MGH-641

$297.59

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

DIAPHRAGM

45520-MM5-006

$15.12

MASTER CYLINDER SET

45530-MA4-671

$47.76

LEVER ASSY., R. HANDLE This part replaces 53170-MEJ-305.

53170-MEJ-016

$45.19

HOLDER, R. KNUCKLE

53191-MGH-640

$17.98

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, HANDLE LEVER

90114-MGH-641

$6.90

COLLAR (6X4)

90127-KF0-770

$3.42

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
