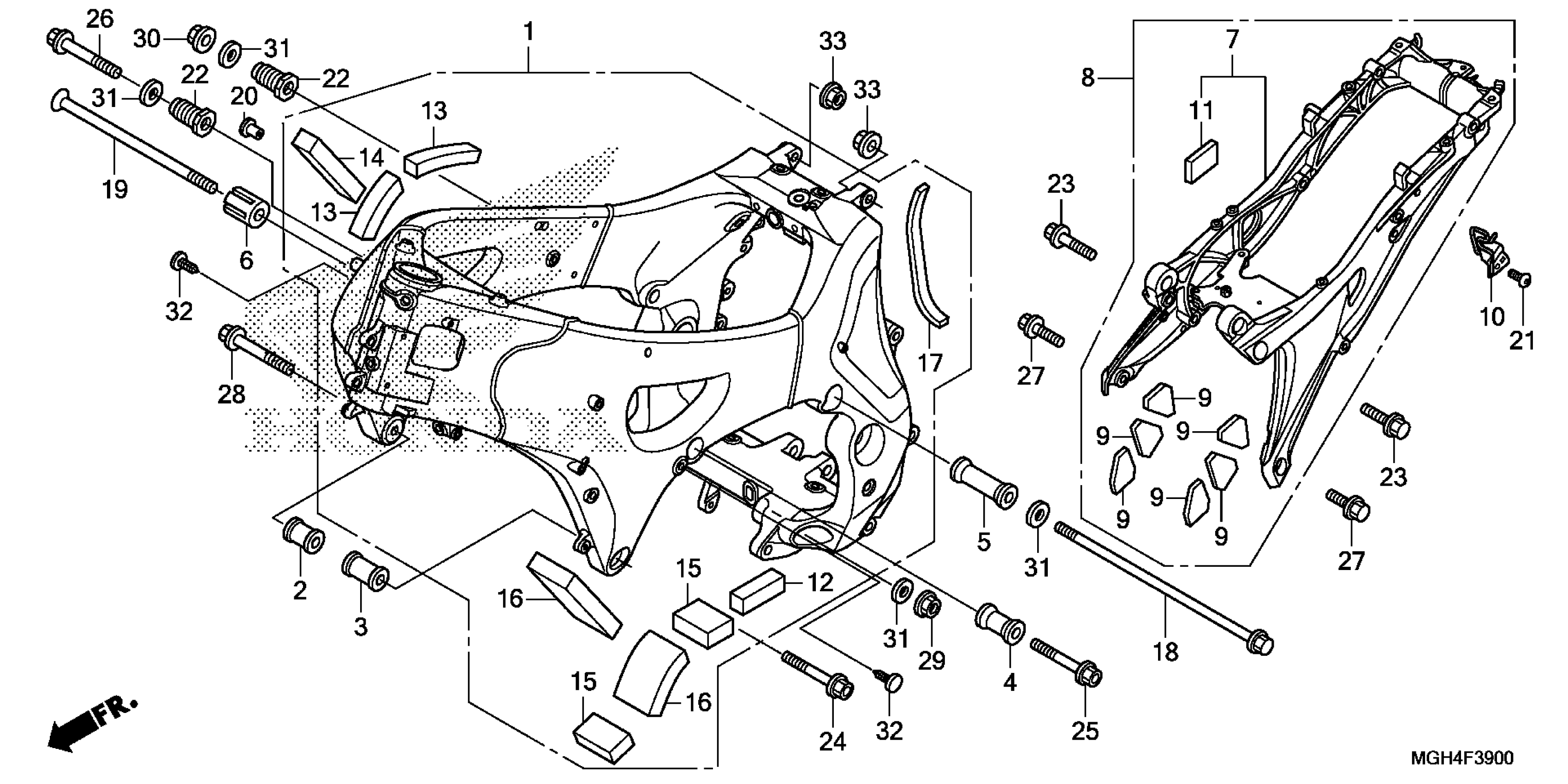

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 FRAME Diagram

#

Description
Price

1

FRAME SET *NHA86M* (MAT BALLISTIC BLACK) | Pearl cosmic black NHA64P; Candy prominence red R342C;

50010-MGE-701ZD

$3,464.75

2

COLLAR A, R. ENGINE HANGER

50191-MGE-000

$7.10

3

COLLAR A, L. ENGINE HANGER

50192-MGE-000

$8.91

4

COLLAR B, ENGINE HANGER

50193-MGE-000

$10.26

5

COLLAR C, ENGINE HANGER

50194-MGE-000

$17.24

6

COLLAR D, ENGINE HANGER

50195-MGE-000

$24.79

7

RAIL ASSY., SEAT *NHA86M* (MAT BALLISTIC BLACK) | Pearl cosmic black NHA64P; Candy prominence red R342C;

50200-MGH-640ZC

$612.72

10

HOLDER, HELMET

50206-MGH-640

$26.37

11

MAT F, SHOCK ABSORBER

64314-MCT-770

$2.47

12

MAT, TAILLIGHT

64470-GEY-300

$4.37

13

URETHANE A, R. HEAT GUARD

83530-MGE-000

$2.96

14

URETHANE B, R. HEAT GUARD

83550-MGE-000

$2.13

15

URETHANE A, L. HEAT GUARD

83630-MGE-000

$2.44

16

URETHANE B, L. HEAT GUARD

83635-MGE-000

$3.81

17

URETHANE, R. HEAT GUARD

83640-MGE-700

$1.74

18

BOLT, FLANGE (12X344)

90101-MGE-000

$20.49

19

BOLT, SPECIAL (12X303)

90102-MGE-000

$25.93

20

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

21

SCREW, PAN (6X14)

90118-MBV-000

$1.75

22

BOLT, ADJUSTER (18X1.5X28.5)

90151-MGE-000

$12.12

23

BOLT, FLANGE (10X45)

90160-MGE-000

$4.49

24

BOLT, FLANGE (12X85)

90161-MGH-640

$14.09

25

BOLT, FLANGE (12X95)

90162-MGH-640

$14.71

26

BOLT, FLANGE (12X60)

90163-MGH-640

$12.82

27

BOLT, FLANGE (10X32)

90164-MGE-000

$4.15

28

BOLT, FLANGE (12X70)

90166-MGH-640

$11.59

29

NUT, FLANGE (12MM)

90371-MGE-000

$2.04

30

NUT, FLANGE (12MM)

90372-MGE-000

$2.04

31

WASHER, PLAIN (12MM)

90559-ZW1-000

$5.65

32

CLIP, BRUSH

90656-MGH-641

$2.06

33

NUT, FLANGE (10MM)

94050-10000

$1.66
