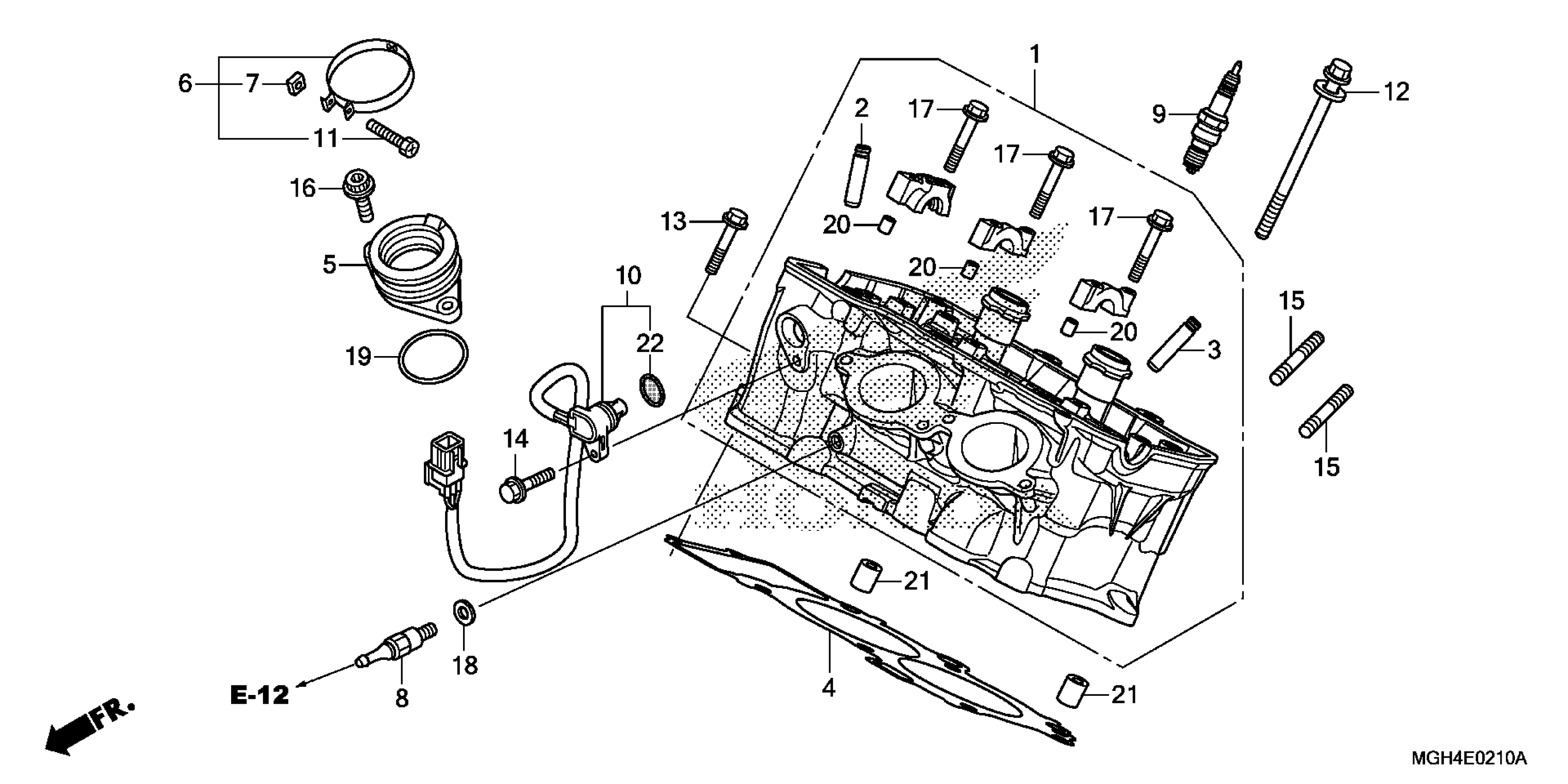

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 CYLINDER HEAD (RR.) Diagram

CYLINDER HEAD ASSY., RR.

12020-MGE-020

$1,186.81

GUIDE, VALVE (OVER SIZE)

12204-MFL-305

$15.42

GUIDE, EX. VALVE (OVER SIZE)

12205-MGE-305

$16.88

GASKET, RR. CYLINDER HEAD

12261-MGE-013

$72.61

INSULATOR, THROTTLE BODY

16210-MGE-000

$48.57

BAND, INSULATOR

16218-MEL-000

$4.21

NUT, SQUARE (5MM)

16222-MV4-300

$1.96

JOINT, BLEEDING

19410-MFG-D00

$22.86

SPARK PLUG (IMR8E-9HES) (NGK)

31912-MGH-641

$28.23

SPARK PLUG (VUH24ES) (DENSO)

31922-MGH-642

$30.90

SENSOR ASSY., CAM

36140-MGE-003

$75.00

BOLT, RECESSED (5X22)

90005-MEL-000

$1.33

BOLT-WASHER (10X105)

90007-MAT-000

$9.83

BOLT, FLANGE (6X35)

90016-GHB-700

$1.99

BOLT, FLANGE (6X22)

90032-MGE-000

$1.99

BOLT, STUD (6X25)

90035-MGE-000

$2.11

BOLT, FLANGE SOCKET (6X16)

90071-MEL-000

$2.04

BOLT, FLANGE (6X40)

90102-KE5-000

$2.84

GASKET (SHOWA)

90544-439-930

$1.94

O-RING (48.5X2.5)

91301-MCH-003

$5.22

PIN, DOWEL (8X14)

94301-08140

$2.04

PIN A, DOWEL (12X16)

94301-12160

Unavailable

O-RING

37701-GFZ-J00

$2.06
