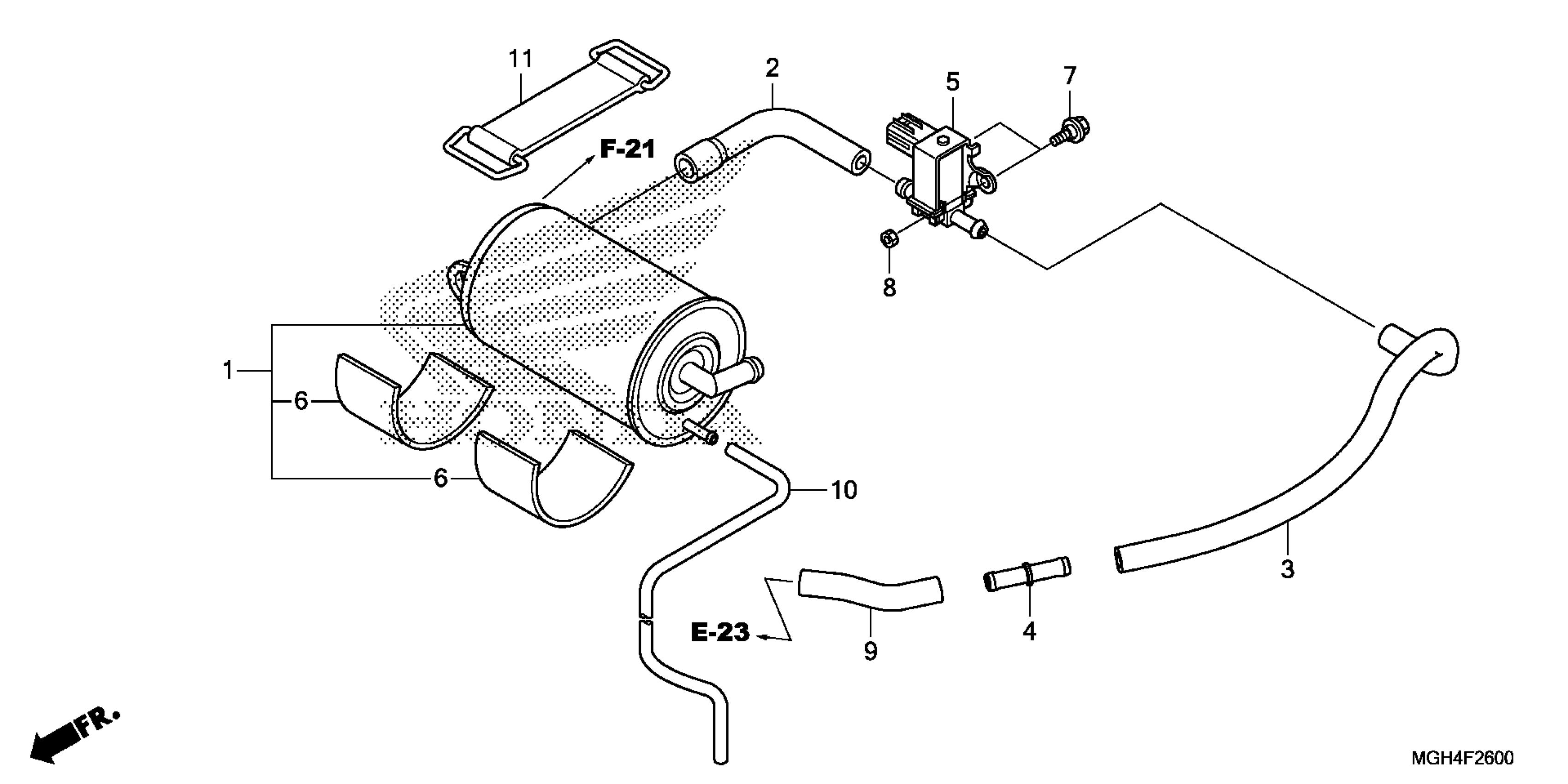

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 CANISTER Diagram

#

Description
Price

1

CANISTER

17410-MGH-T51

$265.90

2

TUBE, CANISTER PURGE CONTROL VALVE

17412-MGE-770

$4.67

3

TUBE, CANISTER PURGE

17413-MGH-H20

$8.42

4

JOINT (TWO-WAY)

17445-MGH-H20

$12.42

5

VALVE, PURGE CONTROL SOLENOID

36162-PLC-003

$56.81

6

CUSHION, EQUALIZER

50195-GAG-000

$3.10

7

BOLT, SPECIAL (5X9)

90101-KRN-730

$2.41

8

NUT, HEX. (5MM)

94001-05000-0S

$2.42

9

BULK HOSE, FUEL (7.5X8000) (7.3X70)

95001-75008-60M

$93.20

10

BULK HOSE, VACUUM (4.5X1000) (4.5X600)

95005-45001-10M

$21.06

11

BAND B2, BATTERY

95012-13001

$4.92
