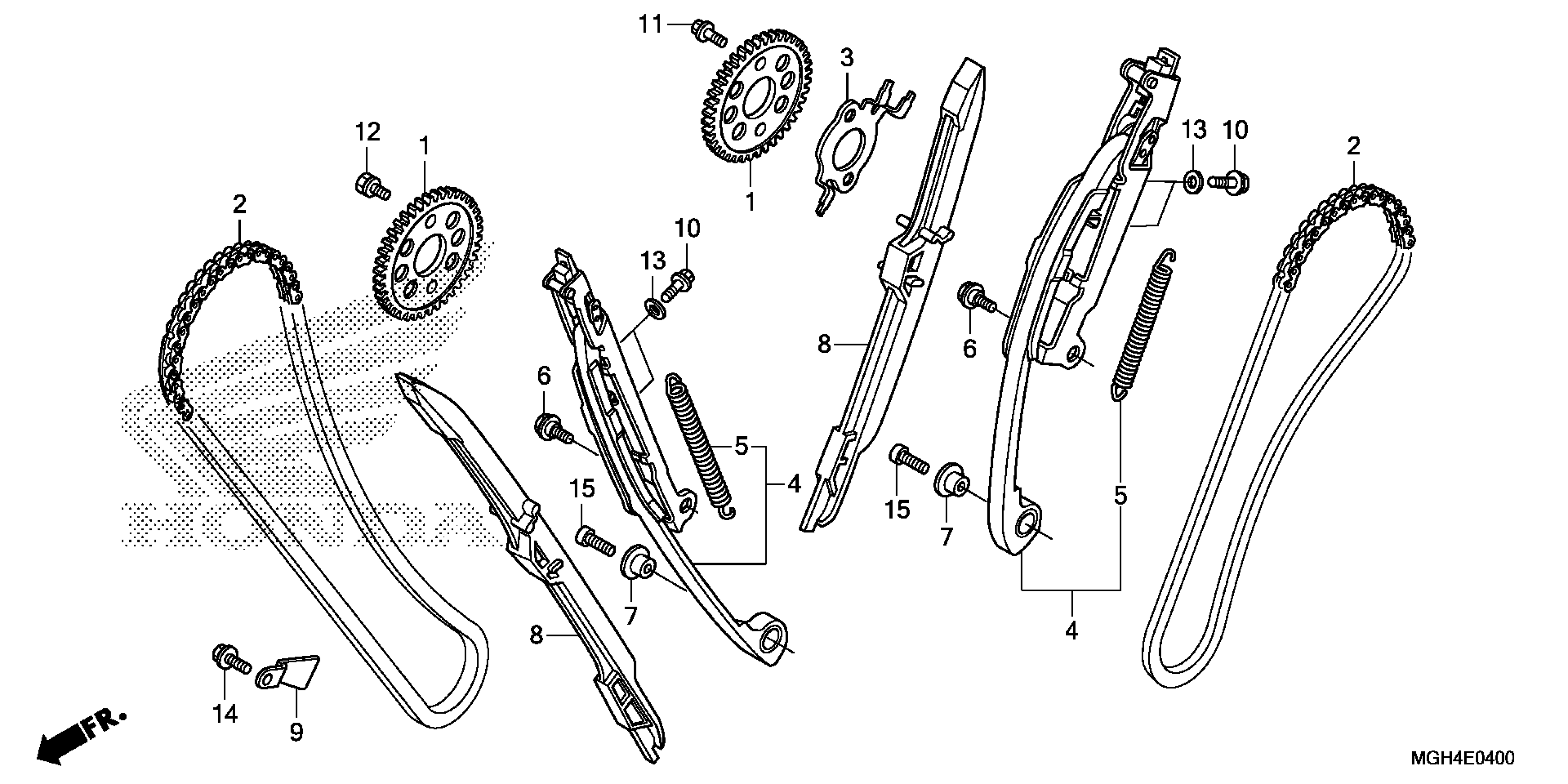

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (40T)

14321-MGE-000

$78.96

CHAIN, CAM (120L) (BORG WARNER)

14401-MGE-003

$74.58

ROTOR, CAM PULSE

14405-MGE-000

$29.29

TENSIONER, CAM CHAIN

14510-MGE-030

$168.57

SPRING, CAM CHAIN TENSIONER

14516-MGE-310

$6.45

BOLT, SPECIAL (6X17)

14519-MGE-000

$5.32

COLLAR, TENSIONER

14521-MGE-010

$7.16

GUIDE, CAM CHAIN

14620-MGE-000

$55.00

PLATE, TENSIONER SETTING

14623-MBA-000

$5.14

BOLT, FLANGE (6X18)

90001-MZ8-U40

$1.72

BOLT, UBS (7X13)

90027-MY9-690

$1.72

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.80

WASHER, SEALING (6MM)

90488-425-000

$2.07

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

BOLT, SOCKET (6X20)

96600-06020-00

$1.17
