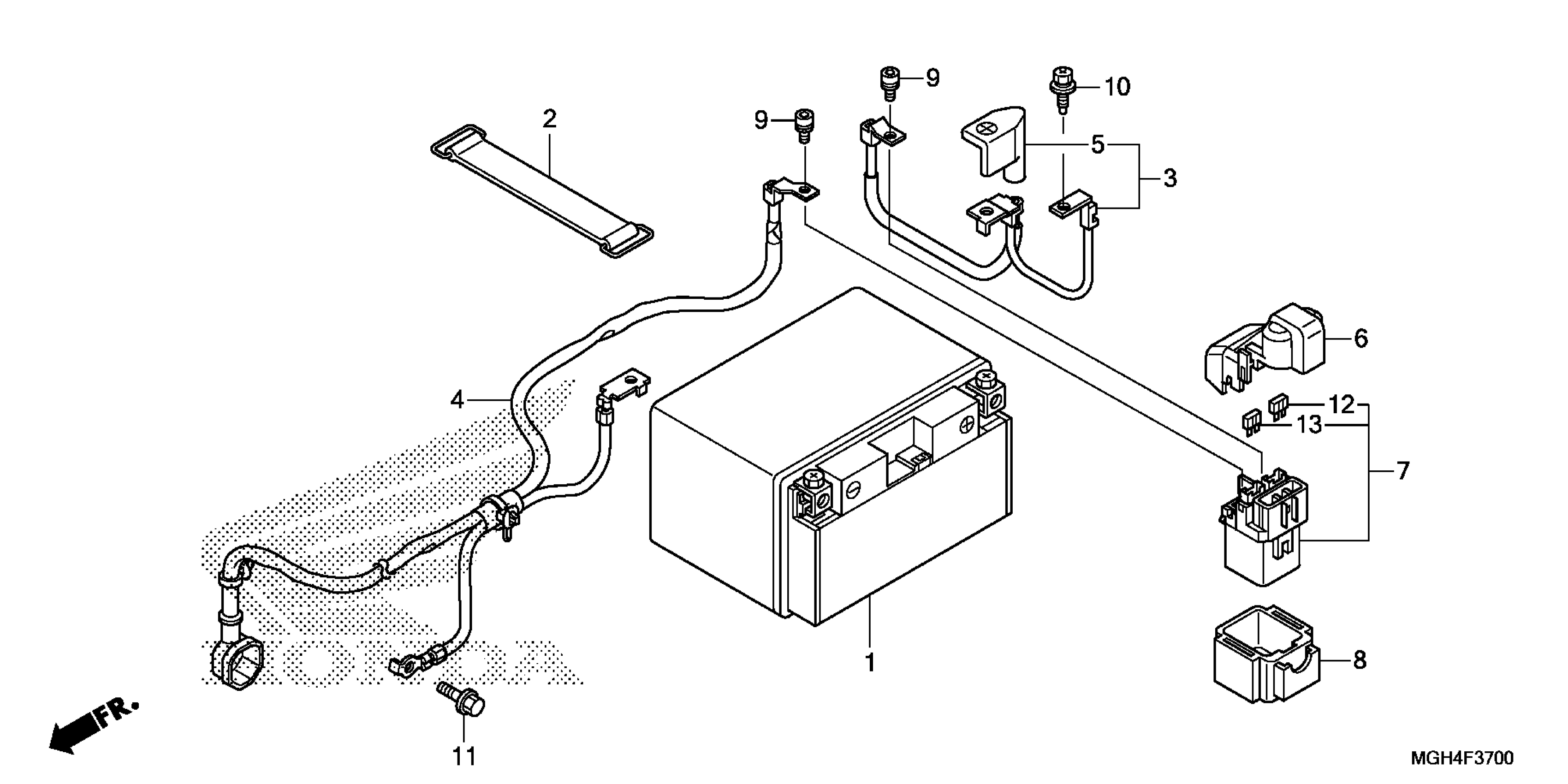

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 BATTERY Diagram

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D02AH.

31500-MCR-D03

$184.48

BAND, BATTERY

31501-MEE-000

$4.09

CABLE, STARTER BATTERY

32401-MGE-640

$40.41

CABLE, STARTER & GROUND

32410-MGE-640

$84.97

COVER, BATTERY TERMINAL

32411-MFL-D00

$4.78

COVER, STARTER MAGNETIC SWITCH

32416-MGE-640

$8.84

SWITCH ASSY., STARTER MAGNETIC

35850-MGE-640

$80.99

RUBBER, SHOCK

35856-MBG-003

$8.30

BOLT, SOCKET (5X9)

90111-MR5-000

$2.38

BOLT (5X13)

90114-SG0-003

$4.90

BOLT, FLANGE (6X14)

96300-06014-00

$0.86

FUSE, MINI (10A)

98200-41000

$1.20

FUSE, MINI (30A)

98200-43000

$1.59
