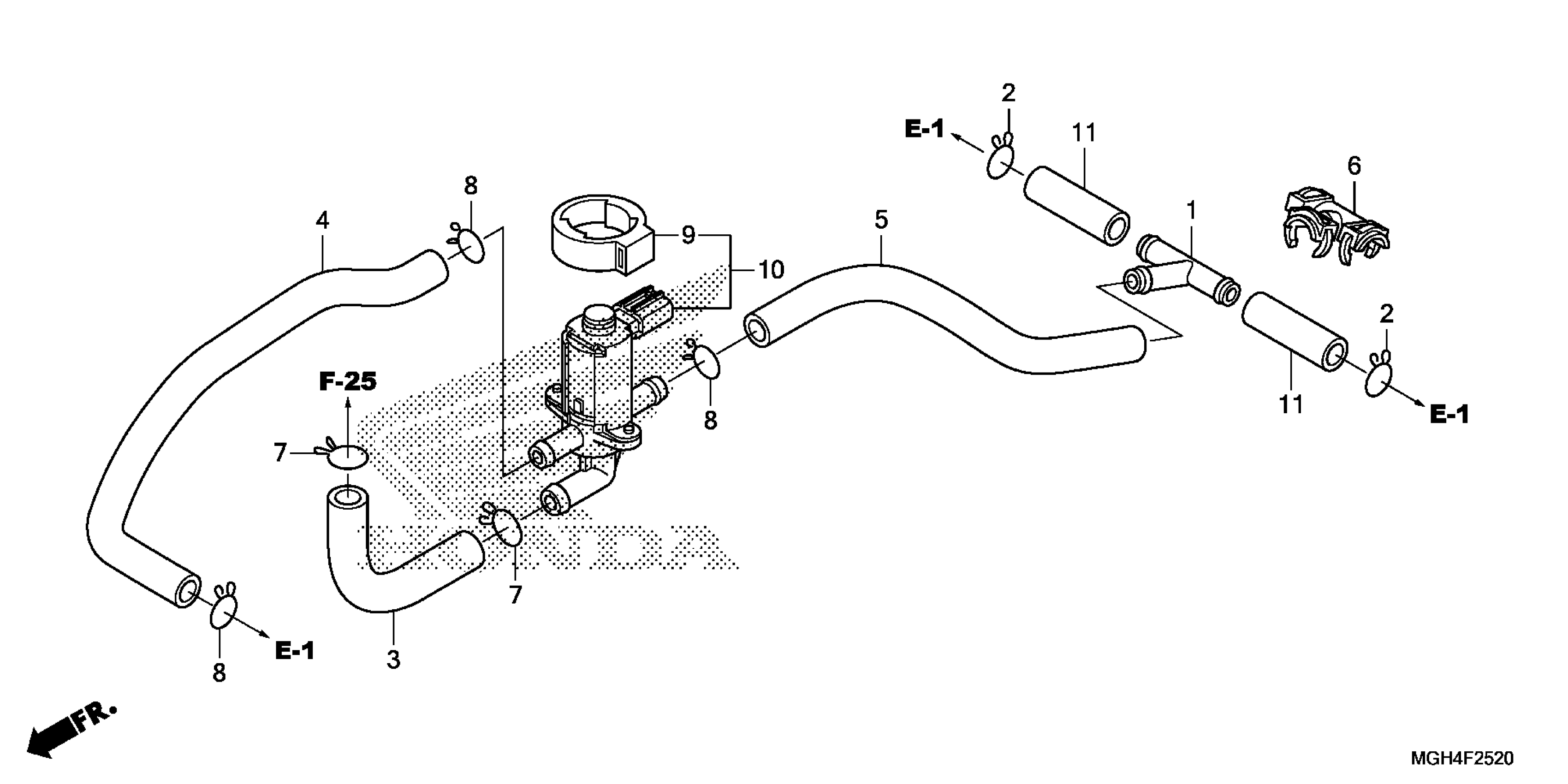

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 AIR INJECTION CONTROL VALVE Diagram

#

Description

Price

1

JOINT, BREATHER THREE WAY

15772-HA7-670

$17.84

2

CLIP A, BREATHER TUBE

17316-MN1-670

$2.33

3

TUBE, AIR SUCTION (UPPER)

17460-MGE-000

$4.72

4

TUBE, FR. AIR SUCTION

17465-MGE-000

$9.23

5

TUBE, RR. AIR SUCTION

17466-MGE-000

$6.57

6

GUARD, AIR INJECTION TUBE

17467-MGE-000

$5.64

7

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

8

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

9

SUSPENSION, SOLENOID VALVE

36172-MCA-A61

$3.26

10

VALVE ASSY., EX. AIR INJECTION

36450-MGE-641

$55.16

11

BULK HOSE, VACUUM (12X1000) (12X60)

95005-12001-20M

$34.11
