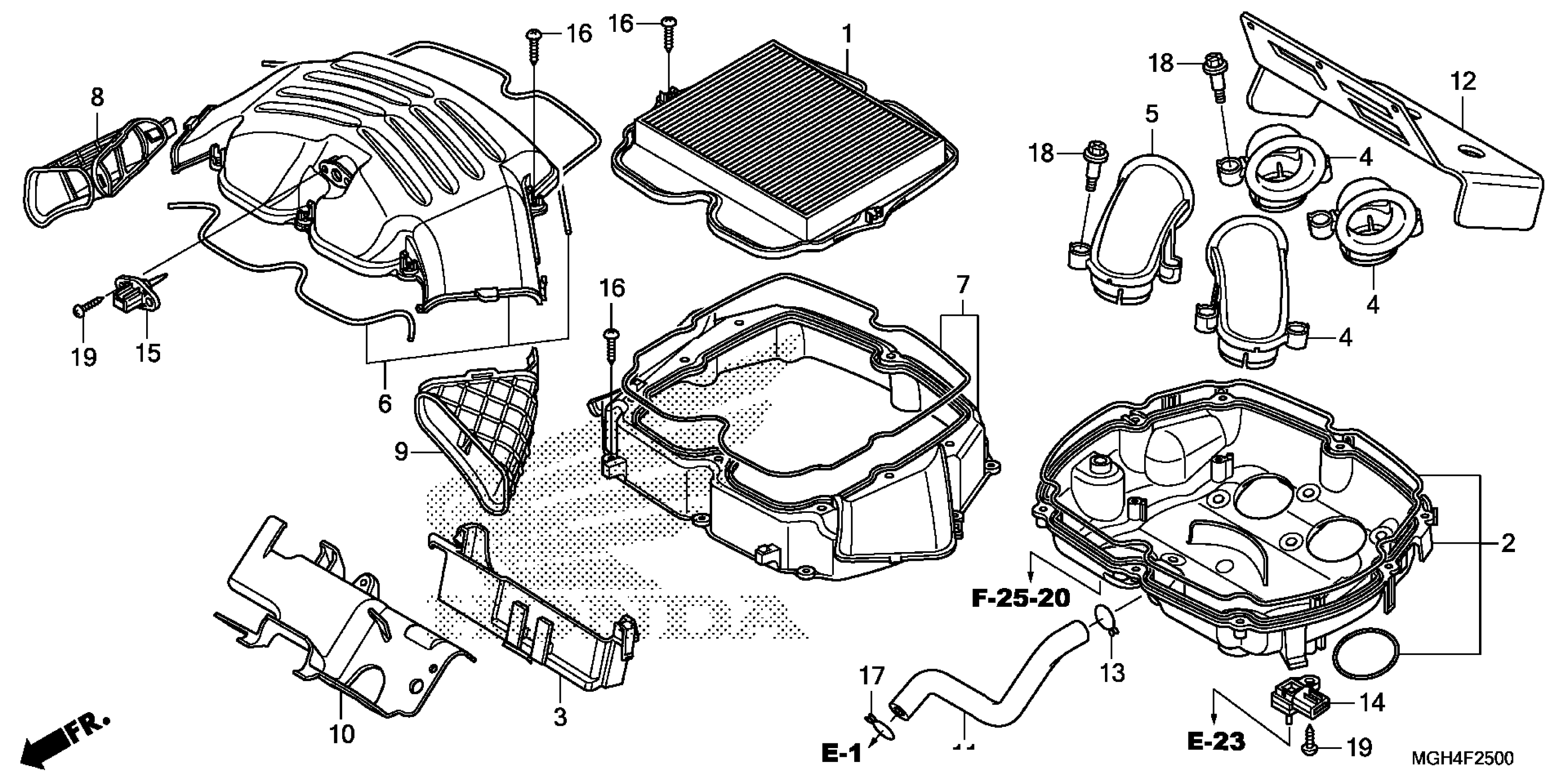

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17210-MGH-640

Unavailable

HOUSING, AIR CLEANER

17220-MGH-H20

$118.34

TRAY, FUEL INJECTION UNIT

17221-MGE-000

$10.07

FUNNEL, AIR (#1-#3)

17225-MGH-640

$20.97

FUNNEL, AIR (#4)

17226-MGH-640

$20.97

COVER, AIR CLEANER

17230-MGE-010

$113.76

HOUSING, AIR CLEANER MIDDLE

17240-MGE-000

$86.47

DUCT, R. AIR

17255-MGE-000

$39.62

DUCT, L. AIR

17265-MGE-000

$39.62

GUARD, FR. ENGINE HEAT

17290-MGE-000

Unavailable

TUBE, BREATHER

17551-MGE-000

$6.10

RUBBER, TANK (LOWER)

17560-MGE-000

$42.59

CLIP, SUB-TANK HOSE

17724-102-700

$4.18

SENSOR ASSY., MAP

37830-MEL-003

$118.68

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.93

SCREW, TAPPING (4X18) (DELTA PT)

90105-MFJ-D00

$1.90

CLIP, AIR HOSE (16MM)

90646-657-000

$8.12

SCREW, PAN (5MM)

91508-MGP-D00

$3.47

SCREW, TAPPING (5X20)

93901-25420

$0.82
