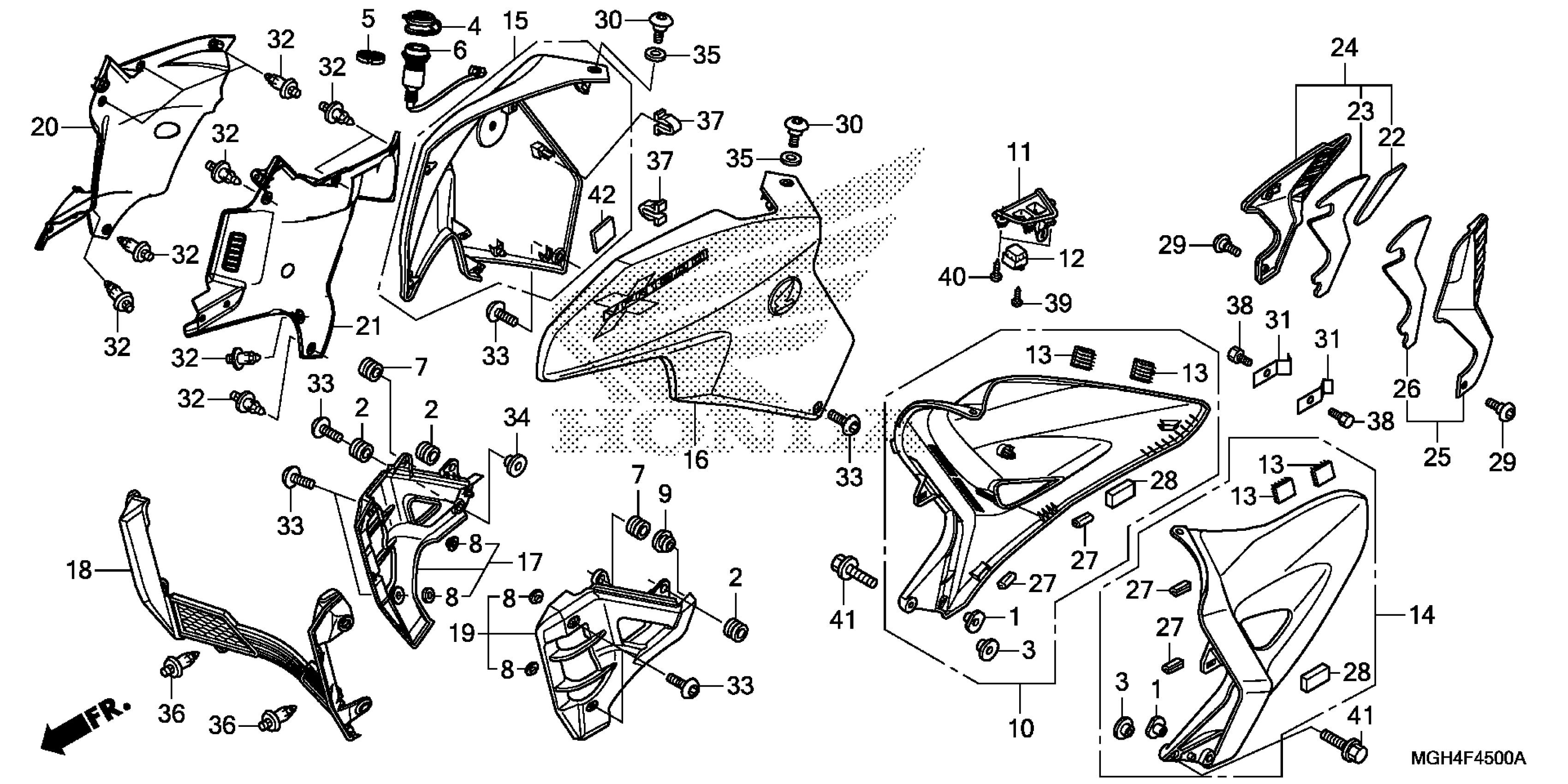

Honda VFR1200XAC (16) VFR1200X, JPN, VIN# JH2SC760-GK000001 TO JH2SC760-GK099999 MIDDLE COWL Diagram

#

Description
Price

1

NUT, AIR IN. DUCT

17345-MFJ-D00

$4.41

2

RUBBER, PROTECTOR MOUNTING

18357-MCG-000

$2.92

3

COLLAR, CLUTCH ROD

24124-750-A00

$4.51

4

CAP, ACCESSORY SOCKET

31651-MGH-H21

$16.49

5

NUT, RING

31652-MGH-H21

$3.26

6

SOCKET ASSY., ACCESSORY

39610-MGH-H21

$56.77

7

GROMMET, IGNITION COVER

53133-KR1-760

$4.41

8

COLLAR, FR. FENDER

61105-MA3-000

$3.80

9

RUBBER, TENSIONER ARM

61112-727-000

$3.18

10

COVER, R. KNEE

64200-MGH-640

$448.28

11

PLATE, TCS SWITCH

64227-MGH-640

$17.61

12

COVER, SWITCH

64228-MGH-640

$8.13

13

FASTENER B, DUAL LOCK (20X20)

64243-MEW-920

$2.97

14

COVER, L. KNEE

64250-MGH-640

$448.28

15

COWL, R. MIDDLE (TYPE1) (WL) | Pearl cosmic black NHA64P;

64301-MGH-A50ZA

$345.23

16

COWL SET, L. MIDDLE (TYPE1) (WL) | Pearl cosmic black NHA64P;

64350-MGH-A50ZA

$343.20

17

COVER, R. SHROUD

64415-MGH-640

$63.52

18

GRILLE, RADIATOR

64425-MGH-640

$46.39

19

COVER, L. SHROUD

64465-MGH-640

$66.41

20

PANEL, R. (INNER)

64610-MGH-H20

$19.03

21

PANEL, L. (INNER)

64660-MGH-H20

$19.90

22

MAT, R. PIVOT COVER

64704-MGE-300

$6.41

23

MAT, R. PIVOT COVER

64704-MGE-700

$8.18

24

COVER SET, R. PIVOT

64750-MGE-700

$27.97

25

COVER SET, L. PIVOT

64760-MGE-700

$27.97

26

MAT, L. PIVOT COVER

64804-MGE-700

$8.18

27

PROTECTOR, RUBBER

77212-MFJ-D00

$1.74

28

RUBBER, SIDE COVER

83609-KV3-300

$14.31

29

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.90

30

SCREW, SPECIAL (5X15) (SUS)

90112-MGH-640

$5.19

31

CLIP, PIVOT COVER

90115-MGE-000

$4.74

32

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

33

BOLT, SPECIAL (6X14) (SUS)

90119-MGH-640

$4.62

34

COLLAR, COWL SETTING (LOWER)

90122-463-770

$4.40

35

WASHER, NYLON (9MM)

90507-ZV1-000

$2.00

36

CLIP, MOLDING (LOWER)

90654-MCA-000

$2.48

37

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$1.49

38

BOLT, HEX. (5X10)

92101-05010-0A

$1.49

39

SCREW, TAPPING (3X16) (SOURCE: VINTAGE PARTS INC.)

93901-22420

$0.47

40

SCREW, TAPPING (4X10)

93903-24280

$1.49

41

BOLT, FLANGE (8X20)

96300-08020-00

$1.57

42

RUBBER B

17517-MFC-640

$3.92
