Description

Price

1

COUNTERSHAFT

23221-MGE-D00

$173.00

2

GEAR, COUNTERSHAFT FIRST (41T)

23421-MGE-J00

$150.67

3

GEAR, COUNTERSHAFT SECOND (35T)

23441-MGE-D50

$141.69

4

GEAR, COUNTERSHAFT THIRD (33T)

23461-MGE-D50

$144.36

5

COLLAR, SPLINE (30X11)

23462-MAT-000

$23.00

6

GEAR, COUNTERSHAFT FOURTH (32T)

23481-MGE-D50

$138.62

7

COLLAR (30X33X12.8)

23493-MGE-D00

$10.74

8

GEAR, COUNTERSHAFT FIFTH (32T)

23501-MGE-D00

$140.18

9

GEAR, COUNTERSHAFT SIXTH (31T)

23521-MGE-D00

$140.18

10

GEAR, FINAL DRIVE (41T)

23530-MGH-D20

$324.08

11

COTTER, COUNTERSHAFT

23545-MGE-000

$5.61

12

BOLT, SPECIAL (10MM)

90037-ME9-000

$7.25

13

RETAINER, COUNTERSHAFT

90402-MGE-010

$7.59

14

WASHER, THRUST (26MM)

90407-415-000

$5.64

15

WASHER (10.5X31.8X3.2)

90412-MGE-000

$3.61

16

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

17

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

18

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

19

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

20

RING, BEARING SETTING (56MM)

90601-MA6-000

$2.97

21

CIRCLIP (28MM)

90603-MN4-000

$4.11

22

CIRCLIP (30MM)

90604-MM5-000

$4.48

23

BEARING, NEEDLE (26X30X13)

91001-MCH-003

$11.07

24

BEARING, SPECIAL BALL (22X56X21.5)

91003-MGE-003

$30.39

25

BEARING, NEEDLE (22X38X19.3)

91025-MBT-F21

$29.48

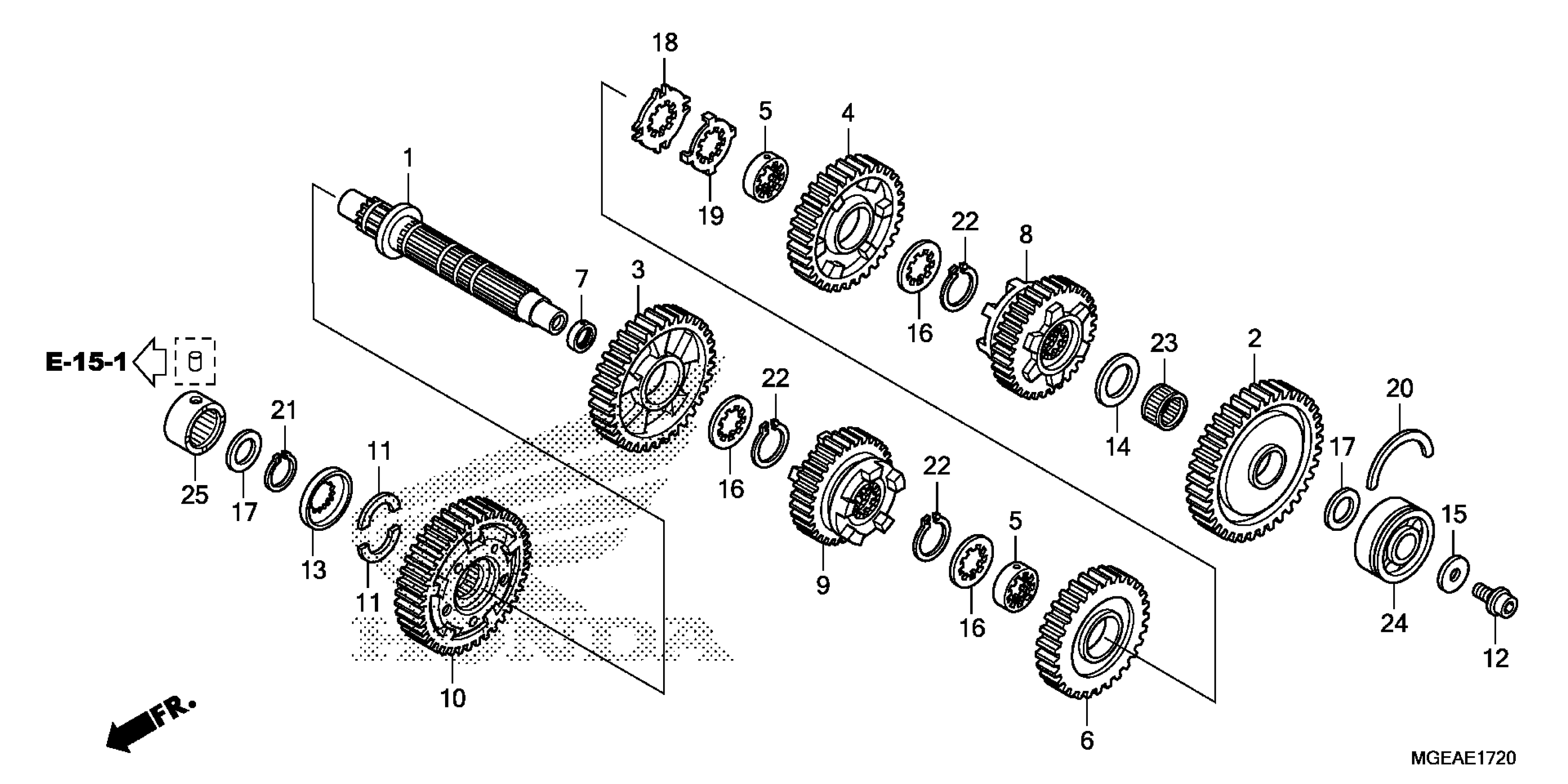

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 TRANSMISSION (COUNTERSHAFT) Diagram
