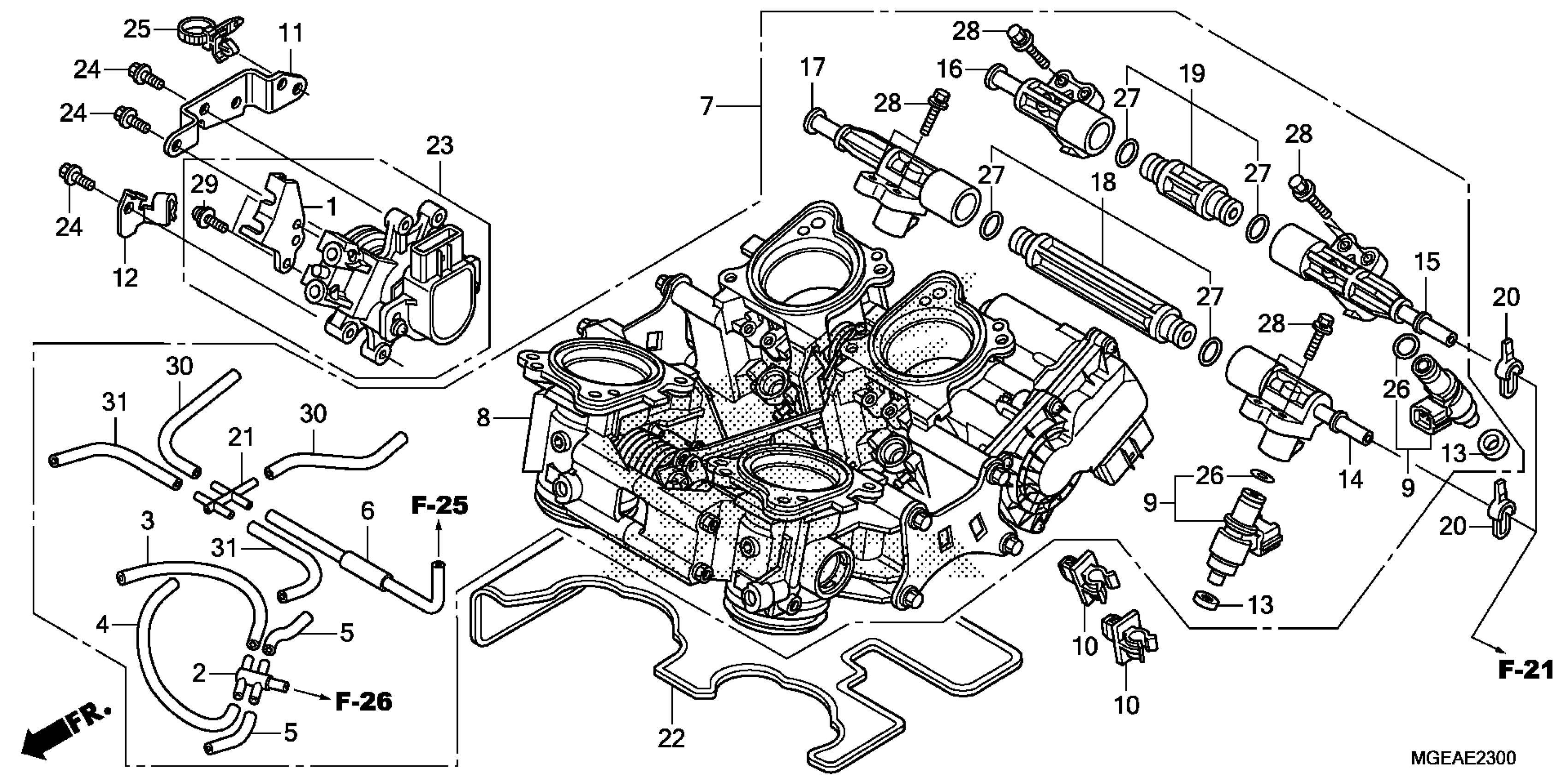

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 THROTTLE BODY Diagram

#

Description
Price

1

STAY, WIRE

16169-MFL-003

$13.91

2

T-JOINT

16180-ME5-761

$29.24

3

TUBE

16197-MCZ-771

$5.18

4

TUBE

16197-MFJ-L01

$6.01

5

TUBE (3.5X50)

16197-MGE-771

$6.07

6

TUBE (3.5X190)

16198-MGE-003

$5.34

7

BODY ASSY., THROTTLE (GNH0B A)

16400-MGE-773

$2,309.22

8

BODY ASSY., THROTTLE

16402-MGE-771

$1,980.59

9

INJECTOR ASSY., FUEL

16450-MFL-003

$124.34

10

CLIP, HOSE (D15.8)

16453-MGE-003

$2.16

11

STAY, APS UNIT

16454-MGE-000

$7.78

12

STAY, WATER HOSE CLAMP

16455-MGE-000

$4.69

13

SEAL RING, INJECTOR

16472-MCW-000

$2.21

14

PIPE, FUEL (#1)

16610-MGE-003

$28.31

15

PIPE, FUEL (#2)

16620-MGE-003

$29.59

16

PIPE, FUEL (#3)

16630-MGE-003

$28.34

17

PIPE, FUEL (#4)

16640-MGE-003

$28.34

18

JOINT SET, FR. FUEL

16650-MGE-003

$44.76

19

JOINT SET, RR. FUEL

16660-MGE-003

$37.34

20

DAMPER, CONNECTOR

16719-MFJ-D00

$2.80

21

JOINT, FIVE-WAY

17201-MCJ-003

$7.93

22

RUBBER, CYLINDER HEAD

17650-MGE-700

$46.24

23

SENSOR UNIT, ACCELERATOR POSITION

37971-MGE-672

$203.68

24

BOLT, FLANGE (6X12)

90012-GHB-610

$1.90

25

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.31

26

O-RING (7.8X1.9)

91301-P7A-004

$3.21

27

O-RING (7.47X3.6)

91301-PLC-000

$2.96

28

BOLT-WASHER (5X25)

93403-05025-00

$1.13

29

SCREW-WASHER (5X12)

93892-05012-00

$1.00

29

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.00

30

BULK HOSE, VACUUM (3.5X1000) (3.5X70)

95005-35001-20M

$11.17

31

BULK HOSE, VACUUM (3.5X1000) (3.5X90)

95005-35001-20M

$11.17
