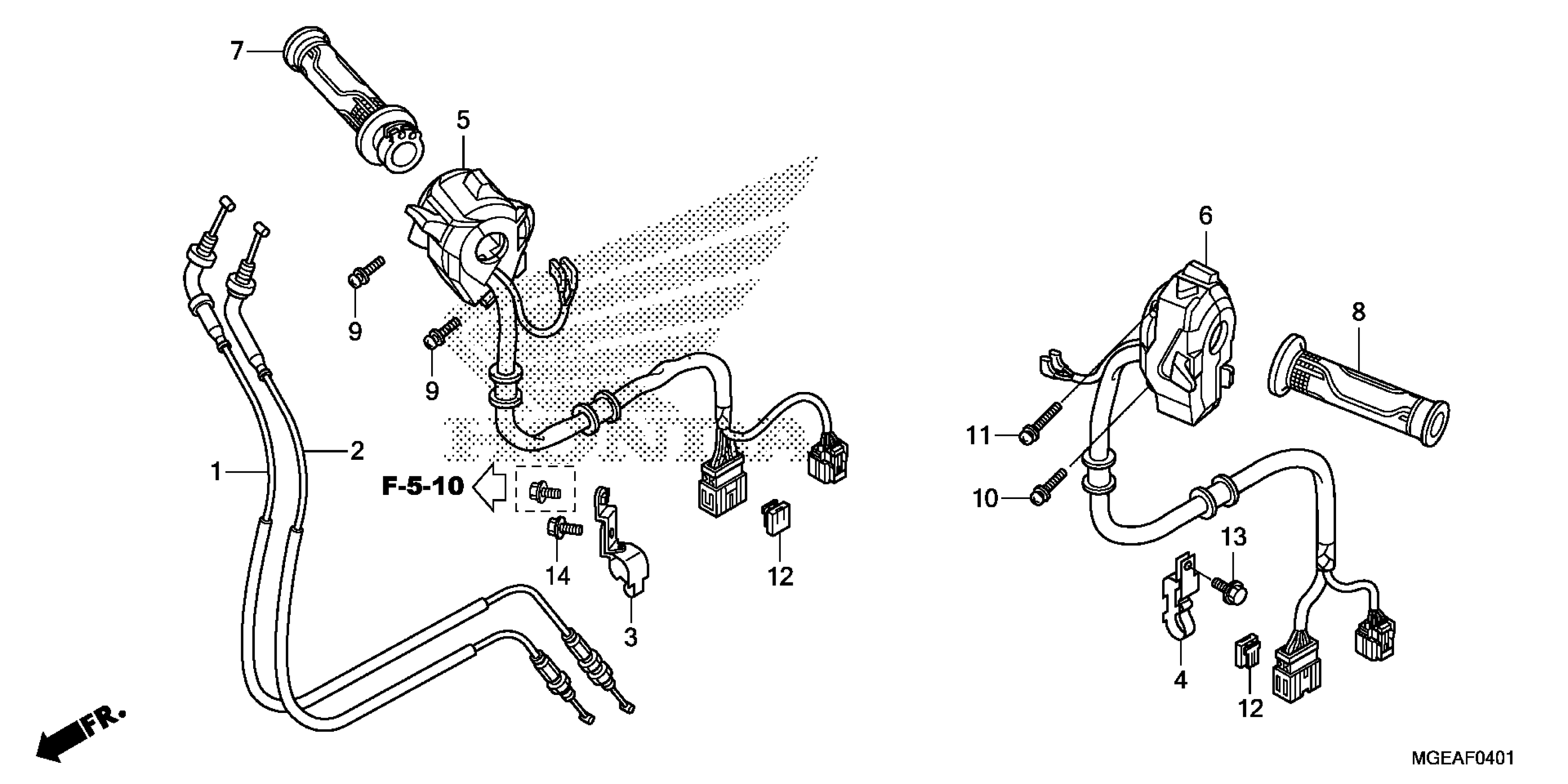

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 SWITCH + CABLE (2) Diagram

#

Description

Price

1

CABLE A, THROTTLE

17910-MGE-D00

$26.25

2

CABLE B, THROTTLE

17920-MGE-D00

$26.25

3

CLAMP, R. WIRE

35107-MGH-640

$6.52

4

CLAMP, L. WIRE

35108-MGE-640

$5.38

5

SWITCH ASSY. This part replaces 35130-MGE-D02.

35130-MGE-D03

$168.52

6

SWITCH ASSY. This part replaces 35200-MGE-A02.

35200-MGE-A03

$219.49

7

GRIP ASSY., THROTTLE This part replaces 53140-MGE-305.

53140-MGE-000

$29.48

8

GRIP, L. HANDLE This part replaces 53166-MGE-305.

53166-MGE-000

$17.74

9

SCREW-WASHER (5X20)

90507-MGE-640

$1.49

10

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

11

SCREW-WASHER (5X30)

90509-MGE-D00

$1.49

12

HOLDER, BRACKET (RED)

91554-SM4-003

$7.82

13

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

14

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
