Description

Price

1

RUBBER A, PROTECTOR

18320-196-000

$2.67

2

COLLAR, EX. MOUNTING

18422-MBG-610

$4.62

3

CAP & COIL, IGNITION

30700-MGE-641

$81.59

4

RECTIFIER ASSY., REGULATOR

31600-MGE-641

$410.31

5

COVER, REGULATOR RECTIFIER

31601-MGE-642

$9.51

6

PLATE, REGULATOR RECTIFIER

31604-MGE-000

$12.25

7

SUB-HARNESS, FR.

32103-MGE-D50

$138.75

8

SUB-HARNESS, INJECTOR

32112-MGE-640

$86.69

9

SENSOR, BANK ANGLE

35161-MGE-641

$138.08

10

COLLAR

35162-MN5-003

$7.25

11

GROMMET

35163-MN5-003

$3.15

12

HORN (HIGH)

38110-KCR-J01

$36.57

13

RELAY, TURN SIGNAL (MITSUBA)

38301-MEW-921

$48.10

14

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

15

RELAY ASSY., STARTER

38500-GC7-612

$50.16

16

RELAY, STARTER (MITSUBA)

38501-GN2-014

$49.65

17

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

18

SUSPENSION, STARTER RELAY (TATEISHI)

38506-751-701

$4.69

19

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.49

20

HOLDER, RELAY

38506-MBW-G91

$3.56

21

PGM-FI UNIT

38770-MGE-C42

$2,024.18

22

STAY, RELAY

50209-MGE-000

$10.43

23

GROMMET, OIL TUBE

55204-GJ2-000

$3.51

24

BOLT, SOCKET (5X8)

90101-MGE-640

$2.36

25

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

26

COLLAR, SIDE COVER SETTING

90522-KF0-000

$4.48

27

CLIP, WASHER MOUTH

91504-SD5-901

$4.39

28

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.03

29

BOLT-WASHER (4X20)

93401-04020-08

$1.49

30

BOLT-WASHER (6X20)

93404-06020-00

$1.55

31

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

32

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

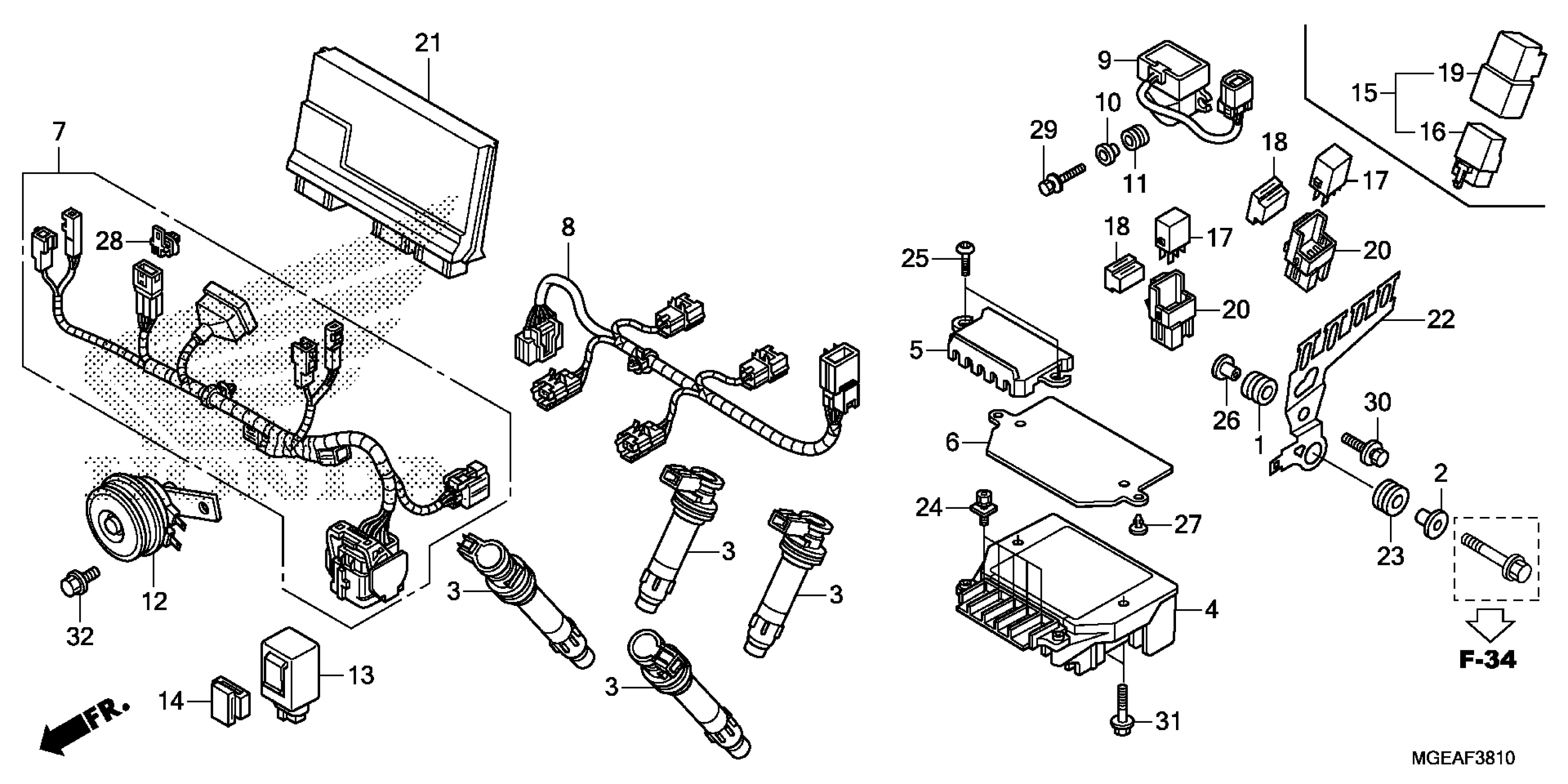

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 SUB HARNESS Diagram
