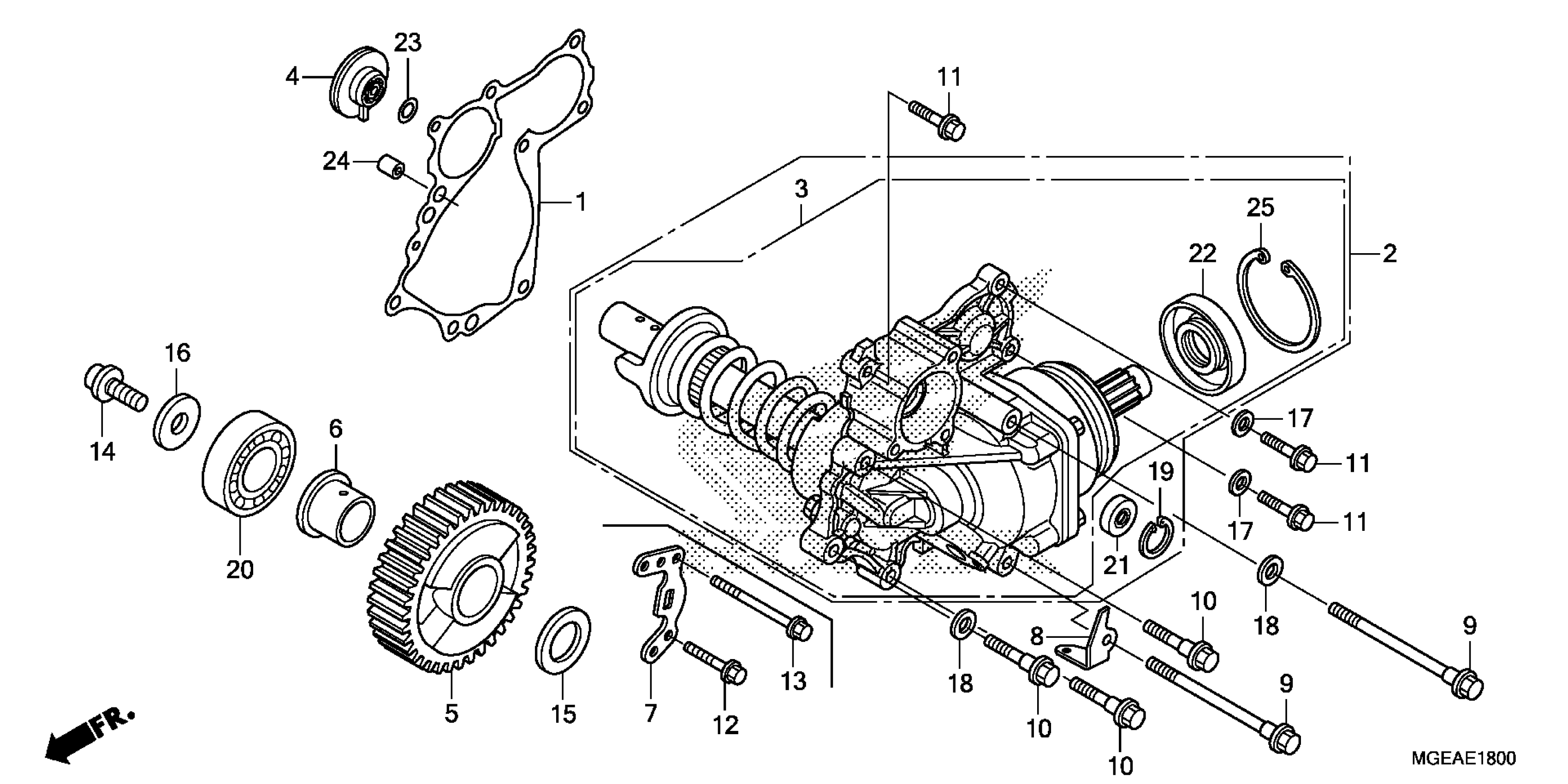

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 SIDE GEAR CASE Diagram

GASKET, SIDE GEAR CASE

11663-MGE-003

$21.03

CASE ASSY., SIDE GEAR

21100-MGE-D00

$2,333.71

GEAR, FINAL DRIVEN (39T)

23541-MGE-D00

$113.69

COLLAR (25X30X28.6)

23733-MGE-000

$29.79

STAY, HARNESS CLIP

32156-MGE-D01

$4.12

BOLT, FLANGE (8X95)

90005-MGE-010

$4.63

BOLT, UBS (8X40)

90006-MGE-010

$4.99

BOLT, FLANGE (6X28)

90016-GHB-680

$2.10

BOLT, FLANGE (6X35)

90016-GHB-700

$2.01

BOLT, FLANGE (6X65)

90016-GHB-760

$2.31

BOLT, SPECIAL (10MM)

90037-ME9-000

$6.69

WASHER, SPECIAL (25X40.4X1.2)

90403-MGE-000

$4.75

WASHER (10.5X36X4)

90414-MGE-D00

$2.42

WASHER, SEALING (6MM)

90441-706-000

$1.07

WASHER, SEALING (8MM)

90442-028-000

$1.63

BEARING, BALL (6305)

91005-MGE-003

$22.22

OIL SEAL (28X66X8)

91205-MGE-003

$10.10

PIN, DOWEL (10X12)

94302-10120

$1.32

CIRCLIP (INNER) (65MM)

94520-65120

$2.82
