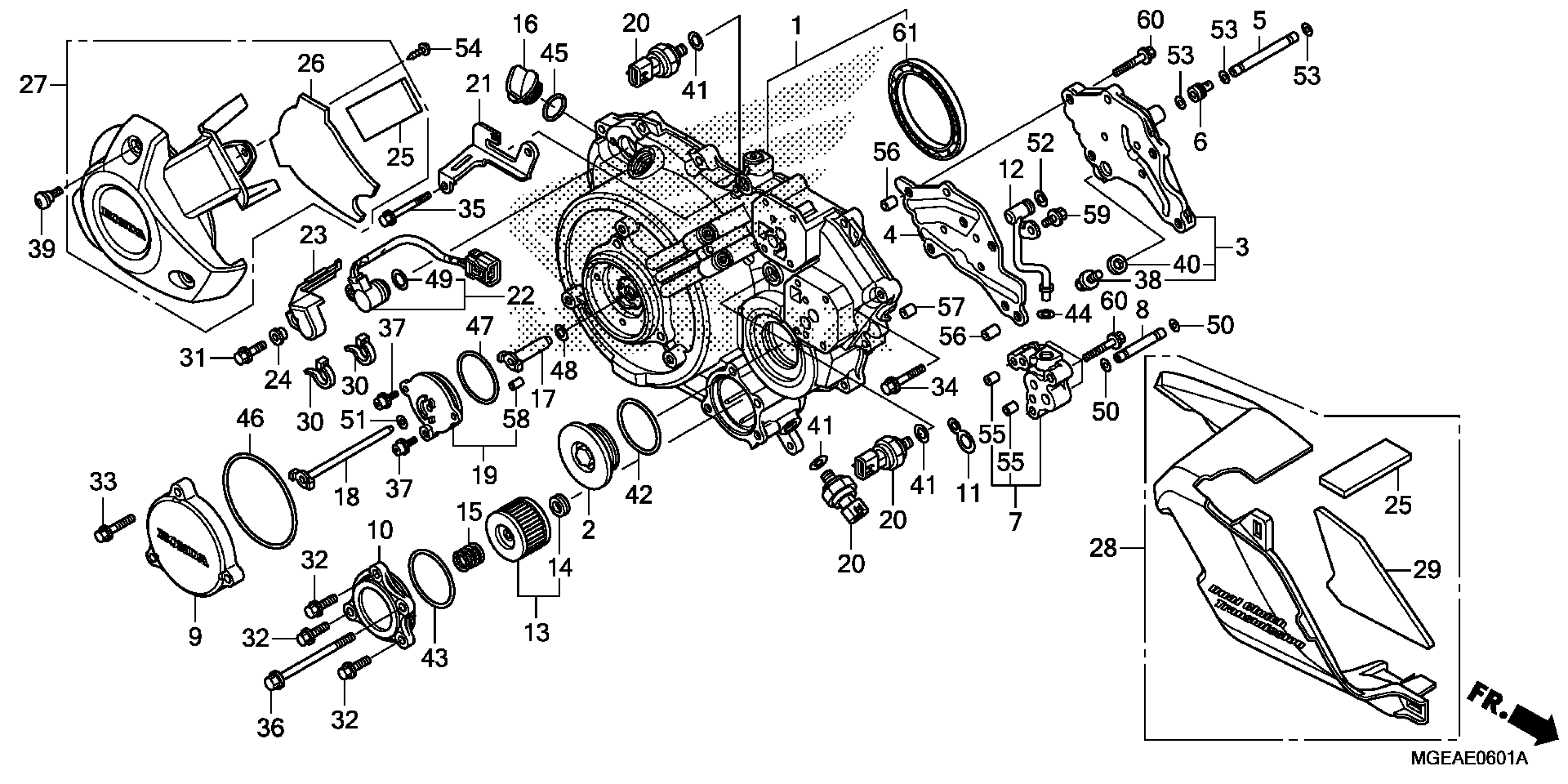

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 RIGHT CRANKCASE COVER (2) Diagram

#

Description
Price

1

COVER ASSY., R.

11300-MGE-D00

$386.69

2

CAP (45MM)

11332-MBZ-D00

$17.52

3

COVER, R. (INNER)

11360-MGE-D00

$48.31

4

PLATE, COVER (INNER)

11362-MGE-D01

$17.47

5

PIPE, COVER (INNER)

11366-MGE-D00

$15.59

6

ORIFICE (1.1MM)

11367-MGE-D00

$7.94

7

BASE, OIL PASSAGE PIPE

11370-MGE-D00

$47.66

8

PIPE, OIL FILTER

11373-MGE-D00

$24.12

9

CAP, R. COVER

11375-MGE-D00

$59.94

10

COVER, OIL FILTER

11376-MGE-D00

$78.99

11

SEAL, RUBBER

11379-MGE-D01

$5.65

12

PIPE, OIL PASSAGE

11390-MGE-D00

$87.88

13

ELEMENT, OIL FILTER

15412-MGE-D01

$9.27

14

RUBBER, FILTER

15413-MC8-000

Unavailable

15

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.05

16

CAP, OIL FILLER

15611-KA4-710

$13.22

17

PIPE A, FEED

22711-MGE-D00

$17.79

18

PIPE B, FEED

22712-MGE-D00

$21.66

19

GUIDE, FEED PIPE

22720-MGE-D00

$81.04

20

SENSOR ASSY., OIL PRESSURE

28660-RFH-013

$125.54

21

STAY, CONNECTOR

32158-MGE-D00

$5.09

22

SENSOR ASSY., ANGLE (40DEGREE)

38810-MGE-D01

$190.81

23

COVER, ANGLE SENSOR

38815-MGE-D00

$8.35

24

COLLAR, SENSOR COVER

38816-MGE-D00

$5.01

25

MAT A, ENGINE GUARD

64951-MGE-D00

$1.60

26

MAT B, ENGINE GUARD

64952-MGE-D00

$4.87

27

GUARD SET, R. ENGINE COVER *NH437M* (MAT RAY SILVER)

64960-MGE-D00ZA

$62.13

28

COVER SET, R. ENGINE (UPPER) *TBLACK* (WL) (BLACK)

83500-MGE-D50ZA

$27.84

29

MAT A, R. ENGINE COVER (UPPER)

83551-MGE-D00

$4.41

30

BAND, NYLON

83645-GG0-000

$1.79

31

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.66

32

BOLT, FLANGE (6X18)

90016-GHB-640

$1.84

33

BOLT, FLANGE (6X22)

90016-GHB-660

$2.01

34

BOLT, FLANGE (6X28)

90016-GHB-680

$2.10

35

BOLT, FLANGE (6X40)

90016-GHB-710

$1.99

36

BOLT, FLANGE (6X75)

90016-GHB-780

$2.31

37

BOLT, FLANGE SOCKET (5X14)

90089-KAS-900

$1.43

38

BOLT, SEALING (8MM)

90109-371-000

$2.50

39

BOLT, SPECIAL (6X15)

90114-MGE-D00

$1.90

40

WASHER, SEALING

90421-KM1-003

$2.03

41

O-RING (13X1.5)

91301-MEH-003

$1.50

42

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.74

43

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.31

44

O-RING (7.7X2.5)

91303-428-003

$1.75

45

O-RING (18X3) (ARAI)

91307-KF0-003

$2.71

46

O-RING (81X2.2)

91307-MGE-D01

$3.62

47

O-RING (46X1.9)

91308-MGE-D01

$2.41

48

O-RING (10.7X1.9)

91308-PY4-003

$1.25

49

O-RING (16.5X2.5)

91310-MGE-D01

$4.44

50

O-RING (9.8X2.4)

91311-MGE-D01

$1.63

51

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.63

52

O-RING (9.8X1.9) (ARAI)

91317-P4V-004

$2.76

53

O-RING (5.5X1.4)

91319-ME5-003

Unavailable

54

SCREW, TAPPING (4X10)

93903-24280

Unavailable

55

PIN, DOWEL (6X10)

94301-06100

$2.76

56

PIN, DOWEL (8X10)

94301-08100

$2.76

57

PIN, DOWEL (8X14)

94301-08140

$2.76

58

PIN, DOWEL (5X8) This part replaces 94302-05080.

94303-05080

$2.82

58

PIN, DOWEL (5X8)

94303-05080

$2.82

59

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

60

BOLT, FLANGE (6X30)

95701-06030-00

$1.88

61

BEARING, RADIAL BALL LLU (6810)

91011-MGE-D01

$50.50
