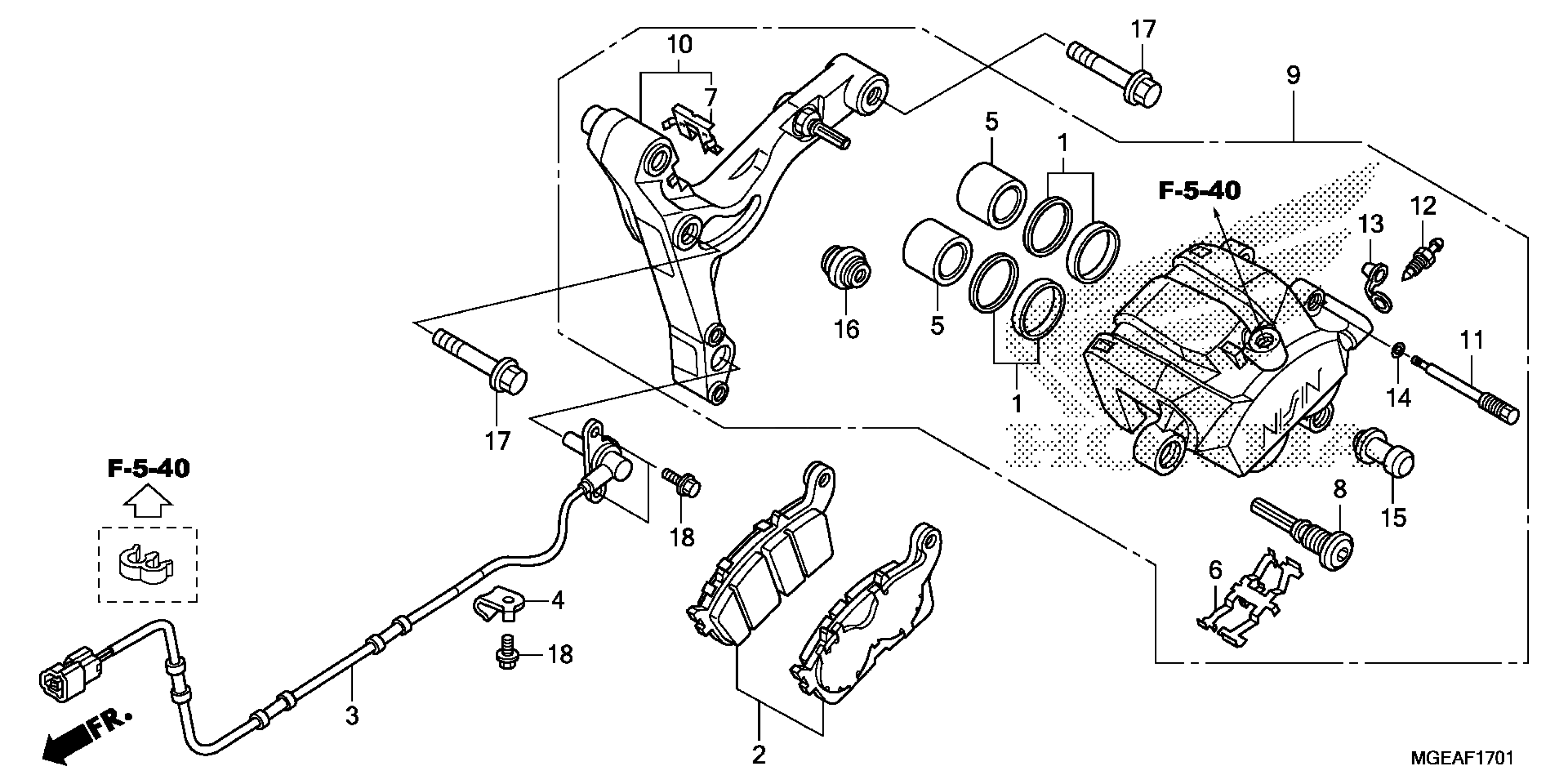

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 REAR BRAKE CALIPER (2) Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.00

PAD SET, RR. This part replaces 06435-MGE-D01.

06435-MGE-D02

$70.07

SENSOR, RR. WHEEL SPEED

38510-MGE-D00

$175.87

GUIDE, SENSOR WIRE

38515-MCT-910

$7.37

PISTON (27X31)

43107-MAJ-G41

$36.21

SPRING, PAD

43108-MGE-D01

$6.09

RETAINER

43112-MGE-006

$7.29

BOLT, PIN

43131-KW3-006

$9.48

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MGE-D01

$350.54

BRACKET SUB-ASSY., RR.

43190-MGE-D01

$152.74

PIN, HANGER

43215-KZ4-J41

$5.02

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

CAP, BLEEDER

43353-461-771

$4.83

RING, STOPPER

45111-MAJ-G41

$3.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

BOLT, FLANGE (10X45)

90132-MGE-000

$4.49

BOLT, FLANGE (6X10)

96001-06010-07

$1.50
