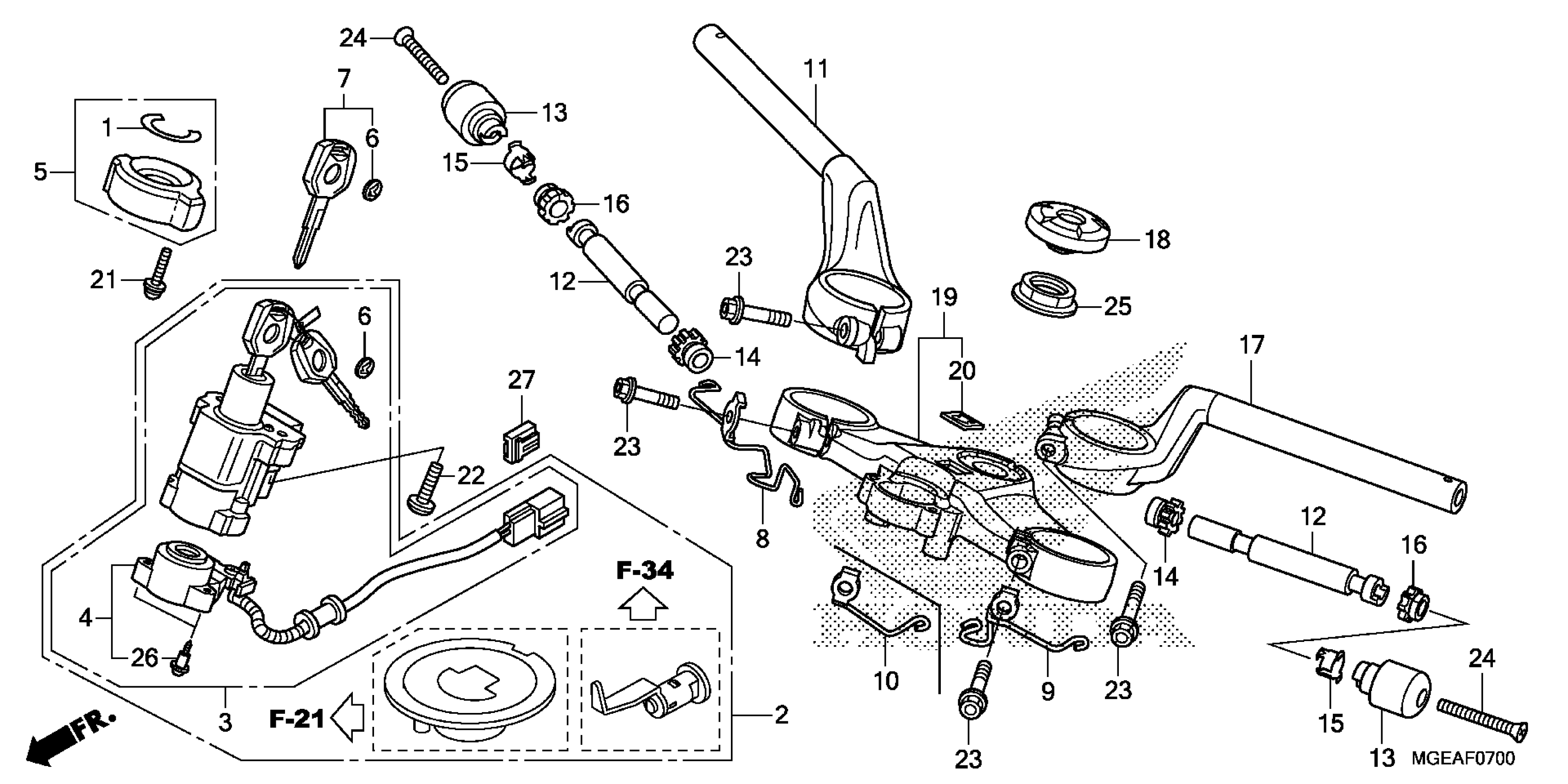

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

2

LOCK SET

35010-MGE-C30

$438.90

3

SWITCH ASSY., COMBINATION & LOCK

35100-MGE-671

$218.15

4

BASE, CONTACT

35101-MGE-641

$76.32

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.65

6

EMBLEM, KEY | (Optional).

35113-MGP-000

$4.22

7

KEY, BLANK | (Optional).

35121-MGE-C31

$48.32

8

GUIDE, R. FR. HOSE

45159-MGE-020

$18.12

10

GUIDE, L. FR. HOSE

45160-MGE-D00

$12.47

11

HANDLEBAR, R. (COO)

53100-MGE-307

$244.15

12

WEIGHT B, HANDLEBAR

53104-MV4-000

$23.72

13

WEIGHT, HANDLEBAR

53105-MEE-940

$16.37

14

RUBBER B, HANDLE WEIGHT

53107-MB6-630

$3.74

15

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$4.90

16

RUBBER B, HANDLE WEIGHT

53109-MV4-000

$2.47

17

HANDLEBAR, L. This part replaces 53150-MGE-306.

53150-MGE-D00

$211.49

18

CAP, STEERING NUT

53232-MGE-010

$5.35

19

BRIDGE, FORK TOP

53300-MGE-D40

$257.37

20

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

20

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$3.71

21

SCREW-WASHER (5X22)

90020-MBW-610

$2.37

22

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

23

BOLT, FLANGE (8X40)

90108-MR7-000

$4.83

24

SCREW, OVAL (6X60)

90191-MGE-000

$2.71

25

NUT, STEERING STEM

90304-MJ4-670

$14.15

26

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

27

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable
