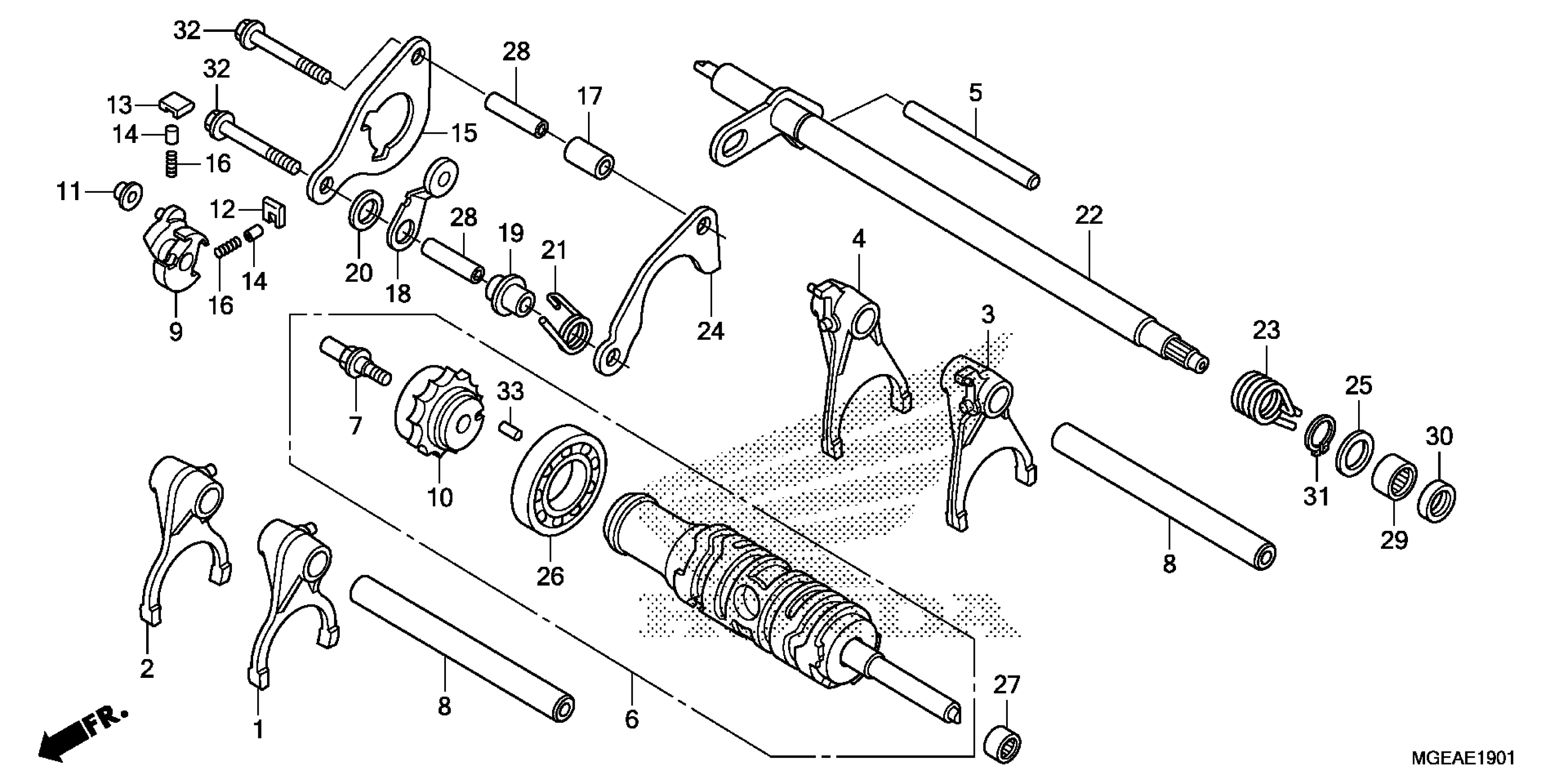

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 GEARSHIFT DRUM (2) Diagram

FORK, L. GEARSHIFT (MAIN)

24211-MGE-D00

$68.30

FORK, R. GEARSHIFT (MAIN)

24212-MGE-D00

$68.30

FORK, L. GEARSHIFT (COUNTER)

24213-MGE-D00

$68.30

FORK, R. GEARSHIFT (COUNTER)

24214-MGE-D00

$68.30

SHAFT, GEARSHIFT FORK

24241-KPP-900

$3.74

DRUM ASSY., GEARSHIFT | Use up to Engine SN 5191810

24300-MGE-D00

$167.62

DRUM ASSY., GEARSHIFT | Use from Engine SN 5191811

24300-MGE-D01

$166.07

PIN, SHIFTER | Use up to Engine SN 5191810

24315-MGE-D00

$8.69

PIN, SHIFTER | Use from Engine SN 5191811

24315-MGE-D01

$11.26

SHAFT, GEARSHIFT FORK

24321-MGE-000

$20.07

SHIFTER, DRUM

24321-MGE-D00

$45.07

CENTER, SHIFT DRUM

24322-MGE-D01

$38.30

COLLAR, SHIFTER

24322-MM4-000

$5.12

PAWL A, RATCHET

24324-KA3-711

$13.21

PAWL B, RATCHET

24325-KA3-711

$13.21

PLUNGER, PAWL

24326-KBH-901

$5.81

PLATE, CHANGE GUIDE

24328-MGE-D00

$5.15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

COLLAR, GUIDE PLATE DISTANCE

24329-KT8-000

$5.97

STOPPER, DRUM

24430-MGE-000

$16.03

COLLAR, DRUM STOPPER

24434-MGE-000

$5.38

COLLAR, DRUM STOPPER SIDE

24435-MGE-000

$2.59

SPRING, SHIFT DRUM STOPPER

24436-MGE-D00

$4.10

SPINDLE, GEARSHIFT

24610-MGE-D00

$87.72

SPRING, SHIFT RETURN

24651-MGE-D00

$7.13

PLATE, SHIFT DRUM BEARING SETTING

24655-MGE-D00

$4.84

WASHER (14MM)

90451-155-000

$3.78

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

BEARING, NEEDLE (12X18X12)

91056-HP5-601

$6.05

PIN, DOWEL (8X31.5)

91104-KT7-000

$5.11

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$11.31

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

ROLLER (4X8)

96220-40080

$1.49
