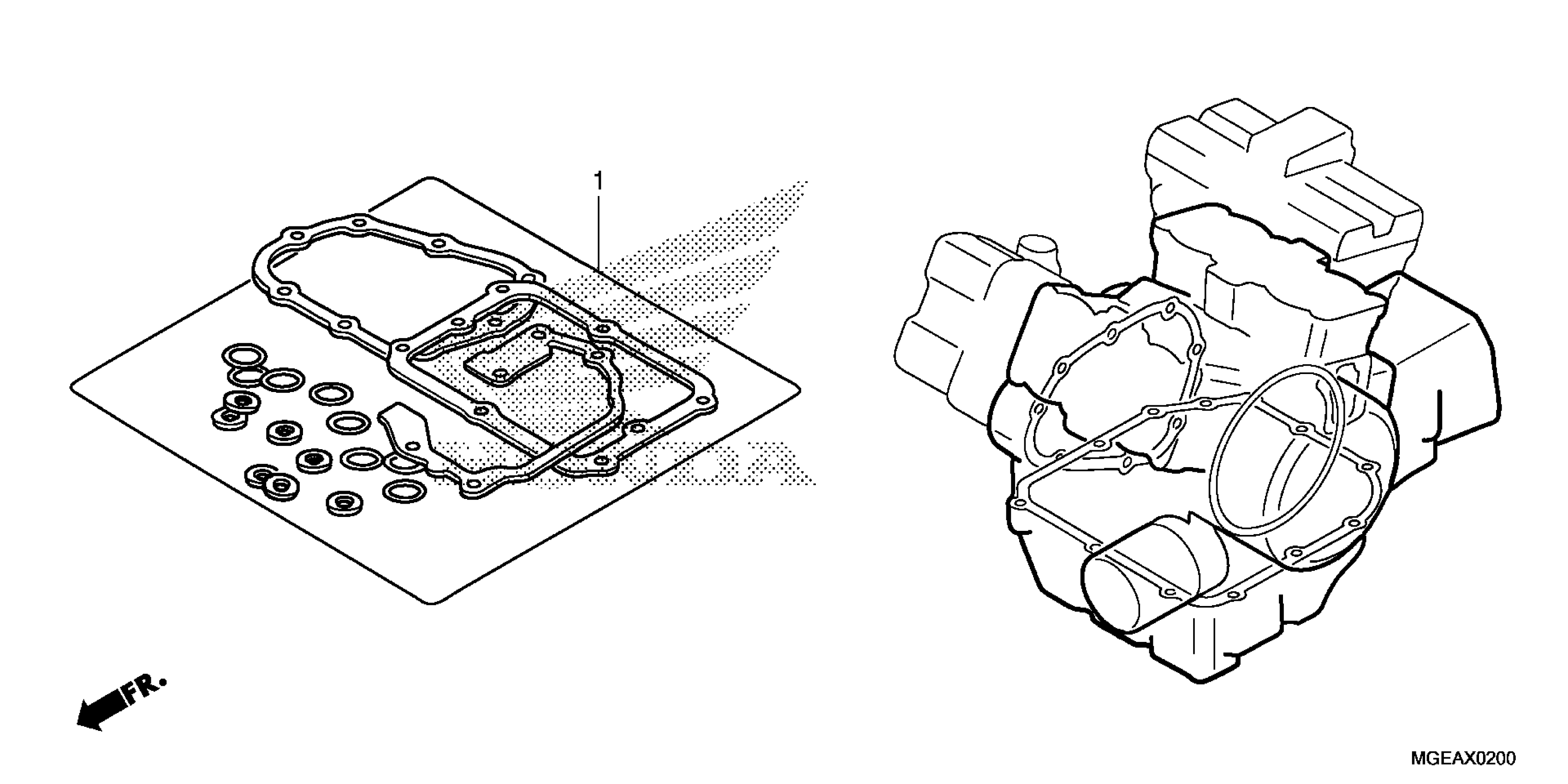

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 GASKET KIT B Diagram

#

Description
Price

1

O-RING (13X1.5)

91301-MEH-003

$1.50

1

GASKET, SIDE GEAR CASE

11663-MGE-003

$21.03

1

GASKET, OIL PUMP

15145-MGE-003

$10.10

1

GASKET, OIL STRAINER

15154-MAT-000

$5.87

1

GASKET, WATER JOINT

19064-MGE-000

$7.35

1

GASKET, WATER PUMP COVER

19226-MGE-000

$8.18

1

RUBBER, THERMOSTAT

19305-MCA-A00

$8.08

1

WASHER, SEALING (34.5MM)

90402-MFJ-D01

$6.90

1

WASHER, SEALING (6MM)

90441-706-000

$1.07

1

WASHER, SEALING (8MM)

90442-MR1-770

$2.10

1

WASHER, SEALING (8MM)

90442-028-000

$1.63

1

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

1

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.74

1

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.71

1

O-RING (13X3.0)

91302-MB6-830

$1.81

1

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.80

1

O-RING (18X3) (ARAI)

91307-KF0-003

$2.71

1

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$5.80

1

O-RING (24.4X3.1)

91312-MG7-003

$5.80

1

O-RING (13X3.0) This part replaces 91314-KE8-003.

91302-MB6-830

$1.81

1

O-RING (63.5X1.9)

91315-MGE-000

$3.13

1

O-RING (8.4X2.4)

91316-MJ8-003

$2.41

1

O-RING, OIL COOLER

91354-MCT-003

$7.08

1

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

1

GASKET KIT B

06112-MGH-D20

$199.75

1

SEAL, RUBBER

11379-MGE-D01

$5.65

1

GASKET This part replaces 11513-MGE-D01.

11513-MGE-D02

$5.15

1

GASKET This part replaces 11514-MGE-D01.

11514-MGE-D02

$3.84

1

GASKET A, LINEAR SOLENOID

28252-MGE-D01

$4.93

1

WASHER, FUEL JOINT

90418-ZG3-000

$3.10

1

WASHER, SEALING

90421-KM1-003

$2.03

1

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.80

1

WASHER, NEUTRAL

90443-MJ6-000

$1.78

1

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.80

1

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.31

1

O-RING (18.1X3.6)

91302-MAL-601

$3.36

1

O-RING (7.7X2.5)

91303-428-003

$1.75

1

O-RING (35.2X1.9)

91305-PY4-000

$3.26

1

O-RING (23.3X1.9)

91306-MGE-D01

$1.79

1

O-RING (81X2.2)

91307-MGE-D01

$3.62

1

O-RING (46X1.9)

91308-MGE-D01

$2.41

1

O-RING (10.7X1.9)

91308-PY4-003

$1.25

1

O-RING (16.5X2.5)

91310-MGE-D01

$4.44

1

O-RING (9.8X2.4)

91311-MGE-D01

$1.63

1

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.63

1

O-RING (9.8X1.9) (ARAI)

91317-P4V-004

$2.76

1

O-RING (5.5X1.4)

91319-ME5-003

Unavailable

1

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.65
