Description

Price

1

VALVE, RIM (BS)

42753-ML7-003

$12.74

1

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

2

AXLE, FR. WHEEL

44301-MFL-000

$77.87

3

COLLAR, FR. WHEEL SIDE

44312-MGE-000

$15.07

4

RING, FR. PULSER

44515-MGE-000

$47.23

5

COLLAR, FR. AXLE DISTANCE

44620-MGE-000

$20.10

6

WHEEL SUB-ASSY., FR. (COO)

44650-MGE-306

$997.95

7

TIRE, FR. (120/70ZR17) (M/C 58W) (BS)

44711-MGE-003

Unavailable

7

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP) This part replaces 44711-MGE-004.

44711-MGE-014

$253.42

7

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)

44711-MGE-014

$253.42

8

WEIGHT, BALANCE (10G) (TOHO ZINK)

44721-SEA-N02

$4.23

8

WEIGHT, BALANCE (20G) (TOHO ZINK)

44722-SEA-N02

$4.94

8

WEIGHT, BALANCE (30G) (TOHO ZINK)

44723-SEA-N02

$5.72

8

WEIGHT, BALANCE (40G) (TOHO ZINK)

44724-SEA-N02

$6.36

8

WEIGHT, BALANCE (5G) (TOHO ZINK)

44726-SEA-N02

$4.56

8

WEIGHT, BALANCE (15G) (TOHO ZINK)

44727-SEA-N02

$3.91

8

WEIGHT, BALANCE (25G) (TOHO ZINK)

44728-SEA-N02

$5.34

8

WEIGHT, BALANCE (35G) (TOHO ZINK)

44729-SEA-N02

$6.14

9

DISK, R. FR. BRAKE

45120-MGE-003

$636.00

10

DISK, L. FR. BRAKE

45220-MGE-003

$636.00

11

BOLT, BRAKE DISK (6X17)

90106-MFL-D20

$2.48

12

BOLT, TORX (5X10)

90131-KFK-630

$3.03

13

BOLT, FR. AXLE

90306-MFL-010

$10.46

14

BEARING, RADIAL BALL (6205UU)

91053-MCS-G01

$14.29

15

DUST SEAL (34X52X7)

91252-MGE-003

$8.74

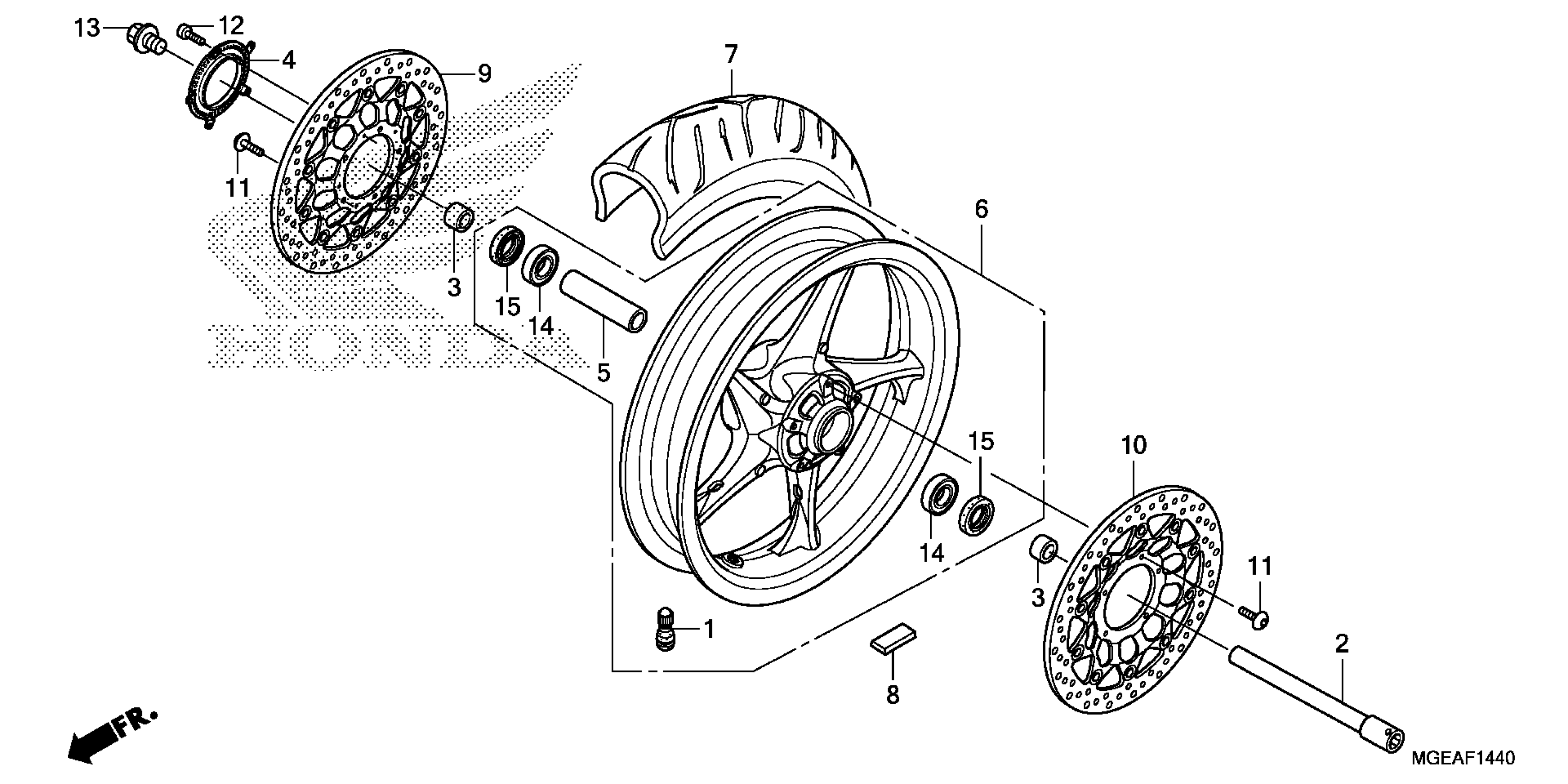

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 FRONT WHEEL Diagram
