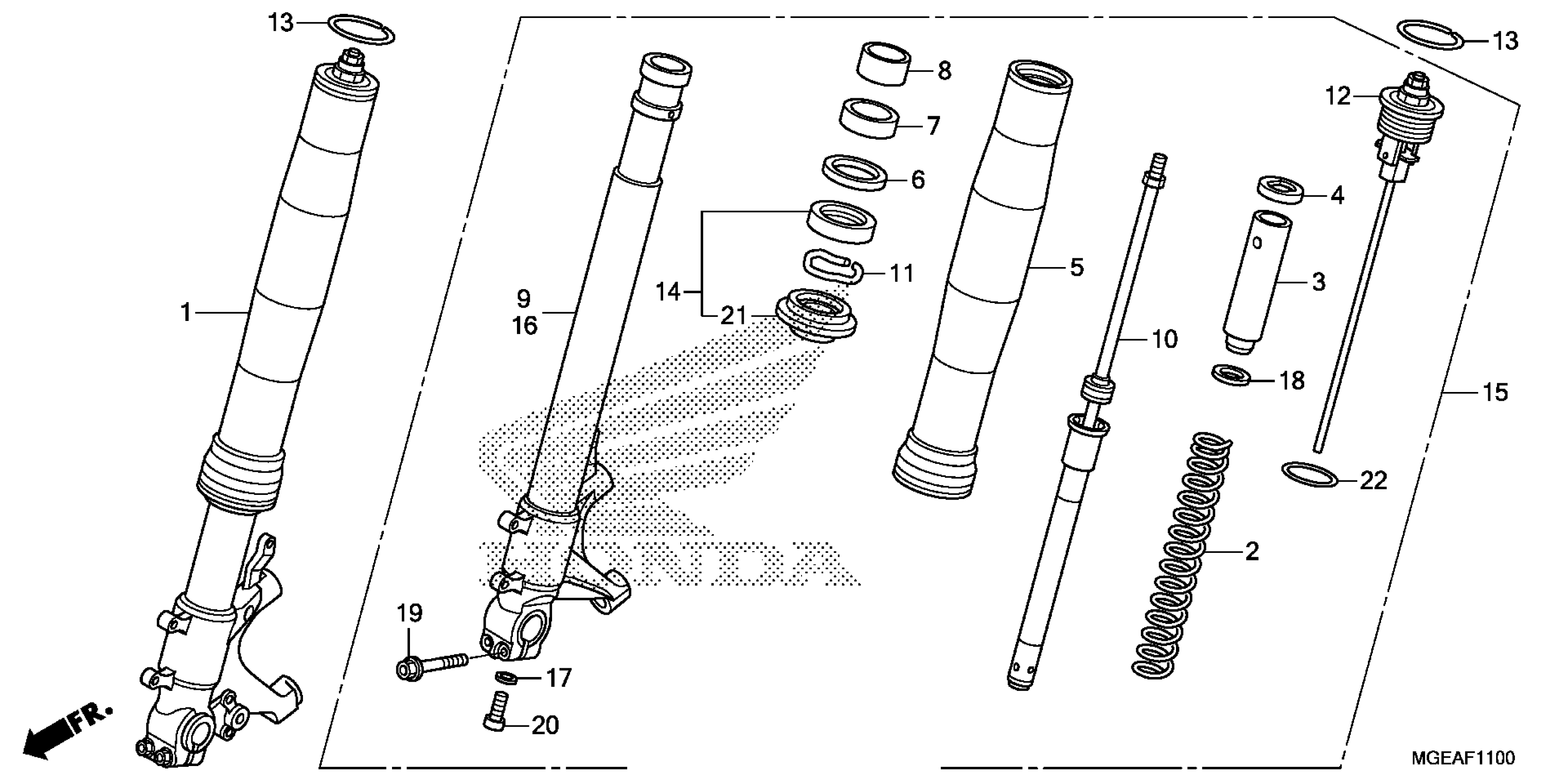

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 FRONT FORK Diagram

Description

Price

FORK ASSY., R. FR. (KYB)(COO)

51400-MGE-306

$1,327.00

SPRING, FR. FORK

51401-MGE-D01

$69.59

COLLAR, SPRING

51403-MGE-003

$17.05

SEAT, SPRING COLLAR

51406-MGE-003

$4.44

TUBE (OUTER)

51410-MGE-003

$590.02

RING, BACK-UP

51412-MGE-003

$8.21

BUSH, GUIDE

51414-MGE-003

$7.48

BUSH, SLIDER

51415-MGE-003

$8.85

PIPE, R. SLIDE

51425-MGE-003

$467.36

DAMPER, FR.

51430-MGE-003

$539.13

RING, OIL SEAL STOP

51447-KZ4-711

$5.04

BOLT, FR. FORK

51450-MGE-003

$169.38

RING, STOPPER

51455-MW4-003

$12.19

SEAL SET, FR. FORK

51490-MGE-003

$22.87

FORK ASSY., L. FR. (KYB)(COO)

51500-MGE-306

$1,327.00

PIPE, L. SLIDE

51525-MGE-003

$408.36

WASHER, OIL BOLT

52442-KA3-731

$2.34

WASHER

52442-MGE-003

$1.97

BOLT, FLANGE (8X40)

90107-MGE-000

$2.66

BOLT, SOCKET (10X25)

90116-KK0-004

$5.94

DUST SEAL

91254-MGE-003

$13.57

O-RING (39.7X3.5)

91258-KZ4-711

$9.05
