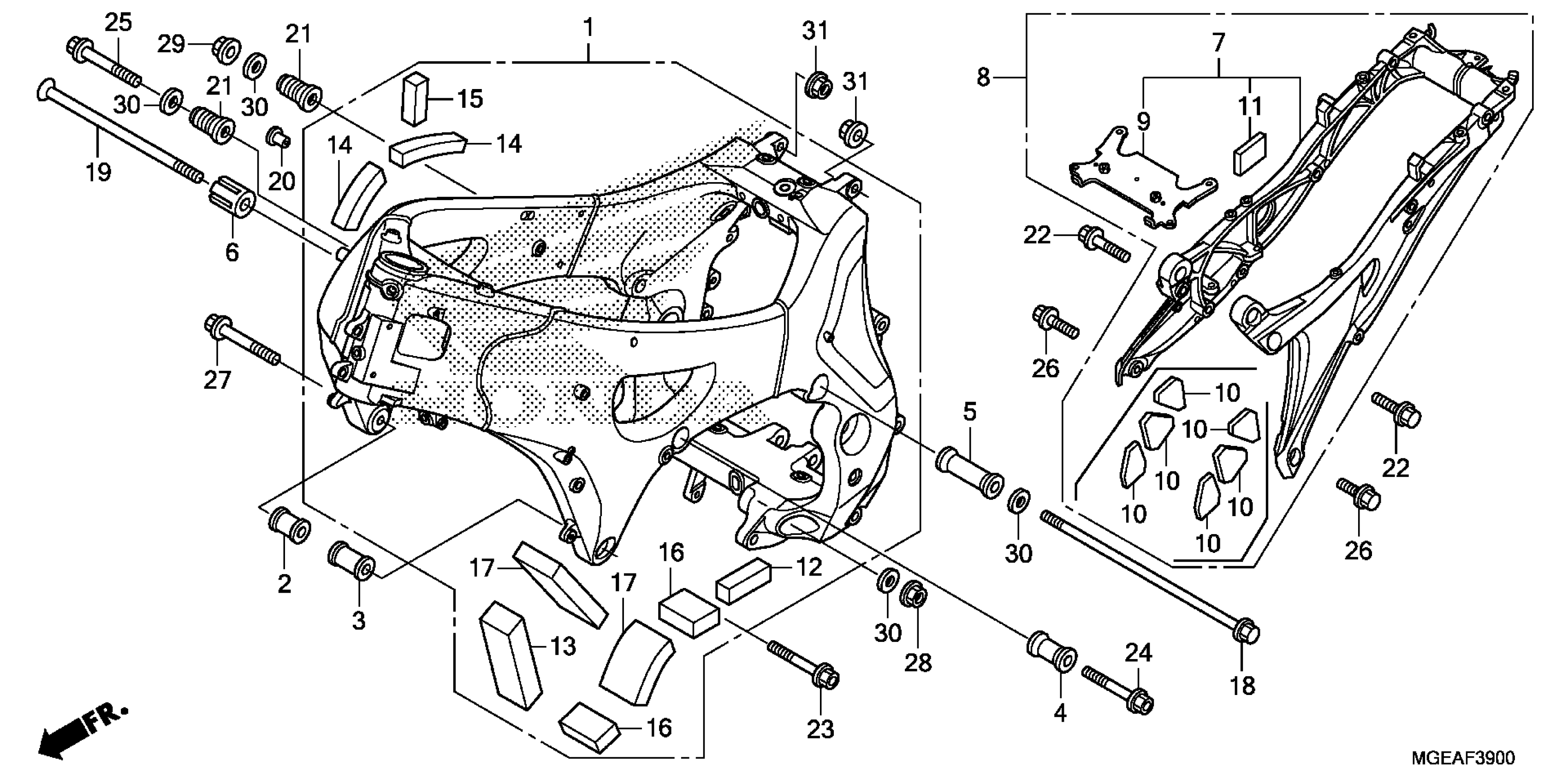

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 FRAME Diagram

#

Description
Price

1

FRAME SET *NH461M* (TEMPLE BLACK METALLIC)

50010-MGE-D40ZB

$4,307.61

2

COLLAR A, R. ENGINE HANGER

50191-MGE-000

$7.69

3

COLLAR A, L. ENGINE HANGER

50192-MGE-000

$9.64

4

COLLAR B, ENGINE HANGER

50193-MGE-000

$11.11

5

COLLAR C, ENGINE HANGER

50194-MGE-000

$18.66

6

COLLAR D, ENGINE HANGER

50195-MGE-000

$26.84

8

RAIL ASSY., SEAT *NH461M* (TEMPLE BLACK METALLIC)

50200-MGE-D03ZA

$717.41

9

PLATE, CENTER CROSS

50203-MGE-010

$50.07

10

MAT B, SEAT RAIL

50205-MGE-D00

$5.03

11

MAT F, SHOCK ABSORBER

64314-MCT-770

$2.67

12

MAT, TAILLIGHT

64470-GEY-300

$4.72

13

MAT A, L. COWL (LOWER)

64471-MCJ-670

$8.39

14

URETHANE A, R. HEAT GUARD

83530-MGE-000

$3.20

15

URETHANE B, R. HEAT GUARD

83550-MGE-000

$2.31

16

URETHANE A, L. HEAT GUARD

83630-MGE-000

$2.64

17

URETHANE B, L. HEAT GUARD

83635-MGE-000

$4.11

18

BOLT, FLANGE (12X344)

90101-MGE-000

$22.16

19

BOLT, SPECIAL (12X303)

90102-MGE-000

$28.07

20

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

21

BOLT, ADJUSTER (18X1.5X28.5)

90151-MGE-000

$13.11

22

BOLT, FLANGE (10X45)

90160-MGE-000

$4.85

23

BOLT, FLANGE (12X85)

90161-MGH-640

$15.25

24

BOLT, FLANGE (12X95)

90162-MGH-640

$15.92

25

BOLT, FLANGE (12X60)

90163-MGH-640

$13.89

26

BOLT, FLANGE (10X32)

90164-MGE-000

$4.49

27

BOLT, FLANGE (12X70)

90166-MGH-640

$12.54

28

NUT, FLANGE (12MM)

90371-MGE-000

$2.21

29

NUT, FLANGE (12MM)

90372-MGE-000

$2.21

30

WASHER, PLAIN (12MM)

90559-ZW1-000

$6.16

31

NUT, FLANGE (10MM)

94050-10000

$1.59
