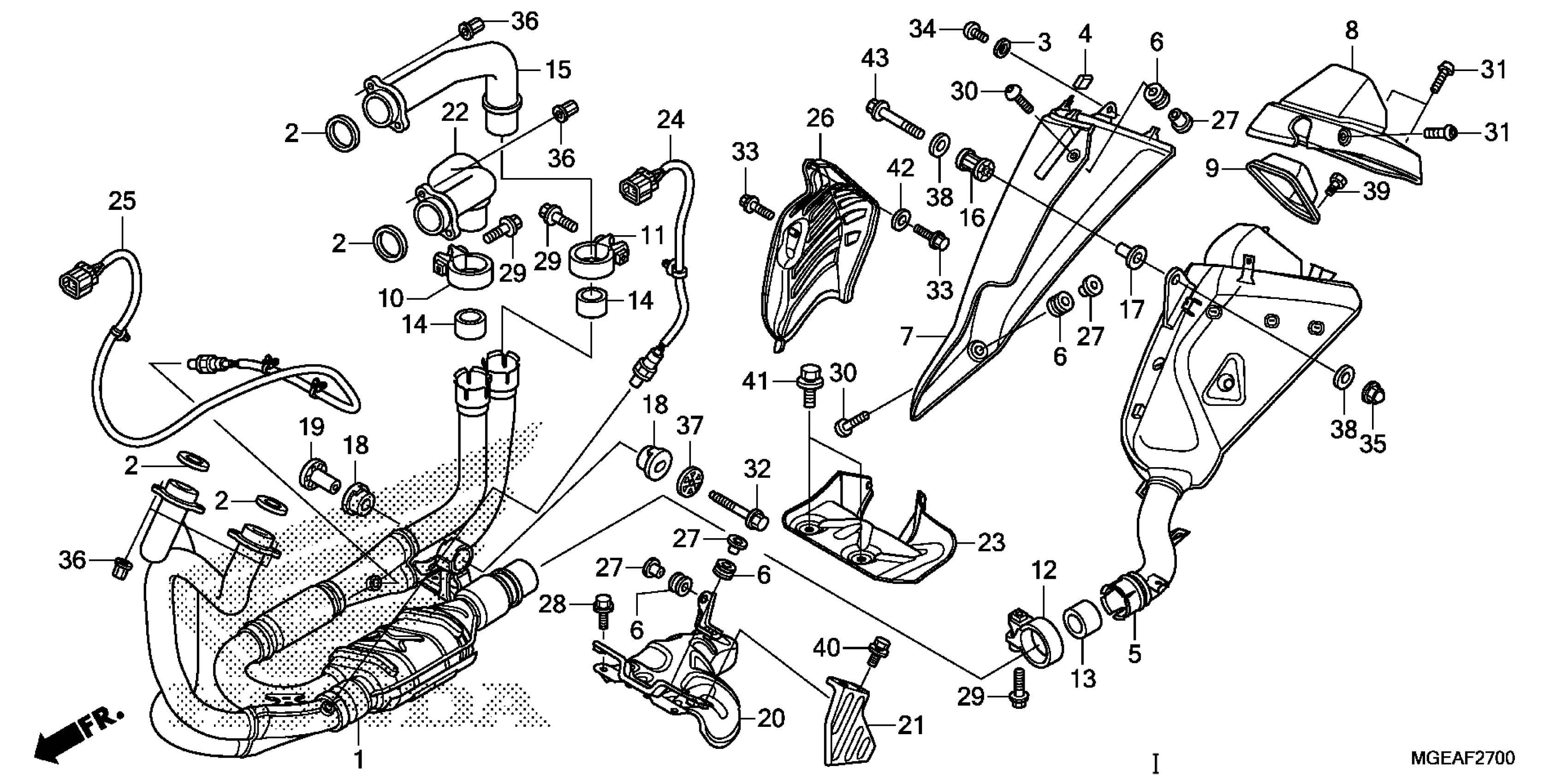

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 EXHAUST MUFFLER Diagram

#

Description
Price

1

PIPE, EX.

18150-MGE-D40

$2,702.05

2

GASKET, EX. PIPE

18291-MM5-860

$5.17

3

GASKET, PROTECTOR

18292-KBR-000

$3.45

4

RUBBER, PROTECTOR

18293-MN0-000

$2.13

5

MUFFLER (COO)

18310-MGE-315

$1,810.41

6

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

7

GUARD, MUFFLER (UPPER)

18350-MGE-003

$361.31

8

GUARD, RR. MUFFLER

18360-MGE-003

$276.51

9

COVER, VALVE

18370-MGE-003

$36.23

10

BAND, R. FR. MUFFLER (L. SIDE)

18373-413-000

$38.92

11

BAND, L. FR. MUFFLER (R. SIDE)

18374-413-000

$38.92

12

BAND, R. RR. MUFFLER

18375-MCF-D30

$29.57

12

BAND, R. RR. MUFFLER This part replaces 18375-MCF-003.

18375-MCF-D30

$29.57

13

GASKET, MUFFLER

18392-MCF-003

$16.39

14

GASKET, MUFFLER

18392-MK4-000

$13.66

15

PIPE, R. RR. EX.

18420-MGE-003

$187.84

16

RUBBER, MUFFLER MOUNTING

18421-KV3-950

$3.30

17

COLLAR, MUFFLER MOUNTING

18422-MA6-000

$7.91

18

RUBBER, EX. PIPE MOUNTING

18422-MGE-000

$18.95

19

COLLAR, EX. PIPE MOUNTING

18423-MGE-000

$9.51

20

PROTECTOR, EX. PIPE (UPPER)

18425-MGE-010

$112.97

21

SUB-PROTECTOR, EX. PIPE (UPPER)

18426-MGE-000

$10.92

22

PIPE, L. RR. EX.

18470-MGE-003

$187.84

23

PROTECTOR, EX. PIPE (LOWER)

18475-MGE-000

$66.90

24

SENSOR, OXYGEN (#1-4)

36531-MGE-641

$249.41

25

SENSOR, OXYGEN (#2-3)

36532-MGE-J01

$276.43

26

PROTECTOR, HEAT

50606-MGE-000

$105.97

27

COLLAR, HEAT GUARD SETTING

50609-MCW-D00

$2.48

28

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

29

BOLT, FLANGE (8X35)

90103-KCM-620

$1.57

30

SCREW, PAN (6X12)

90106-KRG-000

$2.18

31

BOLT, SPECIAL (5X10) (SUS)

90119-MGE-000

$4.04

32

BOLT, FLANGE (8X65)

90127-MGE-000

$3.75

33

BOLT,FLANGE SH 6X This part replaces 90128-MGE-000.

90101-MJN-A00

$1.90

34

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.80

35

NUT, CAP (8MM) This part replaces 90301-SA0-000.

90443-KF9-900

$4.27

35

NUT, CAP (8MM)

90443-KF9-900

$4.27

36

NUT, SPECIAL (6MM)

90304-HB3-771

$6.07

37

WASHER (8.5X38)

90505-MGE-000

$2.23

38

WASHER, PLAIN (8.5X22X2.3)

90509-642-000

$6.84

39

BOLT, HEX. (5X8)

92101-05008-4J

$2.16

40

BOLT-WASHER (5X10)

93401-05010-00

$1.49

41

BOLT-WASHER (6X12)

93404-06012-07

$1.55

41

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.55

42

WASHER, PLAIN (6MM)

94103-06000

$1.49

43

BOLT, FLANGE (8X45)

96300-08045-04

$1.51
