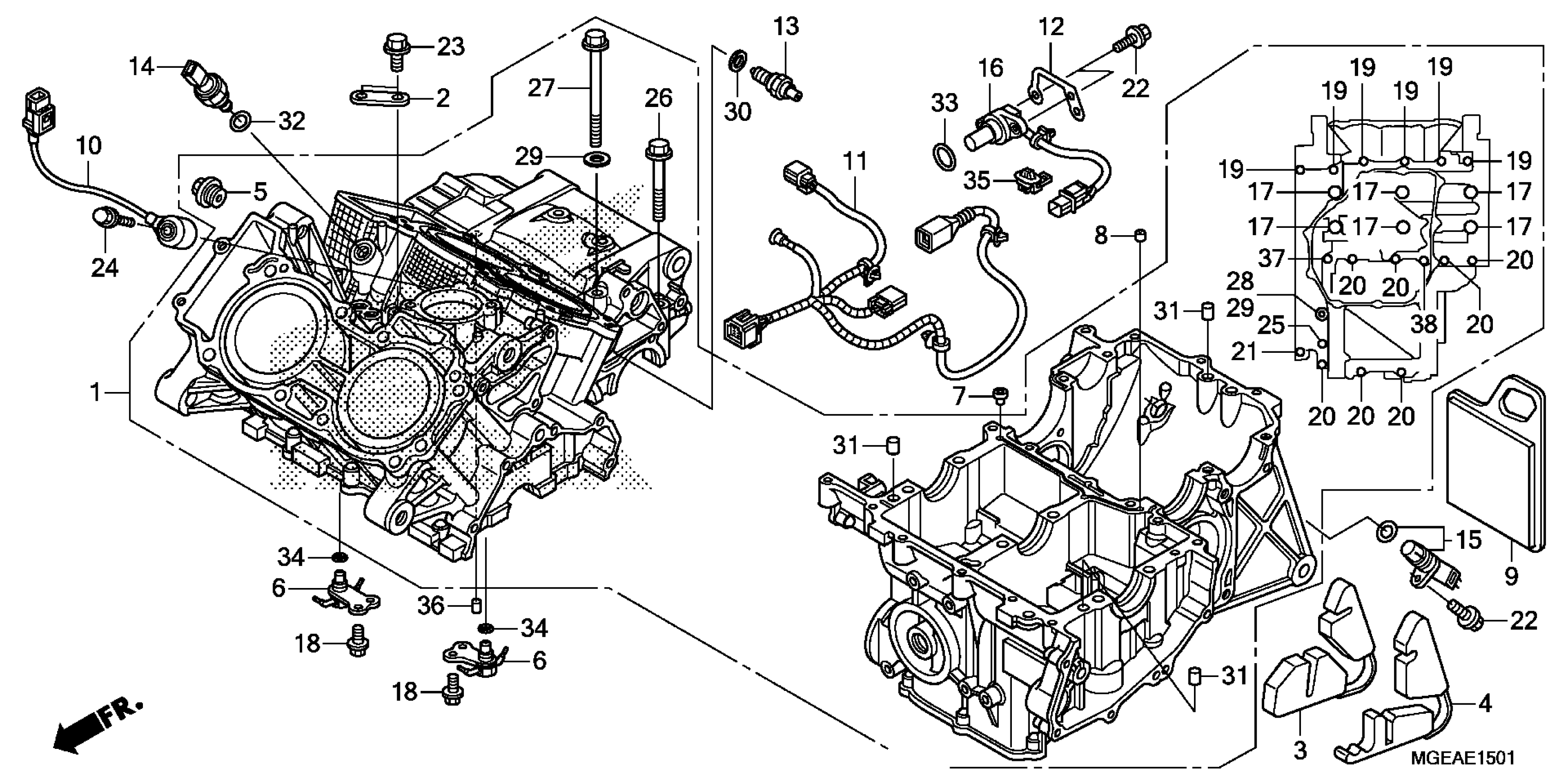

Honda VFR1200FDAC (14) MOTORCYCLE, JPN, VIN# JH2SC635-EK400001 CRANKCASE (2) Diagram

#

Description
Price

1

CRANKCASE SET

11000-MGH-D20

$3,554.91

2

BRIDGE, KNOCK SENSOR

11180-MGE-000

$3.75

3

RUBBER, R. INSERT

11205-MGE-D00

$16.82

4

RUBBER, L. INSERT

11206-MGE-D00

$15.71

5

JOINT, COVER (INNER)

11365-MGE-D00

$20.96

6

JET, OIL

15310-MGE-000

$34.88

7

ORIFICE A

15515-MGE-000

$5.10

8

ORIFICE C

15517-MGE-000

$4.88

9

RUBBER, RR. ENGINE

19150-MGE-D00

$12.47

10

SENSOR, KNOCK

30530-MGE-641

$56.16

11

SUB-HARNESS, ENGINE (2)

32113-MGE-D01

$95.10

12

STAY, CONNECTOR

32159-MGE-D00

$2.97

13

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$17.36

14

SENSOR, OIL PRESSURE

37260-MGE-641

$158.16

15

SENSOR ASSY., SPEED

37700-MGE-D01

$73.85

16

SENSOR ASSY., SPEED

37710-MGE-D02

$131.93

17

BOLT, FLANGE (9X109)

90001-MGE-003

$6.78

18

BOLT, KNOCK (6MM)

90011-MFJ-D00

$2.80

19

BOLT, FLANGE (7X40)

90018-MGE-000

$2.47

20

BOLT, FLANGE (6X28)

90033-MGE-000

$2.01

21

BOLT, FLANGE (6X35)

90034-MGE-000

$2.01

22

BOLT, FLANGE (6X16)

90036-MGE-D00

$2.16

23

BOLT, FLANGE (8X14)

90061-MGE-000

$2.16

24

BOLT, FLANGE (8X30)

90062-MGE-000

$2.47

25

BOLT, FLANGE (8X40)

90063-MGE-000

$2.47

26

BOLT, FLANGE (8X70)

90064-MGE-000

$3.09

27

BOLT, FLANGE (8X120)

90065-MGE-010

$4.76

28

BOLT, FLANGE (8X125)

90066-MGE-010

$4.76

29

WASHER, SEALING (8MM)

90442-MR1-770

$2.10

30

WASHER, NEUTRAL

90443-MJ6-000

$1.78

31

PIN, DOWEL (10X16)

90701-MV9-670

$4.10

32

O-RING (13X1.5)

91301-MEH-003

$1.50

33

O-RING (18.1X3.6)

91302-MAL-601

$3.36

34

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.80

35

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.52

36

PIN B, DOWEL (8X10)

94302-08100

$2.62

37

BOLT, FLANGE (8X65)

95701-08065-00

$1.59

38

BOLT, FLANGE (8X110)

95701-08110-00

$2.66
