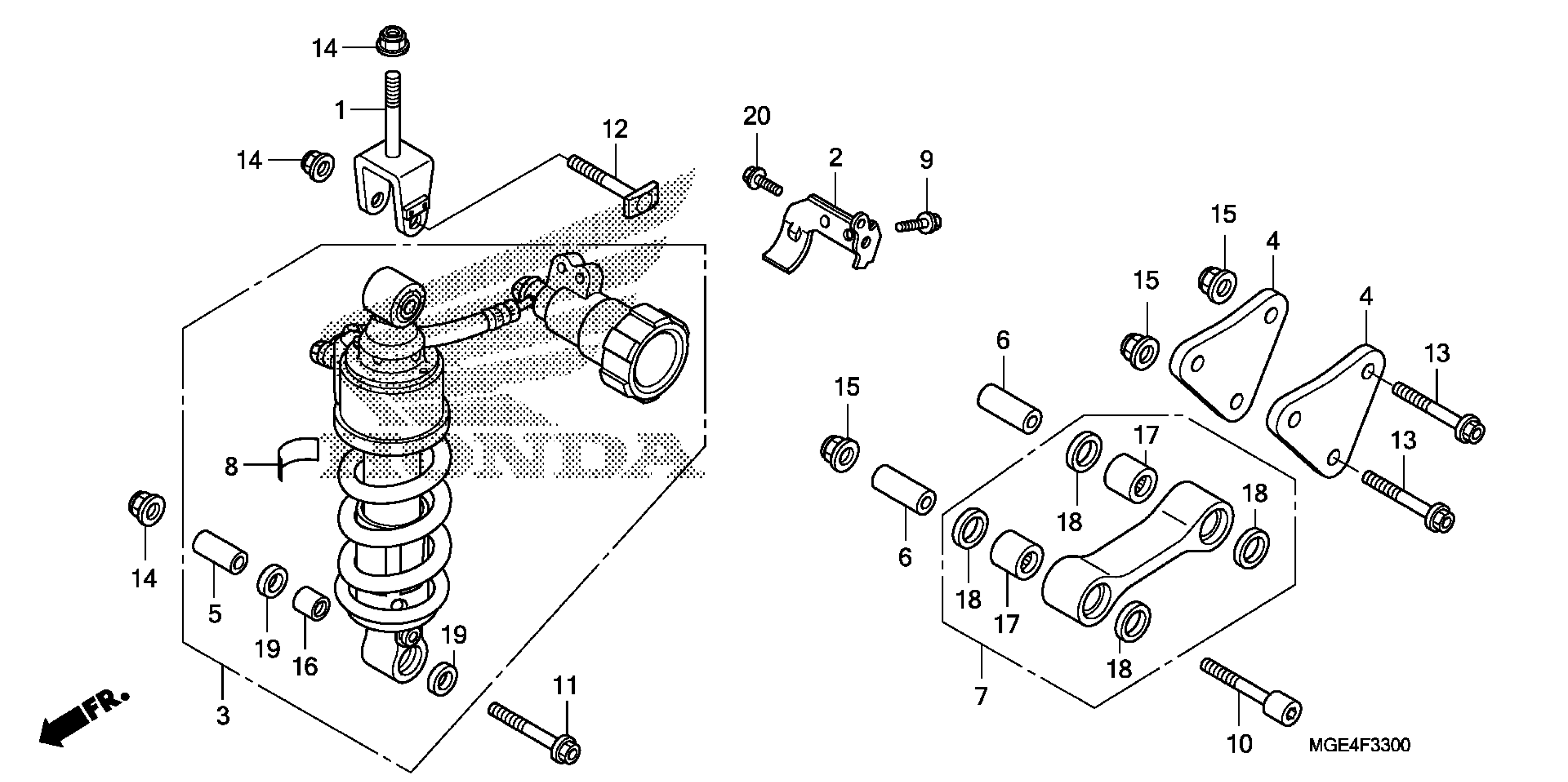

Honda VFR1200FDAC (13) VFR1200FD, JPN, VIN# JH2SC635-DK300001 REAR SHOCK ABSORBER Diagram

BRACKET, RR. CUSHION

50230-MGE-000

$17.64

STAY, PRELOAD ADJUSTING

50770-MGE-010

$5.87

CUSHION ASSY., RR. (COO)(KYB) This part replaces 52400-MGE-316.

52400-MGE-326

$1,391.90

PLATE, CUSHION ARM

52461-MGE-000

$36.16

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$11.67

COLLAR, CUSHION ARM

52463-MBT-D20

$8.98

ROD SUB-ASSY., CUSHION CONNECTING

52475-MGE-000

$124.80

LABEL, RR. DAMPER

87516-MBL-610

$4.31

BOLT, FLANGE (6X16)

90102-KSV-J00

$2.11

BOLT, SOCKET (12X69)

90108-MGE-000

$10.93

BOLT, FLANGE (10X68)

90121-MGE-000

$5.10

BOLT, CUSHION (UPPER) (10X53.5)

90122-MGE-000

$7.16

BOLT, FLANGE (12X70)

90123-MGE-000

$7.16

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$20.20

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$18.51

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
