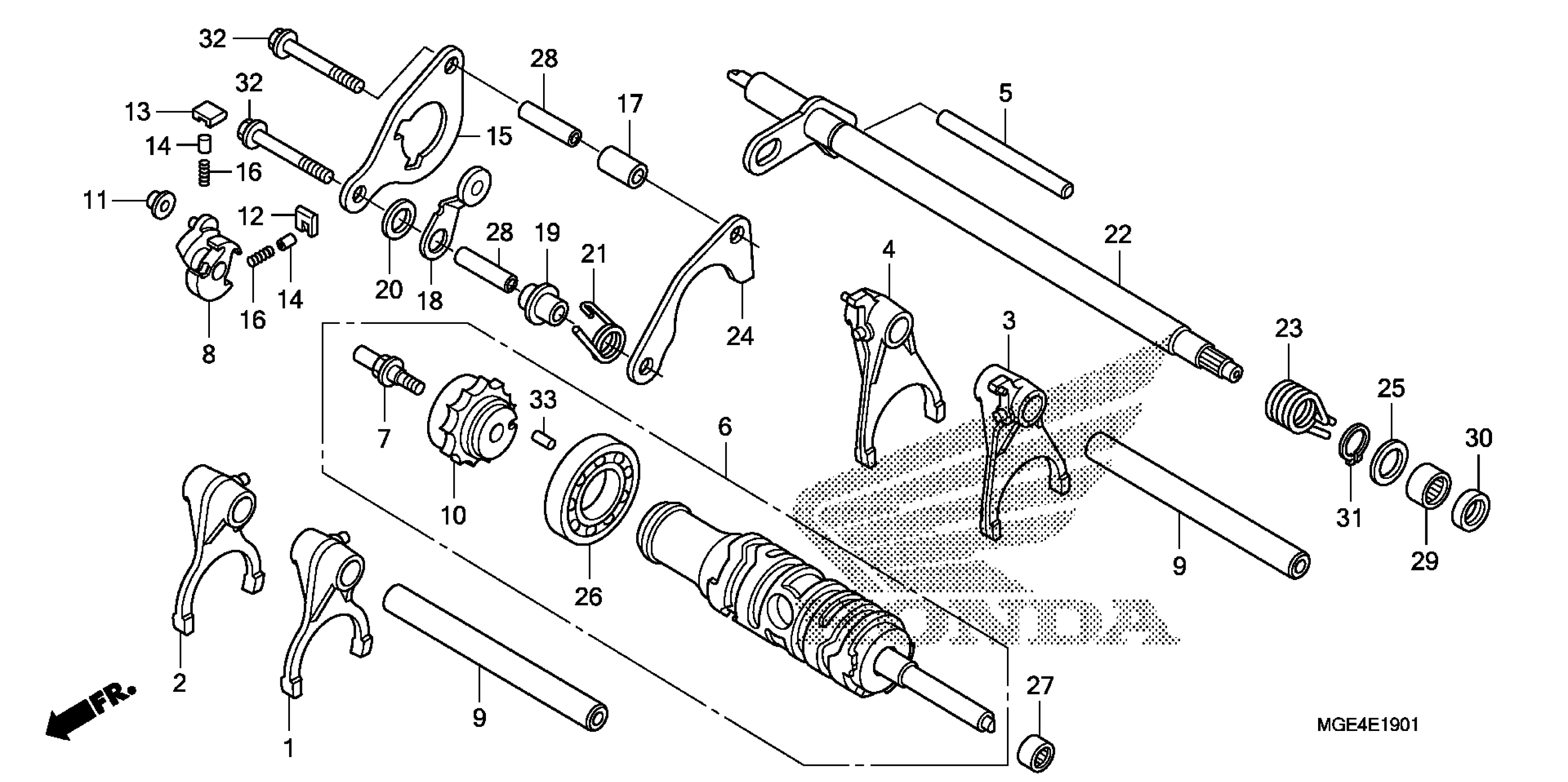

Honda VFR1200FDAC (13) VFR1200FD, JPN, VIN# JH2SC635-DK300001 GEARSHIFT DRUM (2) Diagram

#

Description
Price

1

FORK, L. GEARSHIFT (MAIN)

24211-MGE-D00

$63.10

2

FORK, R. GEARSHIFT (MAIN)

24212-MGE-D00

$63.10

3

FORK, L. GEARSHIFT (COUNTER)

24213-MGE-D00

$63.10

4

FORK, R. GEARSHIFT (COUNTER)

24214-MGE-D00

$63.10

5

SHAFT, GEARSHIFT FORK

24241-KPP-900

$3.35

6

DRUM ASSY., GEARSHIFT | Use up to Engine SN 5191810

24300-MGE-D00

$154.88

6

DRUM ASSY., GEARSHIFT | Use from Engine SN 5191811

24300-MGE-D01

$153.44

7

PIN, SHIFTER | Use up to Engine SN 5191810

24315-MGE-D00

$8.03

7

PIN, SHIFTER | Use from Engine SN 5191811

24315-MGE-D01

$10.41

8

SHIFTER, DRUM

24321-MGE-D00

$41.65

9

SHAFT, GEARSHIFT FORK

24321-MGE-000

$18.54

10

CENTER, SHIFT DRUM

24322-MGE-D01

$33.15

11

COLLAR, SHIFTER

24322-MM4-000

$4.88

12

PAWL A, RATCHET

24324-KA3-711

$12.13

13

PAWL B, RATCHET

24325-KA3-711

$12.13

14

PLUNGER, PAWL

24326-KBH-901

$5.56

15

PLATE, CHANGE GUIDE

24328-MGE-D00

$4.75

16

SPRING, PAWL PLUNGER

24329-KA3-740

$2.71

17

COLLAR, GUIDE PLATE DISTANCE

24329-KT8-000

$5.51

18

STOPPER, DRUM

24430-MGE-000

$14.81

19

COLLAR, DRUM STOPPER

24434-MGE-000

$4.97

20

COLLAR, DRUM STOPPER SIDE

24435-MGE-000

$2.40

21

SPRING, SHIFT DRUM STOPPER

24436-MGE-D00

$3.79

22

SPINDLE, GEARSHIFT

24610-MGE-D00

$81.04

23

SPRING, SHIFT RETURN

24651-MGE-D00

$6.59

24

PLATE, SHIFT DRUM BEARING SETTING

24655-MGE-D00

$4.47

25

WASHER (14MM)

90451-155-000

$3.62

26

BEARING, BALL (16005) (NTN)

91008-374-003

$13.78

27

BEARING, NEEDLE (12X18X12)

91056-HP5-601

$5.78

28

PIN, DOWEL (8X31.5)

91104-KT7-000

$4.72

29

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$10.46

30

OIL SEAL (14X22X5)

91203-KK3-830

$3.65

31

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

32

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.75

32

BOLT, FLANGE (6X45)

95701-06045-07

$2.75

33

ROLLER (4X8)

96220-40080

Unavailable
