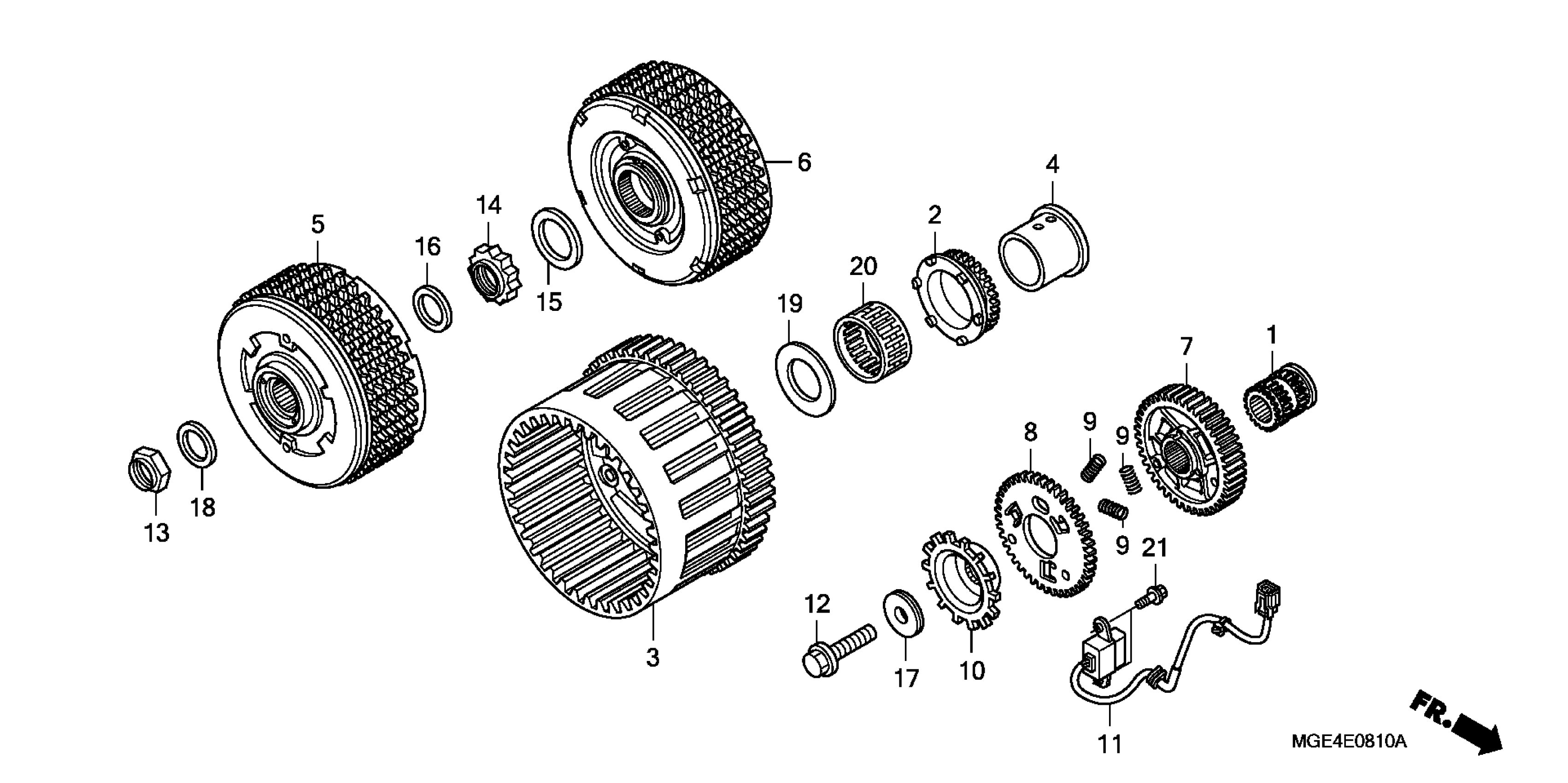

Honda VFR1200FDAC (13) VFR1200FD, JPN, VIN# JH2SC635-DK300001 CLUTCH (2) Diagram

SPROCKET, TIMING (20T)

14406-MGE-000

$59.25

SPROCKET, OIL PUMP DRIVE (30T)

15131-MGE-D01

$59.38

CLUTCH OUTER

22100-MGE-D00

$381.36

GUIDE, CLUTCH (OUTER)

22116-MGE-D00

$32.28

CLUTCH ASSY. 1

22500-MGE-D00

$522.23

CLUTCH ASSY. 2

22600-MGE-D00

$522.23

GEAR, PRIMARY DRIVE (42T)

23103-MGE-000

$114.89

SUB-GEAR, PRIMARY (42T)

23104-MGE-000

$65.75

SPRING, PRIMARY DAMPER

23115-MGE-000

$10.74

ROTOR, PULSE

30291-MGE-000

$19.80

GENERATOR ASSY., PULSE

30300-MGE-641

$75.84

BOLT, FLANGE (12X45)

90024-MGE-000

$7.15

NUT, LOCK (25MM)

90231-MCH-000

$6.78

NUT, LOCK (36MM)

90231-MGE-D00

$13.30

WASHER (36.2X49X1.5)

90403-MGE-D00

$8.97

WASHER (29.7X37.8X2)

90404-MGE-D00

$5.16

WASHER (12.5X36X6)

90408-MGE-000

$7.15

WASHER (25.2X36X2)

90410-MGE-D00

$5.16

WASHER (63X40X1.4)

90454-MT4-000

$6.00

BEARING, NEEDLE (48X54X24)

91025-MGE-D00

$13.51

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
