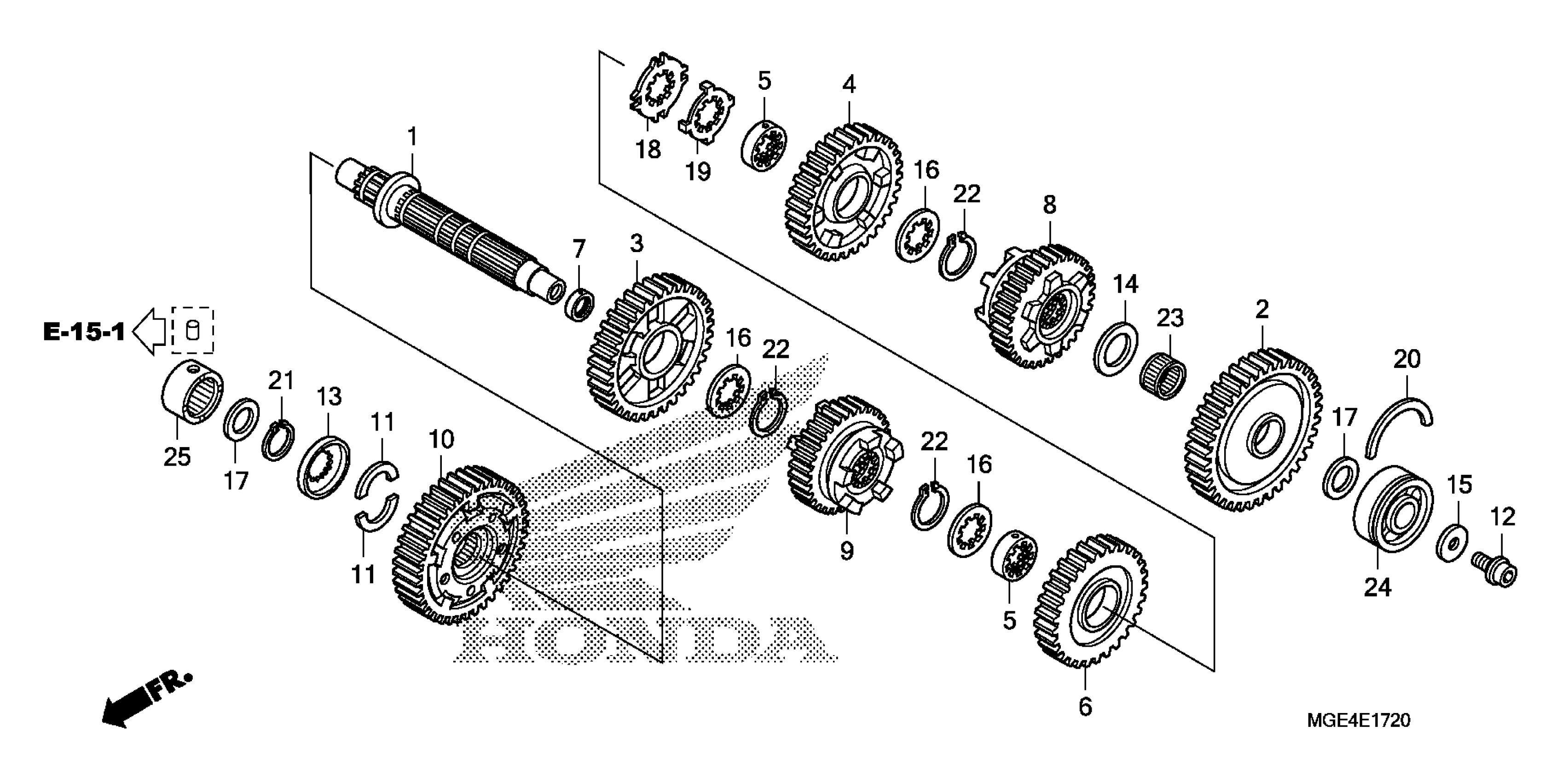

Honda VFR1200FDAC (10) VFR1200FD, JPN, VIN# JH2SC635-AK000001 TO JH2SC635-AK099999 TRANSMISSION (COUNTERSHAFT) Diagram

COUNTERSHAFT

23221-MGE-D00

$173.00

GEAR, COUNTERSHAFT FIRST (37T)

23421-MGE-D00

$129.48

GEAR, COUNTERSHAFT SECOND (34T)

23441-MGE-D00

$125.20

GEAR, COUNTERSHAFT THIRD (31T)

23461-MGE-D00

$125.20

COLLAR, SPLINE (30X11)

23462-MAT-000

$23.00

GEAR, COUNTERSHAFT FOURTH (29T)

23481-MGE-D00

$119.82

COLLAR (30X33X12.8)

23493-MGE-D00

$10.74

GEAR, COUNTERSHAFT FIFTH (32T)

23501-MGE-D00

$140.18

GEAR, COUNTERSHAFT SIXTH (31T)

23521-MGE-D00

$140.18

GEAR, FINAL DRIVE (41T)

23530-MGE-D00

$335.95

COTTER, COUNTERSHAFT

23545-MGE-000

$5.61

BOLT, SPECIAL (10MM)

90037-ME9-000

$7.25

RETAINER, COUNTERSHAFT

90402-MGE-010

$7.59

WASHER, THRUST (26MM)

90407-415-000

$5.64

WASHER (10.5X31.8X3.2)

90412-MGE-000

$3.61

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

RING, BEARING SETTING (56MM)

90601-MA6-000

$2.97

CIRCLIP (28MM)

90603-MN4-000

$4.11

CIRCLIP (30MM)

90604-MM5-000

$4.48

BEARING, NEEDLE (26X30X13)

91001-MCH-003

$11.07

BEARING, SPECIAL BALL (22X56X21.5)

91003-MGE-003

$30.39

BEARING, NEEDLE (22X38X19.3)

91025-MBT-F21

$29.48
