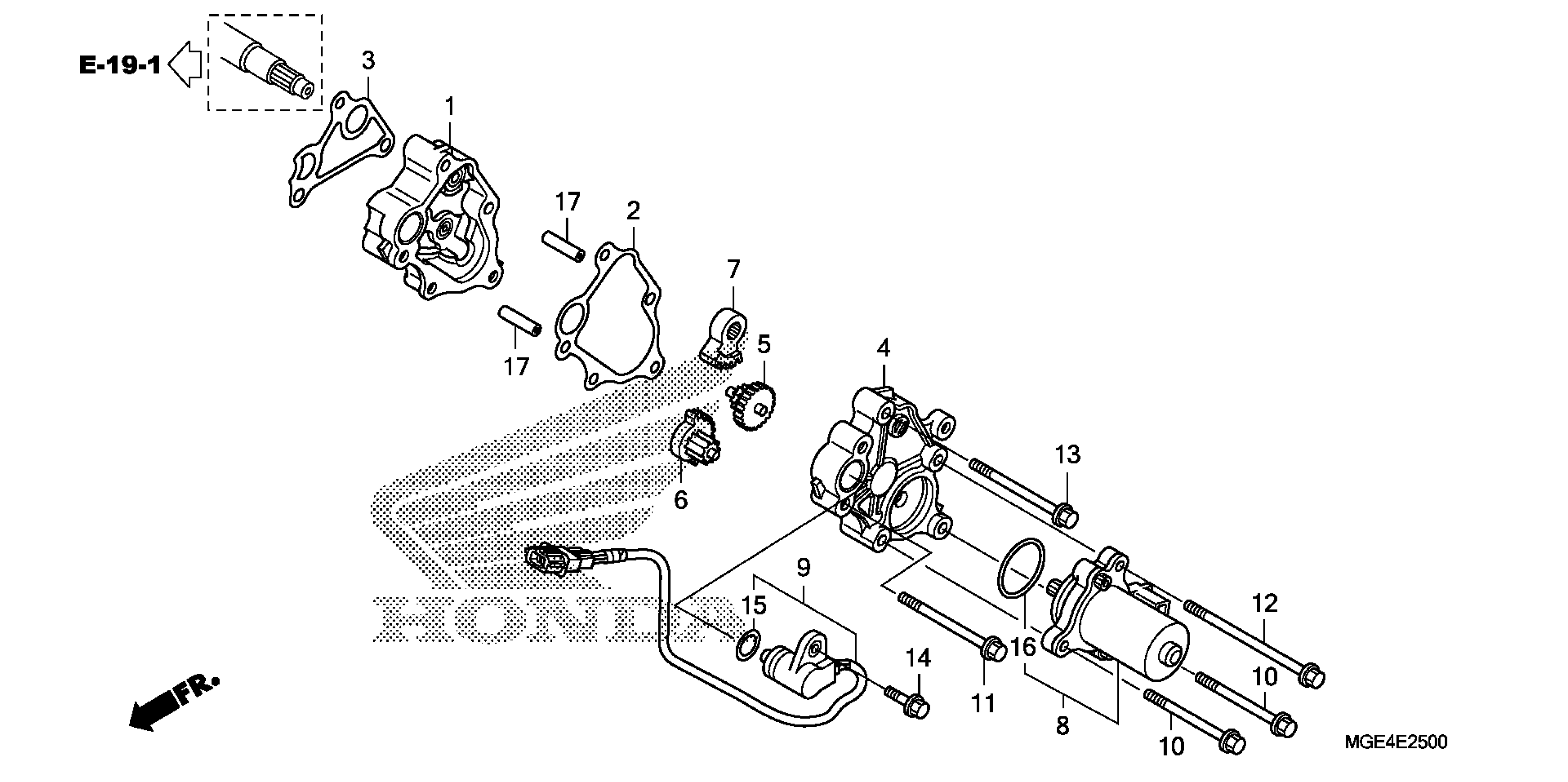

Honda VFR1200FDAC (10) VFR1200FD, JPN, VIN# JH2SC635-AK000001 TO JH2SC635-AK099999 REDUCTION GEAR Diagram

BASE, REDUCTION GEAR

11510-MGE-D00

$86.10

GASKET, REDUCTION GEAR COVER | Use up to Engine SN 5093157

11513-MGE-D00

$5.13

GASKET | Use from Engine SN 5093158 This part replaces 11513-MGE-D01.

11513-MGE-D02

$5.57

GASKET, REDUCTION GEAR BASE | Use up to Engine SN 5093157

11514-MGE-D00

$3.69

GASKET | Use from Engine SN 5093158 This part replaces 11514-MGE-D01.

11514-MGE-D02

$4.15

COVER, REDUCTION GEAR

11520-MGE-D00

$94.56

GEAR, SHIFT REDUCTION (45T/7T)

24615-MGE-D01

$67.39

GEAR, SHIFT REDUCTION (32T/13T)

24616-MGE-D01

$84.31

GEAR, SHIFT REDUCTION (42T)

24617-MGE-D01

$54.69

MOTOR, RATIO CONTROL This part replaces 31300-KVZ-631.

31300-KVZ-632

$288.21

SENSOR ASSY., ANGLE (350DEGREE)

38800-MGE-D01

$206.51

BOLT, FLANGE (6X55)

90007-MGE-D00

$2.67

BOLT, FLANGE (6X65)

90008-MGE-D00

$2.95

BOLT, FLANGE (6X85)

90009-MGE-D00

$3.08

BOLT, FLANGE (6X60)

90010-MGE-D00

$2.67

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.89

O-RING (16.5X2.5)

91310-MGE-D01

$4.80

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.81

PIN, DOWEL (8X40)

91704-PF4-000

$6.61
