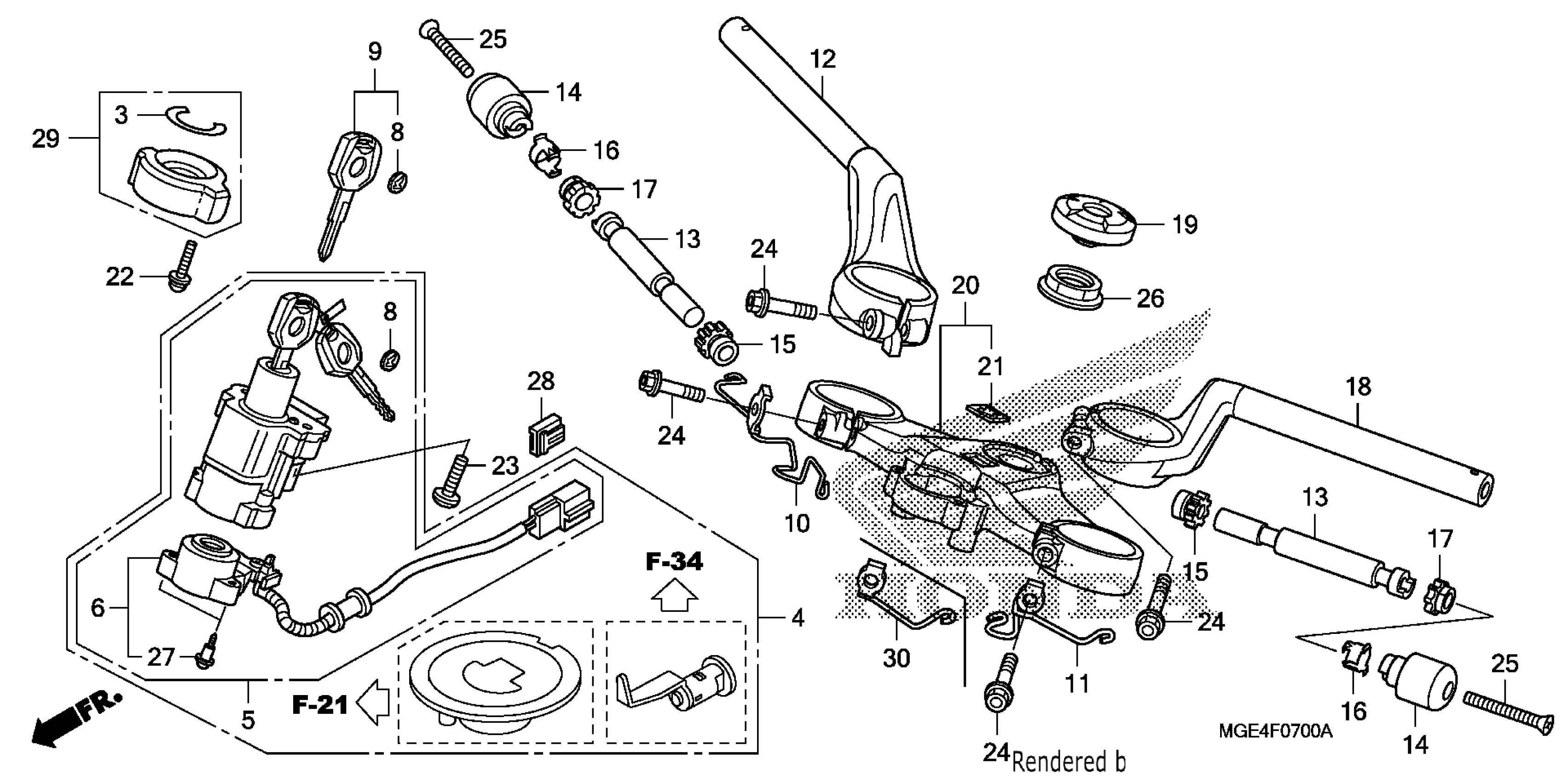

Honda VFR1200FDAC (10) VFR1200FD, JPN, VIN# JH2SC635-AK000001 TO JH2SC635-AK099999 HANDLEBAR + TOP BRIDGE Diagram

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

LOCK SET This part replaces 35010-MGE-670.

35010-MGE-671

$757.15

LOCK SET

35010-MGE-671

$757.15

SWITCH ASSY., COMBINATION & LOCK

35100-MGE-671

$218.15

BASE, CONTACT

35101-MGE-641

$76.32

EMBLEM, KEY | (Optional).

35113-MFL-641

$3.73

KEY, BLANK | (Optional).

35121-MEH-671

$19.19

GUIDE, R. FR. HOSE

45159-MGE-020

$18.12

HANDLEBAR, R. (COO)

53100-MGE-305

$233.88

WEIGHT B, HANDLEBAR

53104-MV4-000

$23.72

WEIGHT, HANDLEBAR

53105-KT8-010

$16.57

RUBBER B, HANDLE WEIGHT

53107-MB6-630

$3.74

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$4.90

RUBBER B, HANDLE WEIGHT

53109-MV4-000

$2.47

HANDLEBAR, L. This part replaces 53150-MGE-306.

53150-MGE-D00

$211.49

CAP, STEERING NUT

53232-MGE-010

$5.35

BRIDGE, FORK TOP

53300-MGE-010

$236.19

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

SCREW-WASHER (5X22)

90020-MBW-610

$2.37

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

BOLT, FLANGE (8X40)

90108-MR7-000

$4.83

SCREW, OVAL (6X60)

90191-MGE-000

$2.71

NUT, STEERING STEM

90304-MJ4-670

$14.15

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.65

GUIDE, L. FR. HOSE

45160-MGE-D00

$12.47
