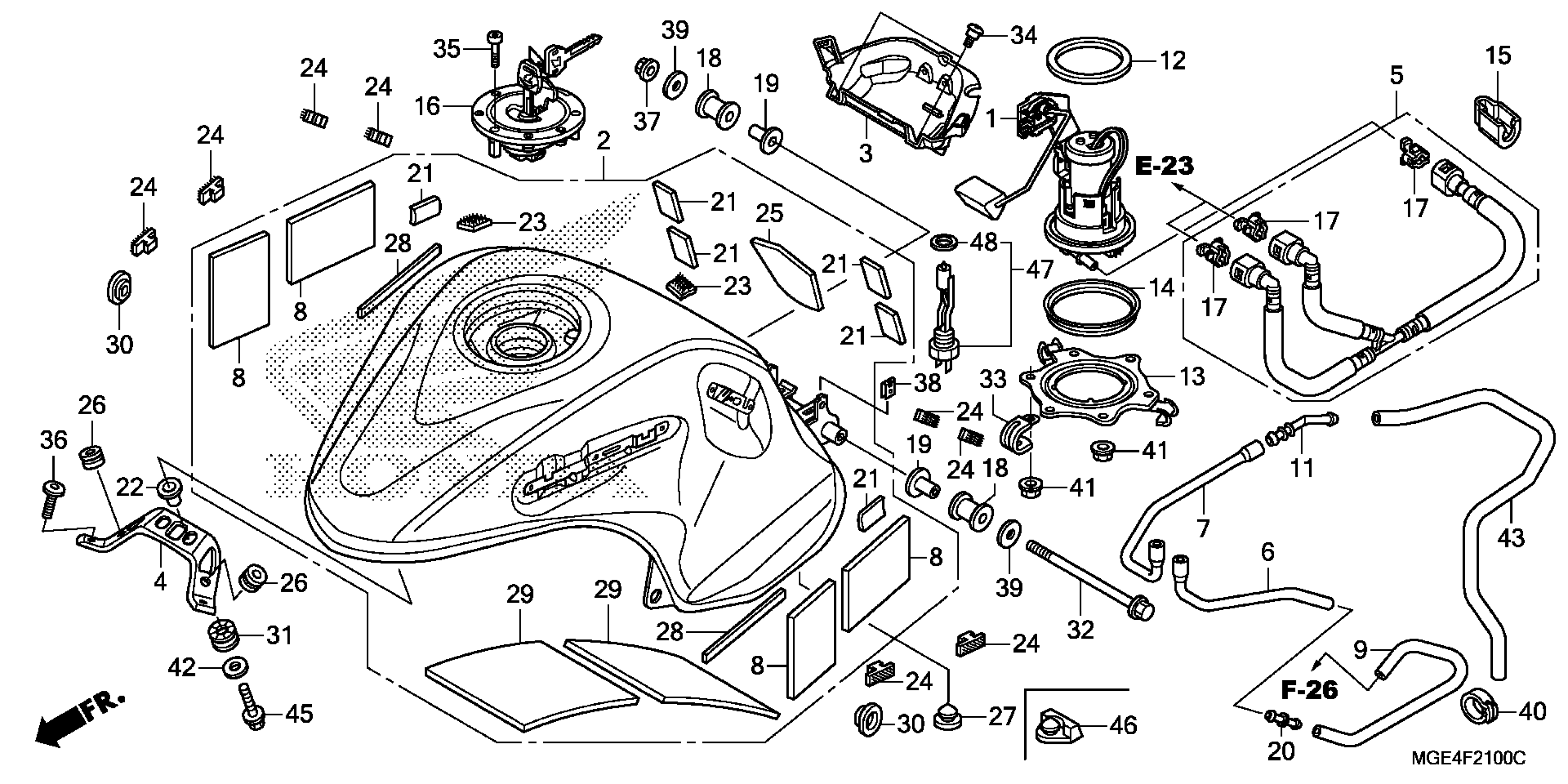

Honda VFR1200FDAC (10) VFR1200FD, JPN, VIN# JH2SC635-AK000001 TO JH2SC635-AK099999 FUEL TANK + FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY., FUEL This part replaces 16700-MGE-003.

16700-MGE-023

$649.09

1

PUMP ASSY., FUEL This part replaces 16700-MGE-013.

16700-MGE-023

$649.09

2

TANK SET, FUEL *NHB01* (GRAPHITE BLACK) | Use up to Frame SN AK000011Candy prominence red R342C; This part replaces 17500-MGE-000ZA.

17500-MGE-020ZA

$1,150.12

2

TANK SET, FUEL *NHB01* (GRAPHITE BLACK) This part replaces 17500-MGE-010ZA.

17500-MGE-020ZA

$1,150.12

2

TANK SET, FUEL *NHB01* (GRAPHITE BLACK)

17500-MGE-020ZA

$1,150.12

3

PROTECTOR, TANK HEAT

17515-MGE-000

$26.50

4

STAY, FR. FUEL TANK

17523-MGE-000

$13.35

5

HOSE, FUEL FEED

17526-MGE-003

$163.09

6

TUBE, TANK BREATHER

17544-MGE-770

$18.68

7

TUBE, TANK DRAIN

17545-MGE-000

$8.15

8

CUSHION, FUEL TANK

17554-MEL-300

$7.76

9

TUBE, TANK-CANISTER

17556-MGE-770

$12.07

11

JOINT (TWO-WAY)

17561-MFL-000

$3.12

12

GASKET, FUEL PUMP

17574-MFJ-D00

$23.48

13

PLATE, FUEL PUMP SETTING

17575-MGE-000

$13.06

14

SEAL (OUTER)

17576-MFJ-D00

$5.62

15

COVER, FUEL CONNECTOR

17580-MFJ-D00

$4.76

16

CAP, FUEL FILLER This part replaces 17620-MGE-003.

17620-MGE-023

$326.78

16

CAP, FUEL FILLER This part replaces 17620-MGE-013.

17620-MGE-023

$326.78

17

RETAINER

17711-MGE-003

$6.05

18

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$6.05

19

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.65

20

JOINT B, WASHER TUBE (MITSUBA)

38562-663-920

$10.63

21

RUBBER, BATTERY

50383-GB6-300

$3.01

22

COLLAR, SETTING

61104-422-000

$6.60

23

FASTENER B, DUAL LOCK (20X20) | Use up to Frame SN AK000011

64243-MEW-920

$2.83

24

FASTENER A, DUAL LOCK (9X24)

64472-MGE-000

$3.37

25

COVER, FUEL TANK CENTER

64490-MGE-000

$28.91

26

GROMMET, IGNITION COVER

53133-KR1-760

$4.07

27

RUBBER, SEAT SIDE

77212-965-000

$4.71

28

SEAL, FUEL TANK

81354-MAT-300

$1.94

29

URETHANE, FUEL TANK (LOWER)

83430-MGE-000

$9.32

30

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

31

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.50

32

BOLT, FLANGE (8X190)

90102-ZB5-000

$12.15

33

CLIP (2X50)

90105-727-000

$2.93

34

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.40

35

BOLT, SOCKET (4X21)

90120-MGE-000

$2.26

36

BOLT, SPECIAL (6X18)

90155-MGE-000

$3.03

37

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

38

NUT, SPRING (5MM)

90320-GE2-760

$1.82

39

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.28

40

CLIP, WIRE HARNESS

90683-KJ2-003

$3.40

41

NUT, FLANGE (6MM)

94050-06000

$0.60

42

WASHER, PLAIN (6MM)

94103-06000

$0.91

43

BULK HOSE, VACUUM (7.3X3000) (7.3X950)

95005-75003-10M

$99.62

45

BOLT, FLANGE (6X25)

96001-06025-00

$2.49
