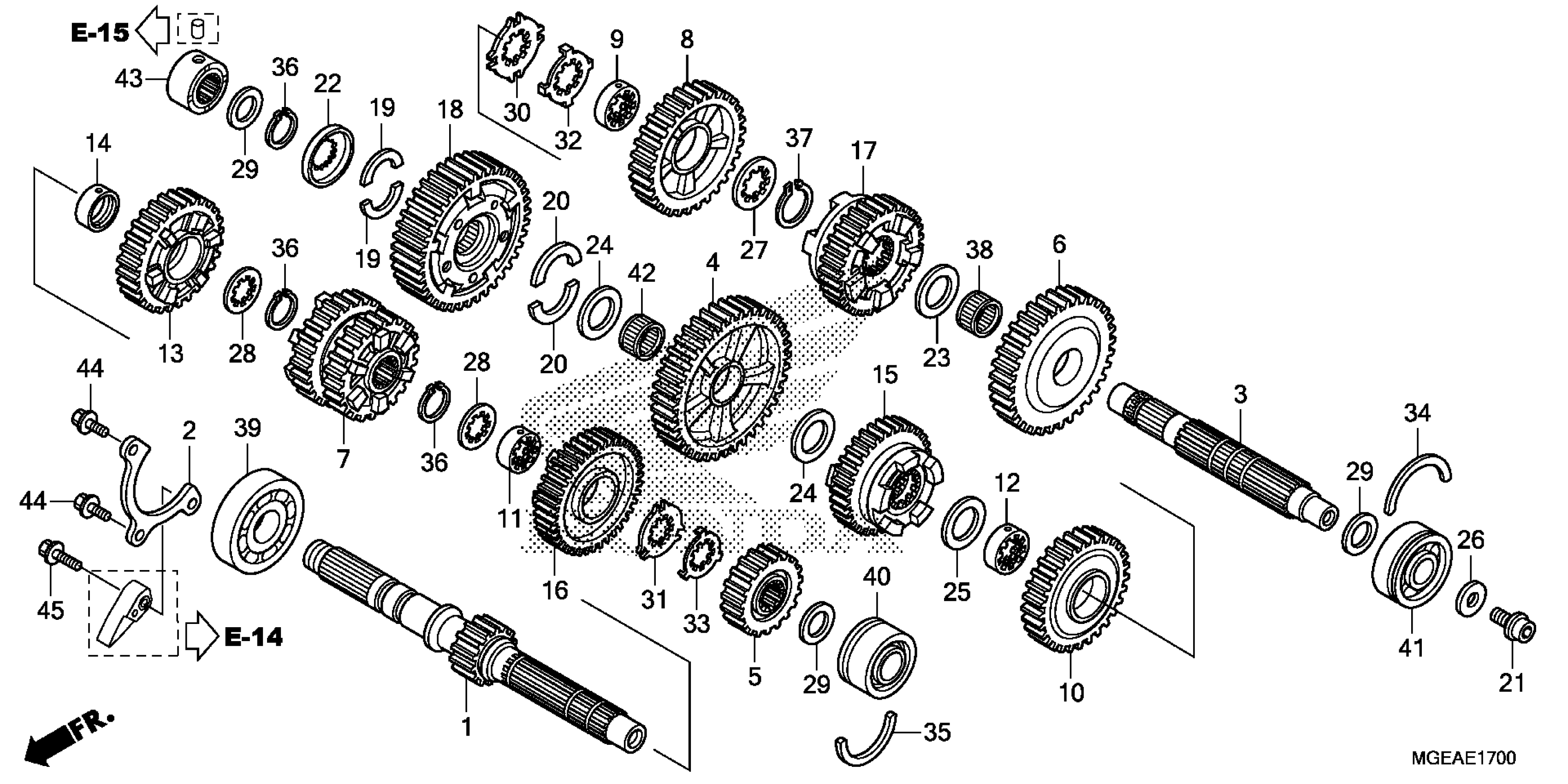

Honda VFR1200FAC (14) MOTORCYCLE, JPN, VIN# JH2SC631-EK400001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (15T)

23210-MGE-010

$169.37

2

PLATE, BEARING SETTING

23213-MGE-000

$4.74

3

COUNTERSHAFT

23221-MGE-010

$158.82

4

GEAR, COUNTERSHAFT FIRST (39T)

23421-MGE-010

$118.90

5

GEAR, MAINSHAFT SECOND (19T)

23431-MGE-000

$57.97

6

GEAR, COUNTERSHAFT SECOND (33T)

23441-MGE-010

$115.03

7

GEAR, MAINSHAFT THIRD & FOURTH (22T/25T)

23451-MGE-010

$138.56

8

GEAR, COUNTERSHAFT THIRD (30T)

23461-MGE-000

$115.03

9

COLLAR, SPLINE (30X12)

23462-MGE-000

$12.28

10

GEAR, COUNTERSHAFT FOURTH (29T)

23481-MGE-000

$115.03

11

COLLAR, SPLINE (28X16)

23482-MCJ-000

$18.57

12

COLLAR (30X33X12)

23482-MGE-000

$9.76

13

GEAR, MAINSHAFT FIFTH (31T)

23491-MGE-000

$116.90

14

COLLAR (28X13)

23495-MM5-000

$21.25

15

GEAR, COUNTERSHAFT FIFTH (32T)

23501-MGE-010

$128.74

16

GEAR, MAINSHAFT SIXTH (33T)

23511-MGE-010

$116.90

17

GEAR, COUNTERSHAFT SIXTH (31T)

23521-MGE-010

$128.74

18

GEAR, FINAL DRIVE (39T)

23530-MGH-640

$299.44

19

COTTER, COUNTERSHAFT

23545-MGE-000

$5.18

20

COTTER B, COUNTERSHAFT

23546-MGE-010

$5.18

21

BOLT, SPECIAL (10MM)

90037-ME9-000

$6.69

22

RETAINER, COUNTERSHAFT

90402-MGE-010

$7.01

23

WASHER, THRUST (26MM)

90407-415-000

$5.21

24

WASHER (30.6X40X1)

90409-MGE-000

$2.72

25

WASHER (30.2X36X1.5)

90410-MGE-000

$3.04

26

WASHER (10.5X31.8X3.2)

90412-MGE-000

$3.34

27

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.04

28

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$5.85

29

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.65

30

WASHER, SPLINE (30MM)

90463-MAT-000

$4.22

31

WASHER, SPLINE (28MM)

90463-MR7-000

$9.76

32

WASHER, LOCK (30MM)

90464-MAT-000

$6.21

33

WASHER, LOCK (28MM)

90464-MR7-000

$9.76

34

RING, BEARING SETTING (56MM)

90601-MA6-000

$2.83

35

SET-RING (48MM)

90602-MGE-000

$5.07

36

CIRCLIP (28MM)

90603-MN4-000

$3.58

37

CIRCLIP (30MM)

90604-MM5-000

$4.28

38

BEARING, NEEDLE (26X30X13)

91001-MCH-003

$10.22

39

BEARING, SPECIAL BALL (28X76X18)

91001-MGE-003

$27.56

40

BEARING, SPECIAL BALL (5204S)

91002-MGE-003

$21.54

41

BEARING, SPECIAL BALL (22X56X21.5)

91003-MGE-003

$28.09

42

BEARING, NEEDLE (30X35X13)

91006-MGE-003

$11.71

43

BEARING, NEEDLE (22X38X19.3)

91025-MBT-F21

$27.24

44

BOLT, FLANGE (6X20)

95701-06020-00

$1.63

45

BOLT, FLANGE (6X28)

95801-06028-00

$1.68
