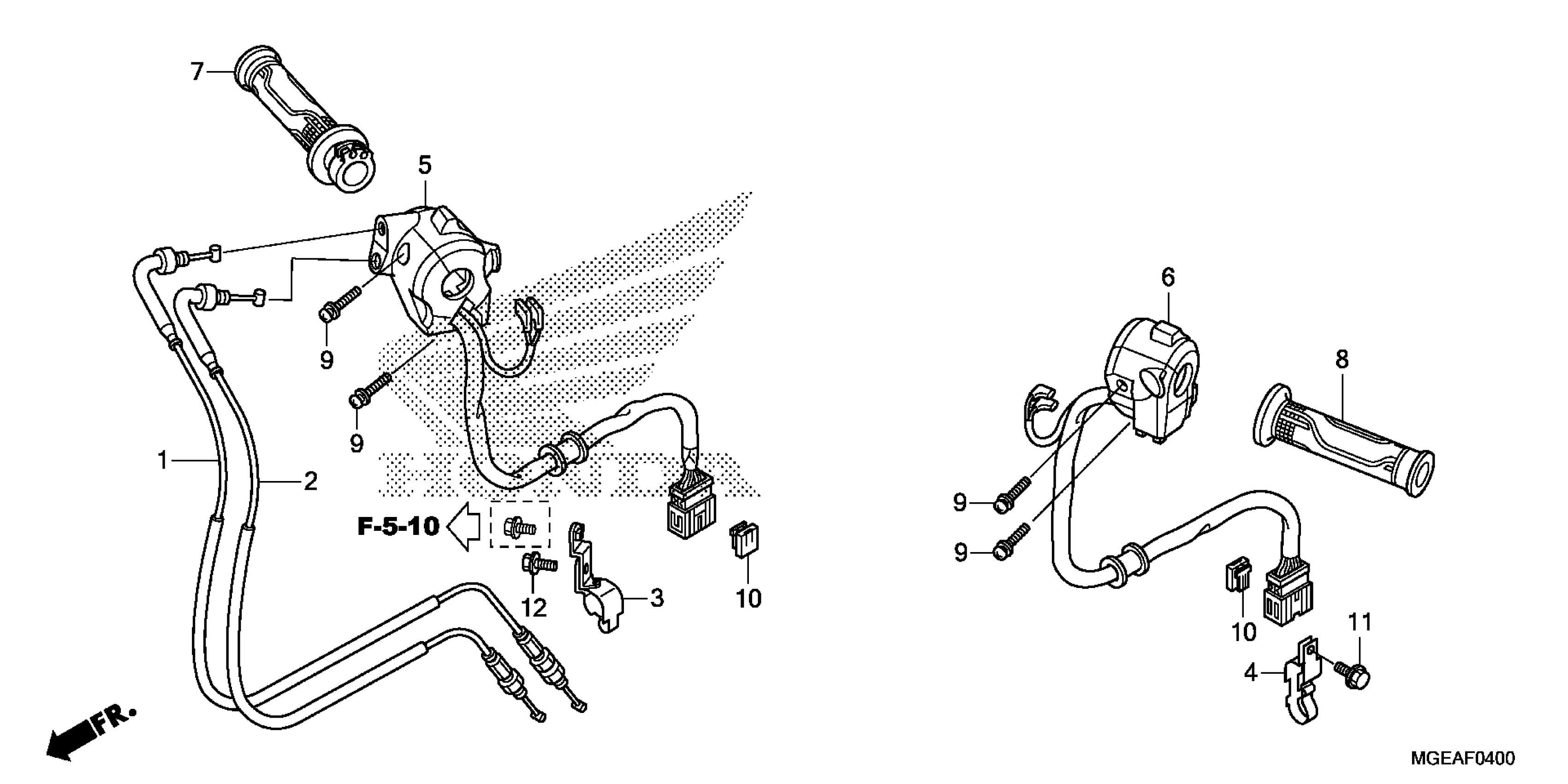

Honda VFR1200FAC (14) MOTORCYCLE, JPN, VIN# JH2SC631-EK400001 SWITCH + CABLE (1) Diagram

#

Description

Price

1

CABLE A, THROTTLE

17910-MGE-000

$26.90

2

CABLE B, THROTTLE

17920-MGE-000

$24.88

3

CLAMP, R. WIRE

35107-MGH-640

$6.03

4

CLAMP, L. WIRE

35108-MGE-640

$4.97

5

SWITCH, ENGINE STOP This part replaces 35130-MGE-642.

35130-MGE-643

$137.53

6

SWITCH ASSY., TURN SIGNAL

35200-MGE-672

$134.24

7

GRIP ASSY., THROTTLE This part replaces 53140-MGE-305.

53140-MGE-000

$28.88

8

GRIP, L. HANDLE This part replaces 53166-MGE-305.

53166-MGE-000

$16.28

9

SCREW-WASHER (5X20)

90507-MGE-640

$1.32

10

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable

11

BOLT, FLANGE (6X10)

96001-06010-07

$1.50

12

BOLT, FLANGE (6X14)

96001-06014-07

$1.10
