Description

Price

1

SHAFT ASSY., PROPELLER This part replaces 40200-MGE-013.

40200-MGE-023

$1,390.20

1

SHAFT ASSY., PROPELLER

40200-MGE-023

$1,390.20

2

COVER, FINAL GEAR

41351-MGE-000

$53.74

3

SET-RING (24X1.6)

44319-SC2-003

$3.39

4

BOLT, SWINGARM PIVOT

52101-MGE-000

$78.77

5

COLLAR, SWINGARM PIVOT

52102-MGE-000

$30.79

6

BOOT, JOINT

52104-MGE-000

$33.57

7

COVER, PROPELLER SHAFT

52105-MGE-000

$35.87

8

BOLT, PIVOT ADJUSTING

52109-MGE-000

$25.05

9

COLLAR, R. PIVOT DISTANCE

52143-MGE-000

$27.69

10

COLLAR, R. PIVOT DISTANCE (L. SIDE)

52144-MFL-000

$24.26

11

GROMMET, SWINGARM

52175-MGE-000

$2.93

12

SWINGARM SUB-ASSY.

52200-MGE-010

$1,375.52

13

COLLAR, CUSHION ARM

52463-MBT-D20

$8.98

14

BOLT, SPECIAL (6X12)

90113-MGE-000

$2.94

15

NUT, U (22MM)

90306-MFL-D31

$17.62

16

WASHER (26X41X3)

90501-MGE-000

$4.49

17

WASHER (22.2X44X3)

90502-MGE-000

$4.74

18

RIVET, PUSH PULL

90652-MGE-003

$2.51

19

CIRCLIP, SPECIAL (26MM)

90654-MGE-000

$5.85

20

PLUG, HOLE

90656-MGE-003

$1.49

21

BEARING, RADIAL BALL (6905)

91053-MCJ-003

$16.79

22

BEARING, NEEDLE (32X42X20)

91053-MCJ-751

$32.10

23

BEARING, NEEDLE (32X42X37)

91071-MCJ-003

$21.06

24

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$18.51

25

DUST SEAL (32X45X5)

91252-MCF-003

$6.91

26

DUST SEAL (32X42X6)

91253-MCF-003

$6.41

27

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

28

CIRCLIP, INNER (45MM)

94520-45000

$2.19

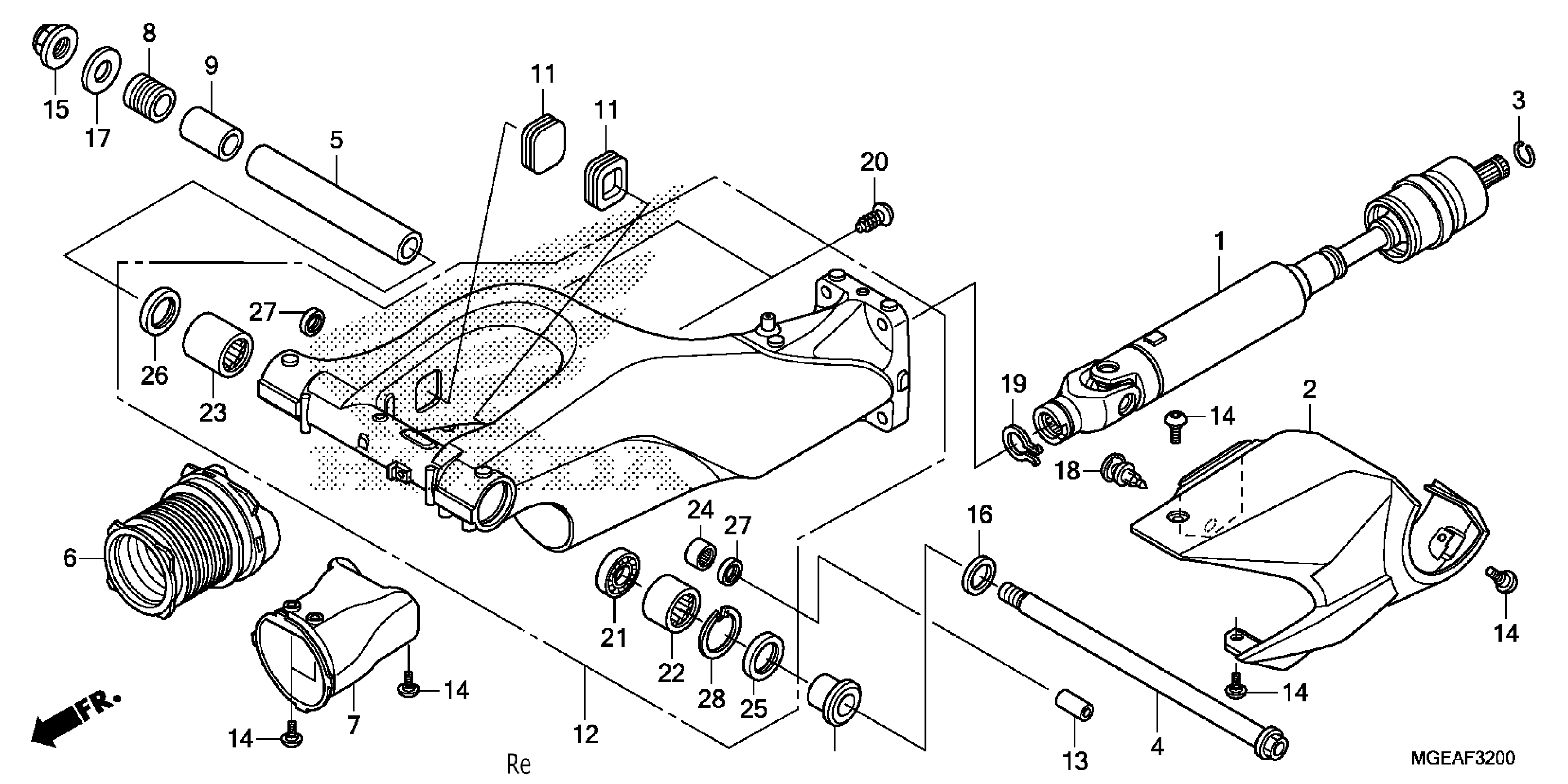

Honda VFR1200FAC (14) MOTORCYCLE, JPN, VIN# JH2SC631-EK400001 SWINGARM Diagram
