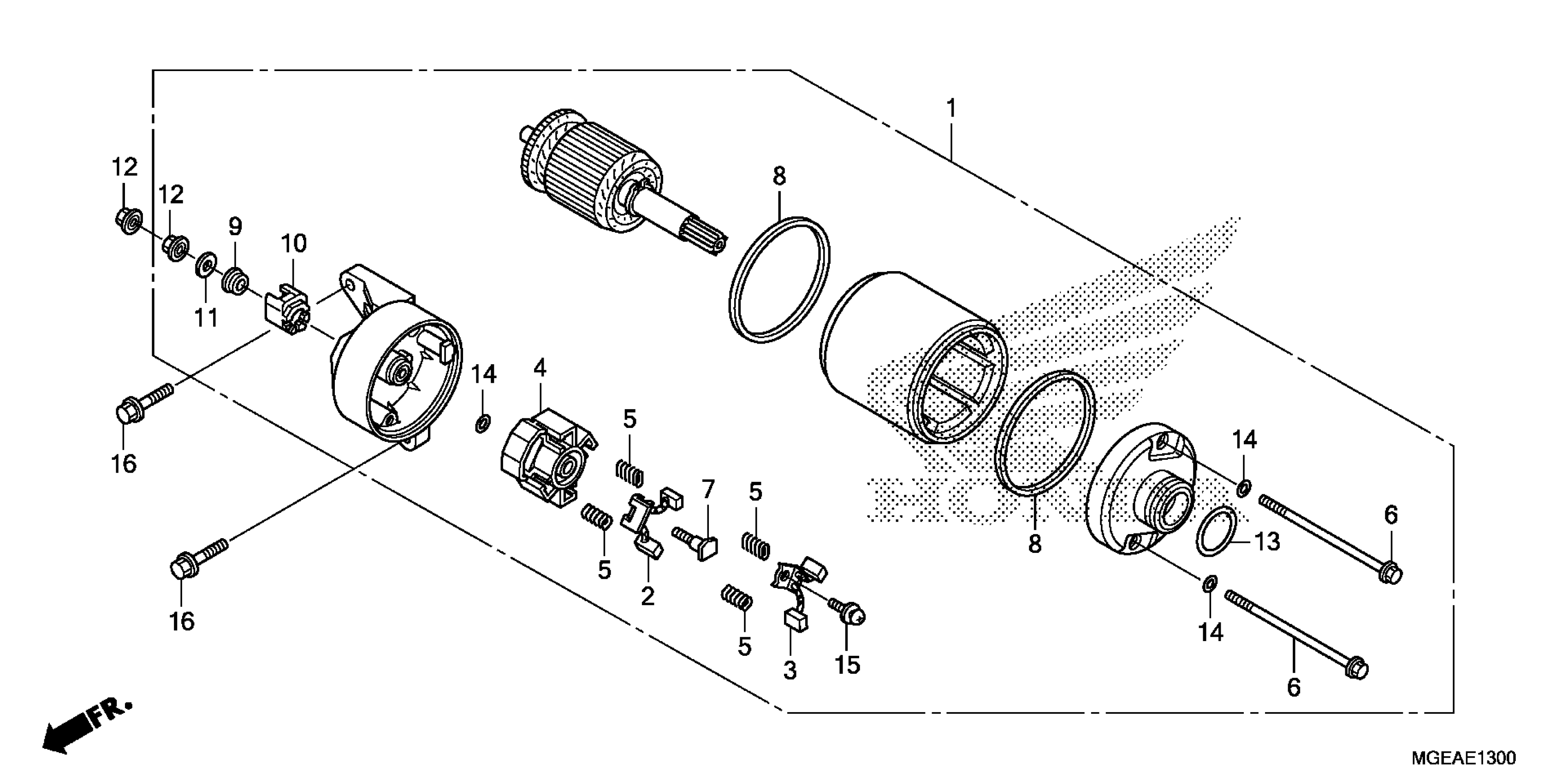

Honda VFR1200FAC (14) MOTORCYCLE, JPN, VIN# JH2SC631-EK400001 STARTING MOTOR Diagram

Description

Price

STARTER MOTOR ASSY.

31200-MGE-641

$566.87

BRUSH SET A, CARBON

31201-MEW-921

$7.43

BRUSH SET B, CARBON

31202-MEW-921

$12.01

HOLDER, BRUSH

31203-MEW-921

$7.14

SPRING, CARBON BRUSH

31204-MEW-921

$11.58

BOLT, SETTING

31205-MEW-921

$9.01

BOLT, TERMINAL

31206-MEW-921

$2.71

RING

31207-KS5-901

$2.97

INSULATOR

31208-MEW-921

$7.07

STOPPER, TERMINAL

31209-MEW-921

$10.50

WASHER

31210-MEW-921

$1.68

NUT-WASHER (6MM)

90071-MB0-000

$1.91

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.24

SCREW-WASHER (5X12)

93892-05012-08

$1.06

BOLT, FLANGE (6X25)

95801-06025-08

$1.66
