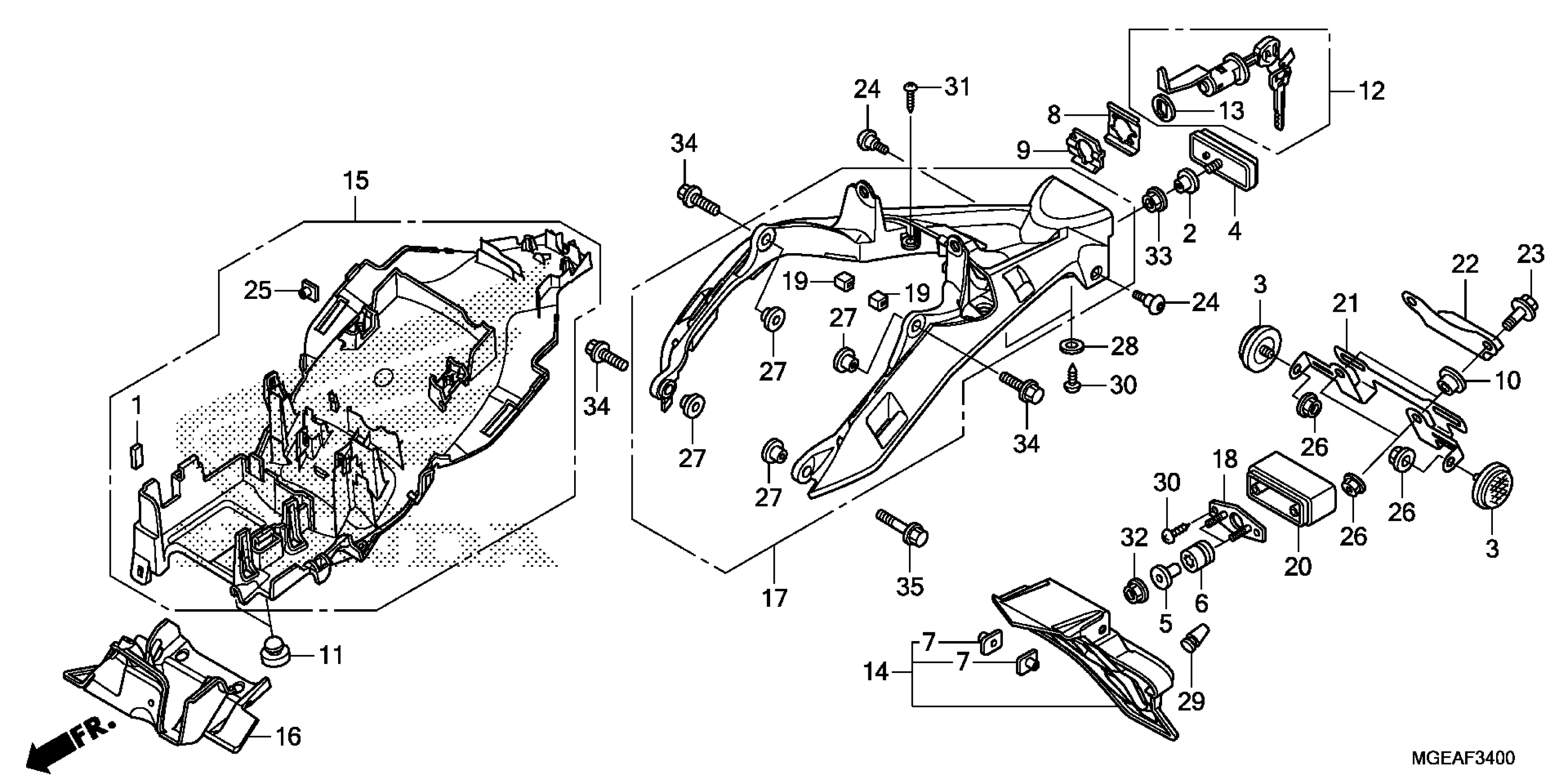

Honda VFR1200FAC (14) MOTORCYCLE, JPN, VIN# JH2SC631-EK400001 REAR FENDER Diagram

#

Description
Price

1

CUSHION

19105-MR8-300

$2.34

2

COLLAR, TAILLIGHT SETTING

33715-MC4-610

$3.98

3

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

4

REFLECTOR, REFLEX

33741-MCJ-G00

Unavailable

4

REFLECTOR, REFLEX

33741-MCJ-G01

$22.07

5

COLLAR, SPEEDOMETER MOUNTING

37243-KV3-830

$5.68

6

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$4.88

7

NUT, SPECIAL (6MM)

61304-HB3-003

$2.69

8

SPRING, LOCK KEY SETTING

75581-MGE-000

$3.94

9

PLATE, SET

75582-MGE-000

$2.99

10

COLLAR, SEAT SETTING

77103-MEE-000

$2.51

11

RUBBER, SEAT MOUNTING

77110-KA3-730

$4.83

12

LOCK ASSY., SEAT

77110-MGE-003

$35.60

13

RUBBER, SEAT LOCK

77228-MEE-D00

$2.10

14

BRACKET, LICENSE LIGHT

80100-MFL-670

$24.76

15

FENDER B, RR.

80105-MGE-000

$112.99

16

GUARD, RR. HEAT

80106-MGE-010

$39.26

17

STAY A, FENDER

80115-MGE-000

$122.74

18

STAY, LICENSE LIGHT BRACKET

80118-MGE-670

$7.15

19

RUBBER, PROTECTOR

80119-MGE-300

$2.85

20

BRACKET, LICENSE LIGHT

80201-MGE-670

$7.57

21

BRACKET, NUMBER PLATE

84700-MGE-672

$16.00

22

PLATE, SPLASH GUARD

84705-MGE-670

$8.01

23

BOLT, FLANGE (6X16)

90001-PZ1-000

$3.30

24

SCREW, PAN (6X14)

90117-MFL-D20

$1.90

25

NUT, SPECIAL (4MM)

90300-GC8-000

$2.25

26

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$3.89

27

COLLAR (8MM)

90450-KG8-000

$4.56

28

WASHER, VOLT & FUEL

90580-MJ0-000

$1.40

29

PLUG, CONE

90899-MFJ-A00

$3.29

30

SCREW, TAPPING (4X12)

93903-24380

Unavailable

31

SCREW, TAPPING (4X16)

93903-24480

$0.84

32

NUT, FLANGE (5MM)

94050-05000

$1.21

33

NUT, FLANGE (5MM)

94050-05070

$1.19

34

BOLT, FLANGE (8X25)

96300-08025-00

$1.50

35

BOLT, FLANGE (8X45)

96300-08045-00

$1.93
