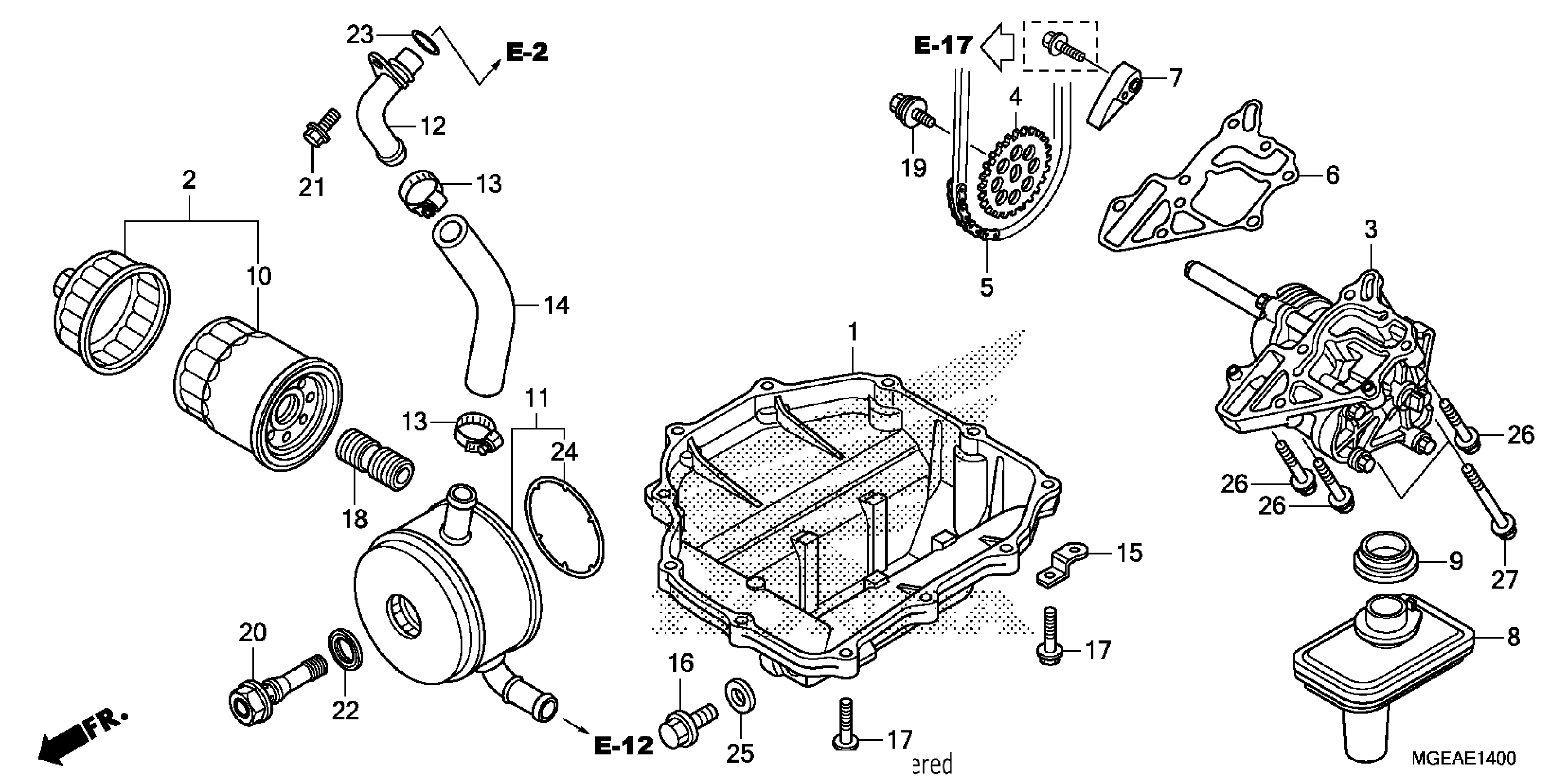

Honda VFR1200FAC (14) MOTORCYCLE, JPN, VIN# JH2SC631-EK400001 OIL PUMP (1) Diagram

#

Description
Price

1

PAN, OIL

11210-MGE-000

$210.79

2

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$18.15

3

PUMP ASSY., OIL

15100-MGE-000

$450.03

4

SPROCKET, OIL PUMP DRIVEN (22T)

15134-MCA-000

$36.84

5

CHAIN, OIL PUMP DRIVE (DID25H-72L)

15141-MFJ-D01

$19.22

6

GASKET, OIL PUMP

15145-MGE-003

$10.10

7

GUIDE A, OIL PUMP CHAIN

15146-MGE-D00

$16.06

8

STRAINER, OIL

15150-MGE-000

$39.43

9

GASKET, OIL STRAINER

15154-MAT-000

$5.87

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$14.16

11

COOLER, OIL

15700-MGE-003

$256.96

12

JOINT, FR. WATER INLET

19330-MGE-000

$22.94

13

CLAMP A, WATER HOSE

19505-KS6-700

Unavailable

14

HOSE B, OIL COOLER WATER

19505-MGE-000

$9.21

15

STAY, CLIP

32160-MGE-D01

$3.31

16

BOLT, PLUG DRAIN (14MM)

90014-MGE-000

$3.22

17

BOLT, FLANGE (6X28)

90016-GHB-680

$2.10

18

BOSS, OIL FILTER

90019-MB0-000

$7.93

19

BOLT-WASHER (6X12)

90021-MM5-000

$4.88

20

BOLT, OIL COOLER

90023-MGE-000

$59.93

21

BOLT, FLANGE (6X14)

90031-MGE-000

$1.90

22

WASHER, SEALING (34.5MM)

90402-MFJ-D01

$6.90

23

O-RING (13X3.0)

91302-MB6-830

$1.81

23

O-RING (13X3.0) This part replaces 91314-KE8-003.

91302-MB6-830

$1.81

24

O-RING, OIL COOLER

91354-MCT-003

$7.08

25

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

26

BOLT, FLANGE (6X28)

95701-06028-00

$1.68

27

BOLT, FLANGE (6X55)

95701-06055-00

$2.59
