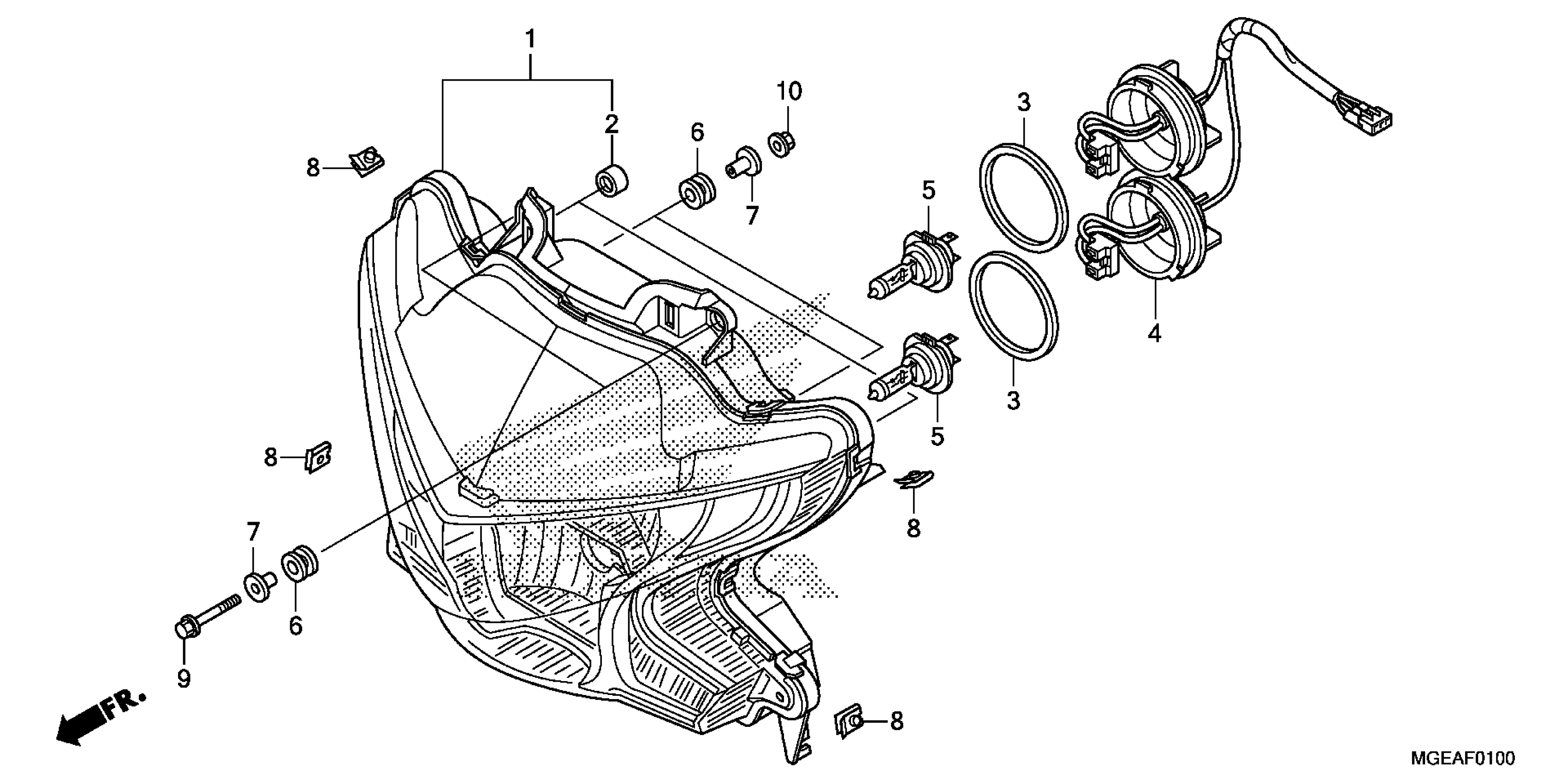

Honda VFR1200FAC (14) MOTORCYCLE, JPN, VIN# JH2SC631-EK400001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT (COO)

33102-MGE-305

$1,023.79

2

PIPE, CP

33113-MEE-D01

$3.06

3

GASKET, SOCKET COVER

33114-MGE-641

$10.20

4

SOCKET, HEADLIGHT

33130-MGE-641

$30.28

5

BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)

34901-MAT-611

$25.16

6

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.28

7

COLLAR (6.3X13)

50324-425-010

$4.51

8

NUT, CLIP (5MM)

90677-KAN-961

$3.89

9

BOLT-WASHER (6X25)

93404-06025-08

$1.72

10

NUT, FLANGE (6MM)

94050-06000

$0.60
