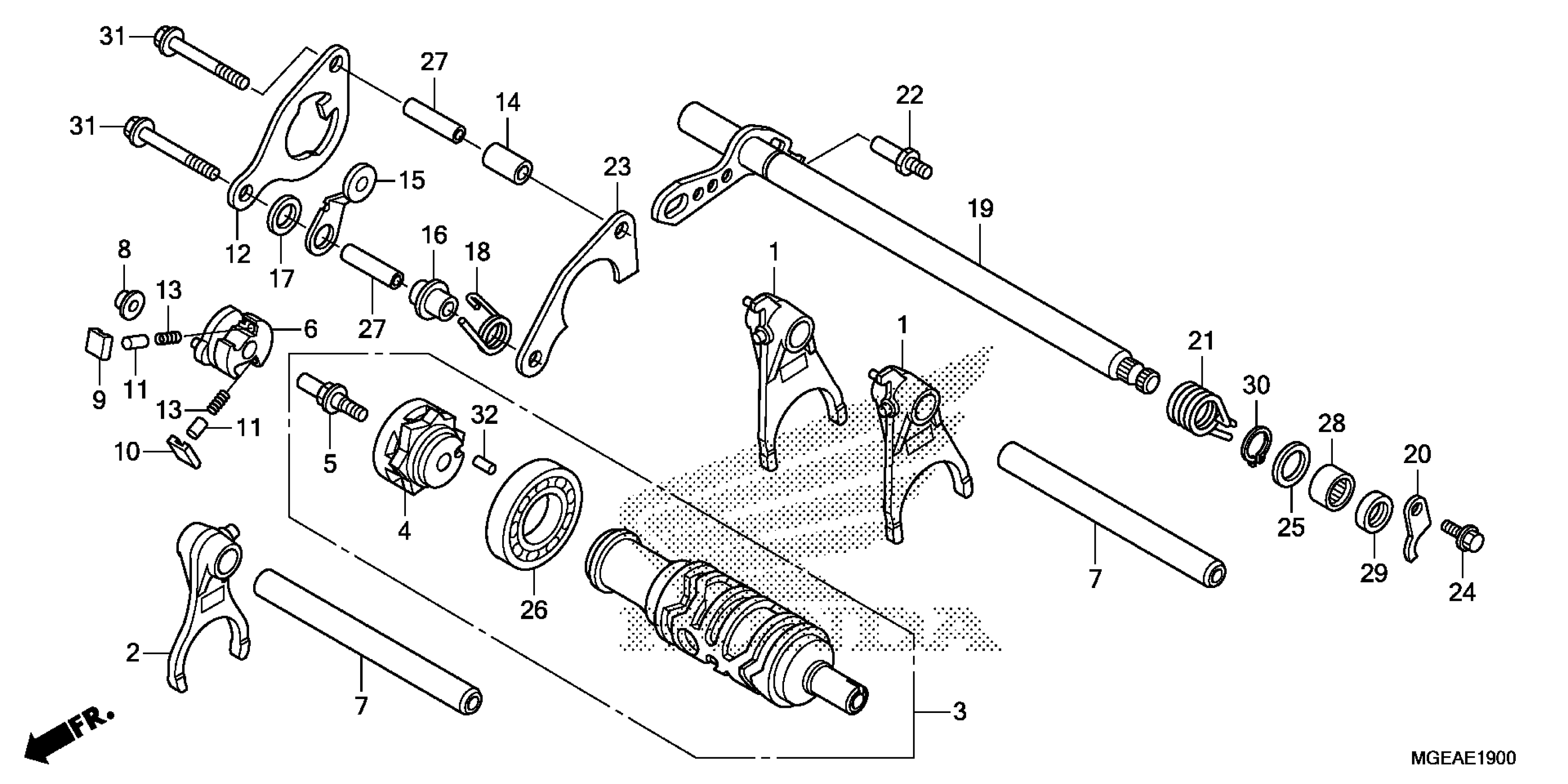

Description

Price

1

FORK, GEARSHIFT

24211-MGE-000

$71.00

2

FORK, CENTER GEARSHIFT

24212-MGE-000

$71.00

3

DRUM ASSY., GEARSHIFT

24310-MGH-640

$202.69

4

CENTER, SHIFT DRUM

24312-MGE-003

$39.39

5

PIN, SHIFTER

24315-HA0-000

$12.60

6

SHIFTER, DRUM

24321-KT8-030

$55.03

7

SHAFT, GEARSHIFT FORK

24321-MGE-000

$20.07

8

COLLAR, SHIFTER

24322-MM4-000

$5.12

9

PAWL A, RATCHET

24324-KA3-711

$13.21

10

PAWL B, RATCHET

24325-KA3-711

$13.21

11

PLUNGER, PAWL

24326-KBH-901

$5.81

12

PLATE, CHANGE GUIDE

24328-MGE-000

$5.13

13

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

14

COLLAR, GUIDE PLATE DISTANCE

24329-KT8-000

$5.97

15

STOPPER, DRUM

24430-MGE-000

$16.03

16

COLLAR, DRUM STOPPER

24434-MGE-000

$5.38

17

COLLAR, DRUM STOPPER SIDE

24435-MGE-000

$2.59

18

SPRING, SHIFT DRUM STOPPER

24436-MGE-000

$4.59

19

SPINDLE, GEARSHIFT

24610-MGE-010

$100.20

20

PLATE, SPINDLE

24612-MAL-600

$9.75

21

SPRING, SHIFT RETURN

24651-MAS-E00

$5.89

22

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

23

PLATE, SHIFT DRUM BEARING SETTING

24655-MGE-000

$4.84

24

BOLT, FLANGE (6X14)

90031-MGE-000

$2.05

25

WASHER (14MM)

90451-155-000

$3.78

26

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

27

PIN, DOWEL (8X31.5)

91104-KT7-000

$5.11

28

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$11.31

29

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

30

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

31

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

31

BOLT, FLANGE (6X45)
