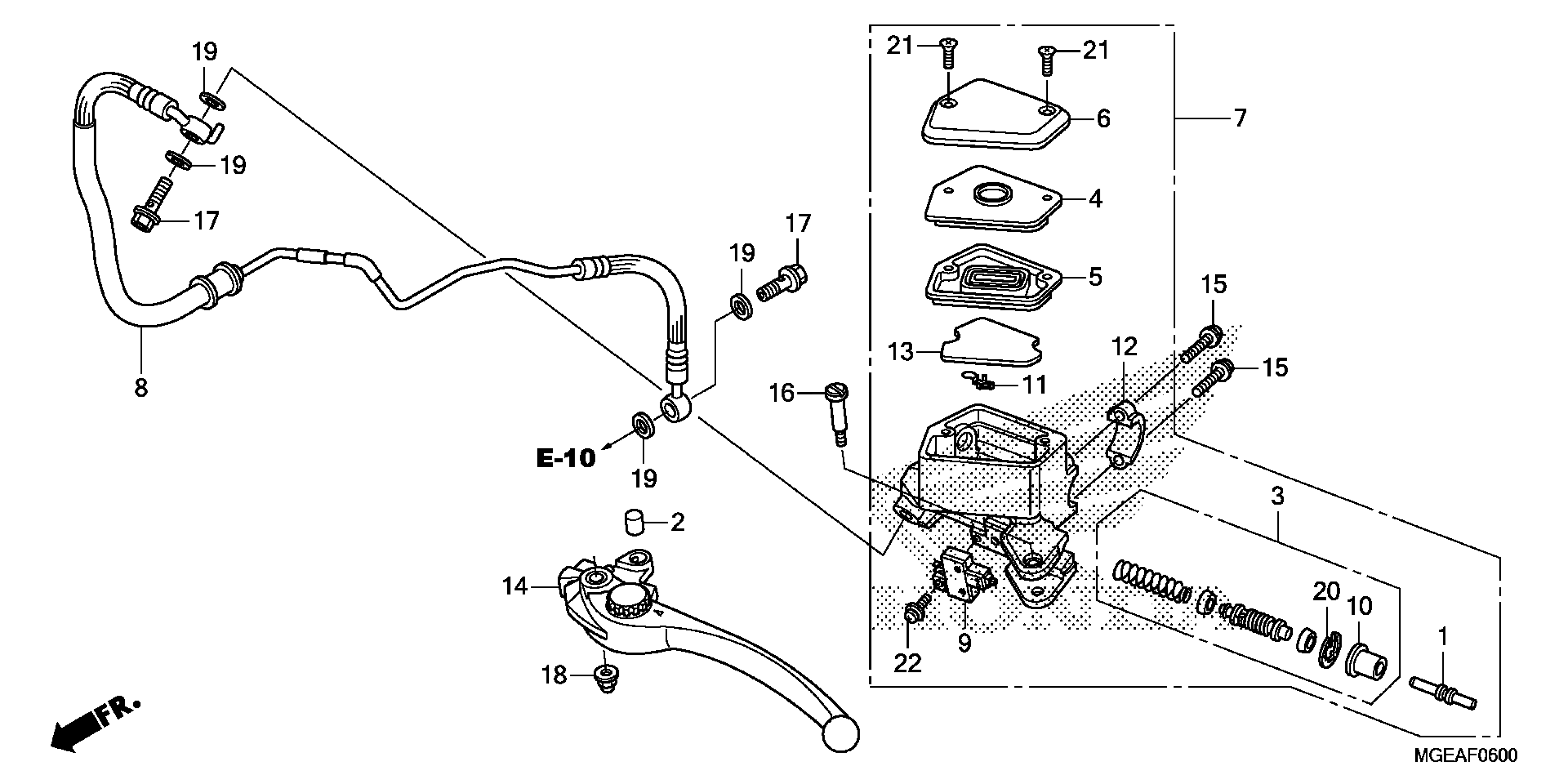

Honda VFR1200FAC (14) MOTORCYCLE, JPN, VIN# JH2SC631-EK400001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MAT-E01

$17.78

2

BUSH

22885-MB0-006

$11.88

3

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$52.37

4

PLATE, DIAPHRAGM

22887-MGE-006

$7.29

5

DIAPHRAGM

22888-MGE-006

$11.39

6

CAP, MASTER CYLINDER

22889-MGE-006

$31.54

7

MASTER CYLINDER SUB-ASSY., CLUTCH (COO)

22890-MGE-305

$353.81

8

PIPE, CLUTCH

22900-MGE-003

$195.47

9

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

10

BOOT

45504-MAT-E01

$9.79

11

PROTECTOR

45512-MA6-006

$4.09

12

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

13

FLOAT, FR. MASTER CYLINDER

45523-MGE-006

$5.38

14

LEVER ASSY., L. HANDLE This part replaces 53180-MEJ-305.

53180-MEJ-016

$46.70

15

BOLT, FLANGE (6X22) This part replaces 90010-GHB-660.

96001-06022-00

$1.15

15

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

16

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

17

BOLT, OIL (10X22)

90145-MS9-612

$6.99

18

NUT, CAP (6MM)

90201-415-000

Unavailable

19

WASHER, OIL BOLT

90545-300-000

$5.79

20

CIRCLIP

90651-MA5-671

$2.38

21

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

22

SCREW-WASHER (4X12)

93893-04012-07

$1.32

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32
