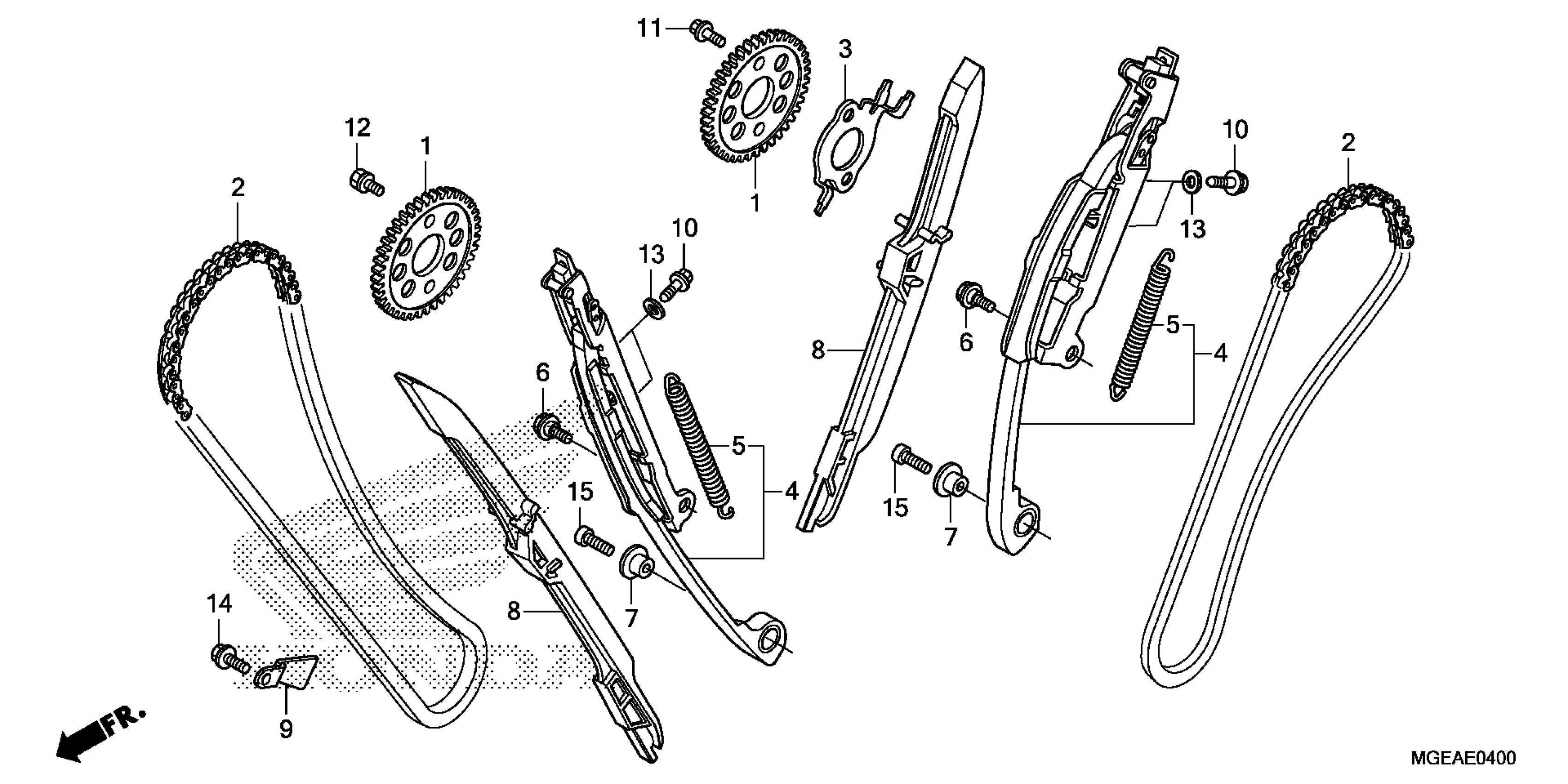

Honda VFR1200FAC (14) MOTORCYCLE, JPN, VIN# JH2SC631-EK400001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (40T)

14321-MGE-000

$86.72

CHAIN, CAM (120L) (BORG WARNER)

14401-MGE-003

$81.90

ROTOR, CAM PULSE

14405-MGE-000

$32.16

TENSIONER, CAM CHAIN

14510-MGE-030

$185.10

SPRING, CAM CHAIN TENSIONER

14516-MGE-310

$7.08

BOLT, SPECIAL (6X17)

14519-MGE-000

$5.84

COLLAR, TENSIONER

14521-MGE-010

$7.87

GUIDE, CAM CHAIN

14620-MGE-000

$60.39

PLATE, TENSIONER SETTING

14623-MBA-000

$5.66

BOLT, FLANGE (6X18)

90001-MZ8-U40

$1.90

BOLT, UBS (7X13)

90027-MY9-690

$1.90

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

WASHER, SEALING (6MM)

90488-425-000

$2.28

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, SOCKET (6X20)

96600-06020-00

$1.49
