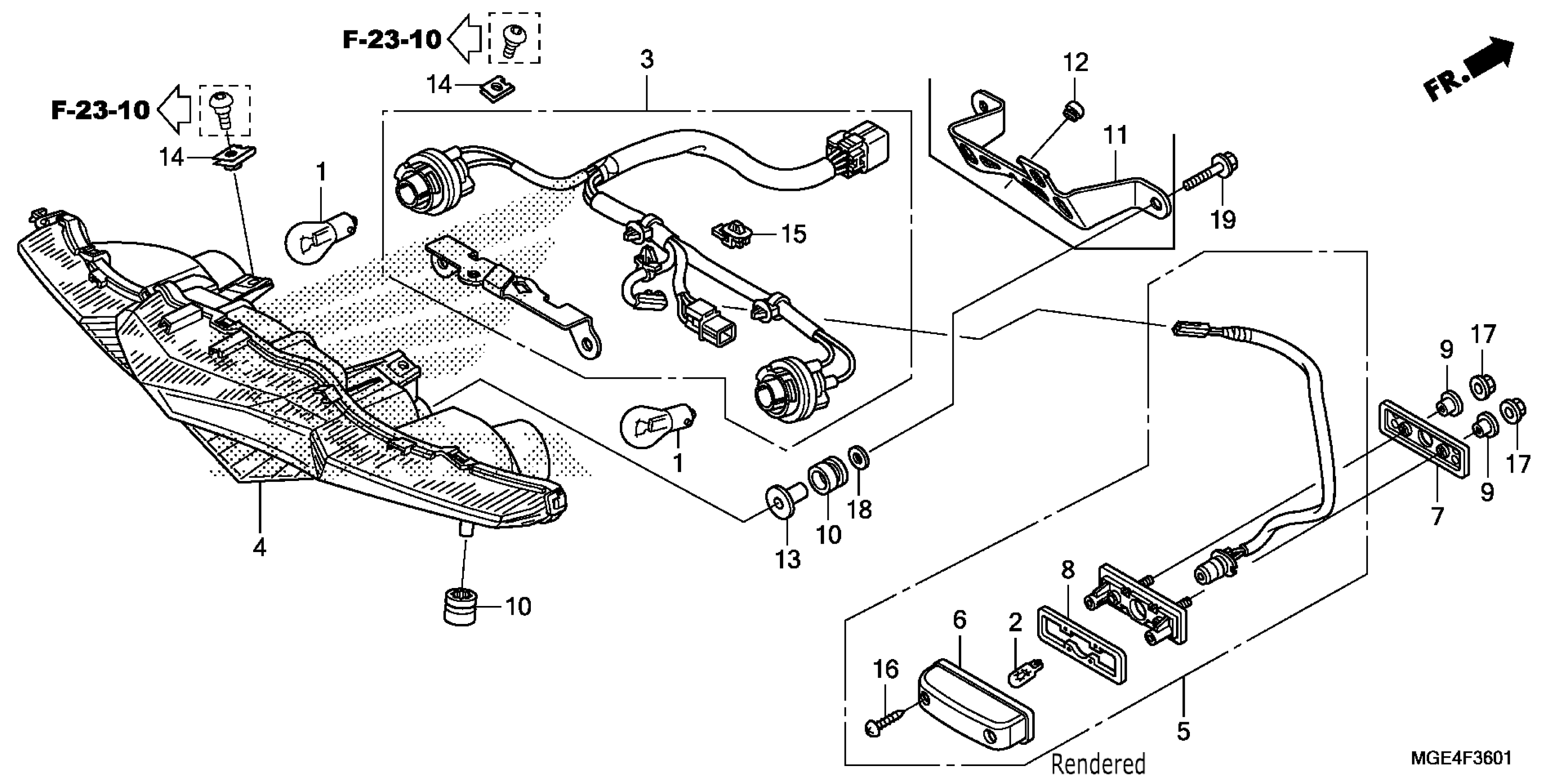

Honda VFR1200FAC (13) VFR1200F, JPN, VIN# JH2SC631-DK300001 TAILLIGHT (2) Diagram

BULB, FR. TURN (12V 21W) (AMBER) (STANLEY) (RR.)

33301-S04-004

$9.12

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

SOCKET

33708-MGE-D41

$64.81

LIGHT UNIT, RR. COMBINATION

33710-MGE-C31

$476.41

LIGHT ASSY., LICENSE (COO)

33720-MGE-305

$96.41

COVER, LICENSE

33721-GET-671

$17.41

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.70

GASKET, LENS

33729-MCZ-003

$8.62

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.17

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$4.76

COLLAR, SETTING

61104-422-000

$6.44

NUT, CLIP (5MM)

90677-KAN-961

$3.79

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.86

SCREW, TAPPING (4X16)

93901-24480

$0.75

NUT, FLANGE (5MM)

94050-05000

$1.19

WASHER, PLAIN (6MM)

94103-06700

$0.65

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
