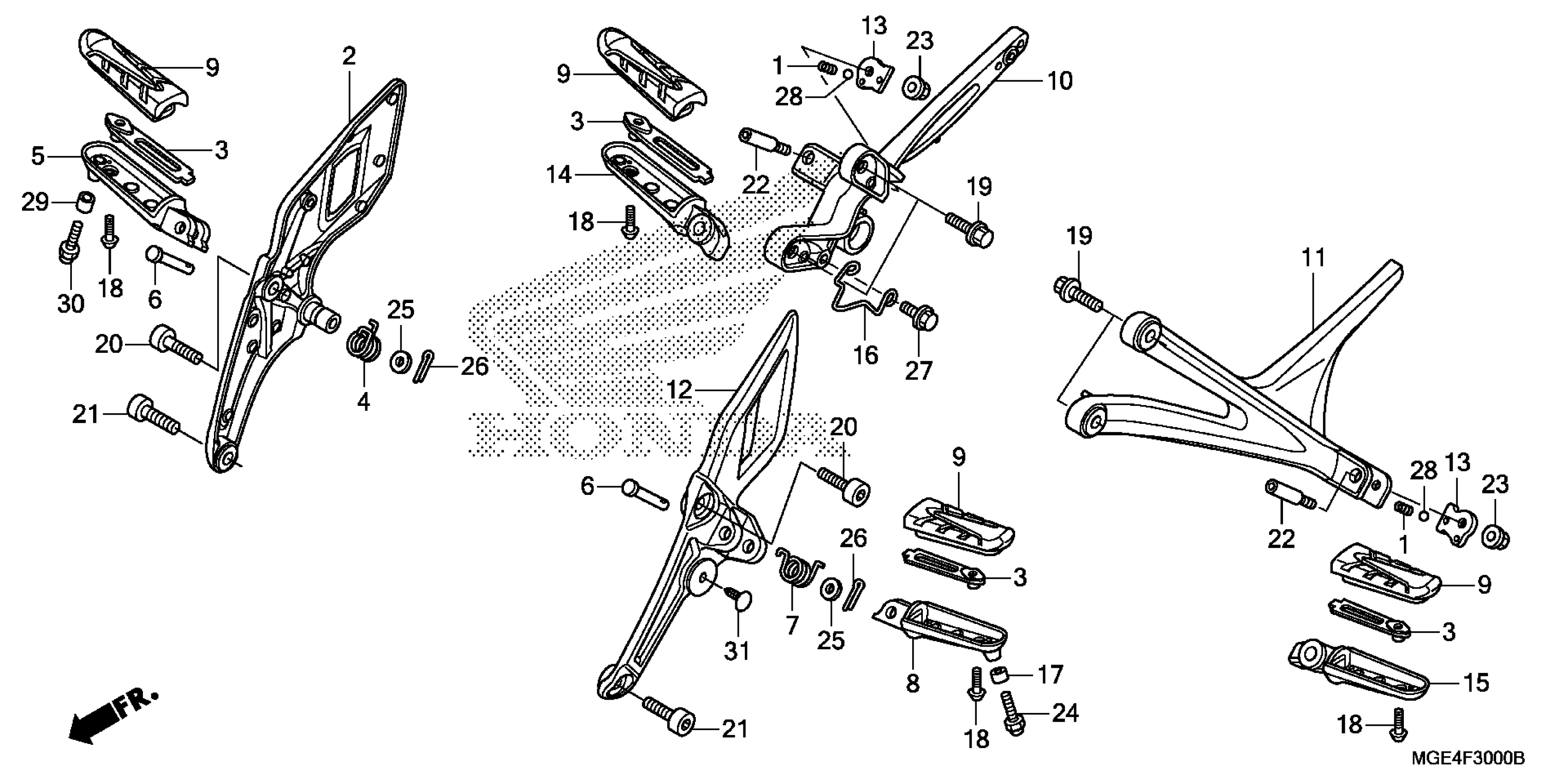

Honda VFR1200FAC (13) VFR1200F, JPN, VIN# JH2SC631-DK300001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

HOLDER, R. MAIN STEP

50600-MGE-D40

$188.91

3

PLATE, STEP SETTING

50609-MGE-000

$4.81

4

SPRING, R. STEP RETURN

50617-445-840

$5.20

5

ARM, R. MAIN STEP This part replaces 50635-MBW-305.

50635-MBW-000

$49.44

6

PIN, STEP BAR

50639-MFL-D20

$2.80

7

SPRING, L. STEP RETURN

50644-445-840

$5.20

8

ARM, L. MAIN STEP This part replaces 50645-MBW-305.

50645-MBW-000

$49.44

9

RUBBER, MAIN STEP (PILLION) This part replaces 50661-MGE-305.

50661-MGE-000

Unavailable

10

HOLDER, R. PILLION STEP

50671-MGE-D40

$138.60

11

HOLDER, L. PILLION STEP

50681-MGE-D40

$138.97

12

HOLDER, L. MAIN STEP

50700-MGE-D40

$163.84

13

PLATE, PILLION STEP CLICK

50718-MGE-000

Unavailable

14

ARM, R. PILLION STEP (COO)

50720-MGE-315

$66.78

15

ARM,L P.STEP This part replaces 50730-MGE-315.

50730-MGE-020

$68.97

16

GUIDE, EX. CABLE

50780-MGE-000

$10.28

17

COLLAR, STEERING DAMPER

53709-MFL-000

$1.91

18

BOLT, SPECIAL (5X14)

90118-MGE-000

$3.22

19

BOLT, FLANGE (8X30)

90136-MCA-000

$2.37

20

BOLT, SOCKET (8X22)

90157-MGE-000

$3.87

21

BOLT, SOCKET (10X22)

90158-MGE-000

$4.35

22

BOLT, SPECIAL (6X16)

90167-MGE-010

Unavailable

23

NUT, U (6MM)

90301-473-003

$3.89

24

BOLT, CAP (6X20)

92501-06020-0B

$5.09

25

WASHER, PLAIN (8MM)

94102-08200

$0.79

26

PIN, SPLIT (2.0)

94201-20152

$0.93

27

BOLT, FLANGE (6X14)

96001-06014-07

$1.10

28

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable

29

COLLAR, ADJUSTING LEVER

64152-MCA-000

$4.72

30

BOLT, HEX. CAP (6X30)

92501-06030-0B

$2.10

31

CLIP, BRUSH

90656-MGH-641

$2.06
