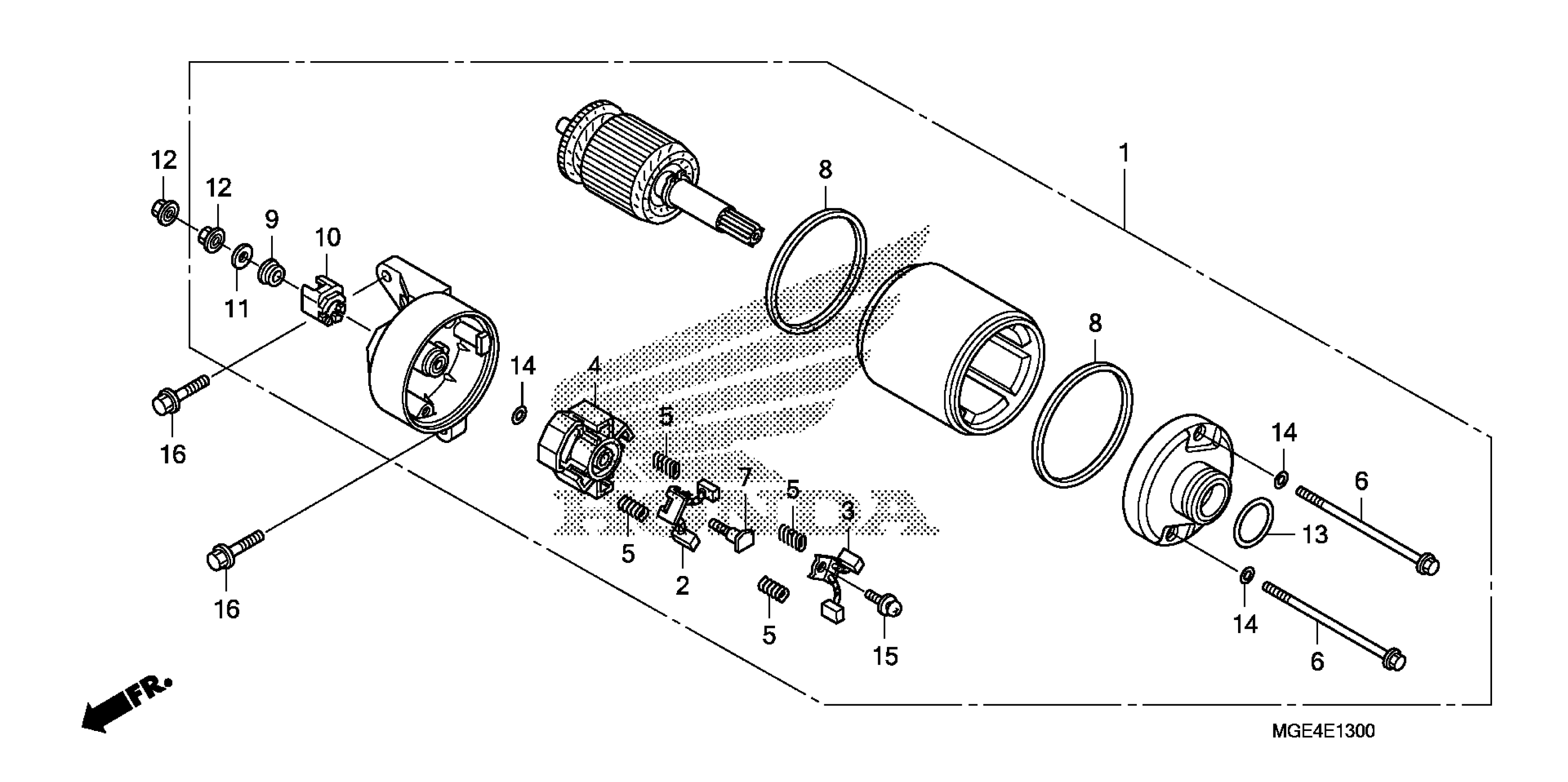

Honda VFR1200FAC (13) VFR1200F, JPN, VIN# JH2SC631-DK300001 STARTING MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-MGE-641

$558.65

2

BRUSH SET A, CARBON

31201-MEW-921

$7.25

3

BRUSH SET B, CARBON

31202-MEW-921

$11.74

4

HOLDER, BRUSH

31203-MEW-921

$6.96

5

SPRING, CARBON BRUSH

31204-MEW-921

$11.33

6

BOLT, SETTING

31205-MEW-921

$8.88

7

BOLT, TERMINAL

31206-MEW-921

$2.67

8

RING

31207-KS5-901

$2.90

9

INSULATOR

31208-MEW-921

$6.97

10

STOPPER, TERMINAL

31209-MEW-921

$10.35

11

WASHER

31210-MEW-921

$1.65

12

NUT-WASHER (6MM)

90071-MB0-000

$1.88

13

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

13

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

14

O-RING (4X2)

91320-MB0-000

$2.20

15

SCREW-WASHER (5X12)

93892-05012-08

$1.04

16

BOLT, FLANGE (6X25)

95801-06025-08

$1.64
