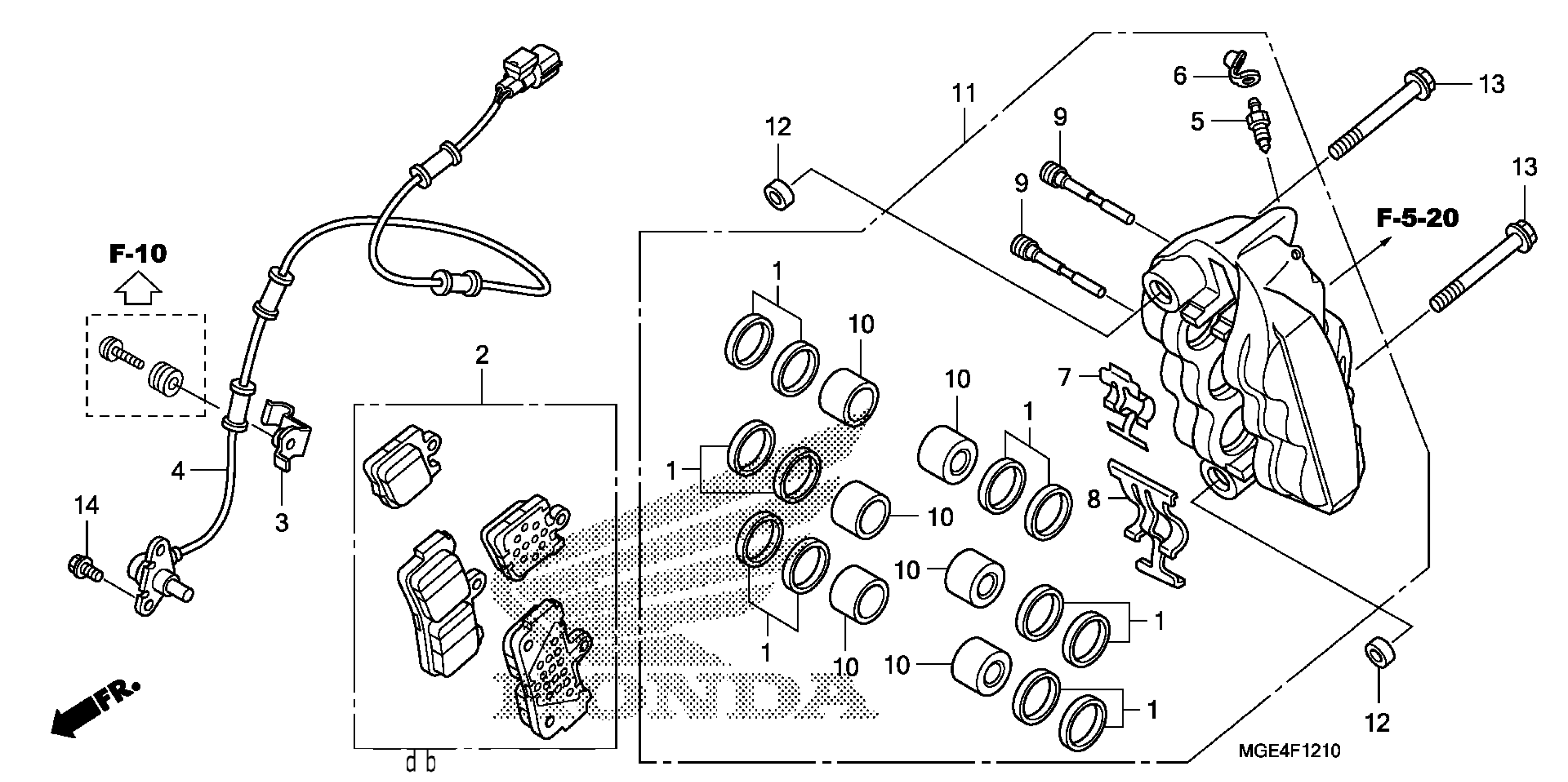

Honda VFR1200FAC (13) VFR1200F, JPN, VIN# JH2SC631-DK300001 RIGHT FRONT BRAKE CALIPER Diagram

#

Description

Price

1

SEAL SET, PISTON (25)

06453-MGE-006

$5.12

2

PAD SET, FR. This part replaces 06455-MGE-006.

06455-MGE-016

$75.95

3

CLAMP, ABS WIRE

38514-MGE-640

$9.20

4

SENSOR, FR. WHEEL SPEED

38520-MGE-641

$192.95

5

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

6

CAP, BLEEDER

43353-461-771

$5.05

7

SPRING, PAD

45113-MGE-006

$7.57

8

SPRING, PAD

45114-MGE-006

$6.89

9

PIN, HANGER

45115-MGE-006

$5.26

10

PISTON (25MM) This part replaces 45117-MGE-006.

45117-MGE-016

$37.97

11

CALIPER SUB-ASSY., R. FR.

45250-MGE-006

$667.11

12

SPACER, FR. FORK

51497-MEL-000

$5.12

13

BOLT, FLANGE (10X67)

90133-MGE-000

$5.62

14

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
