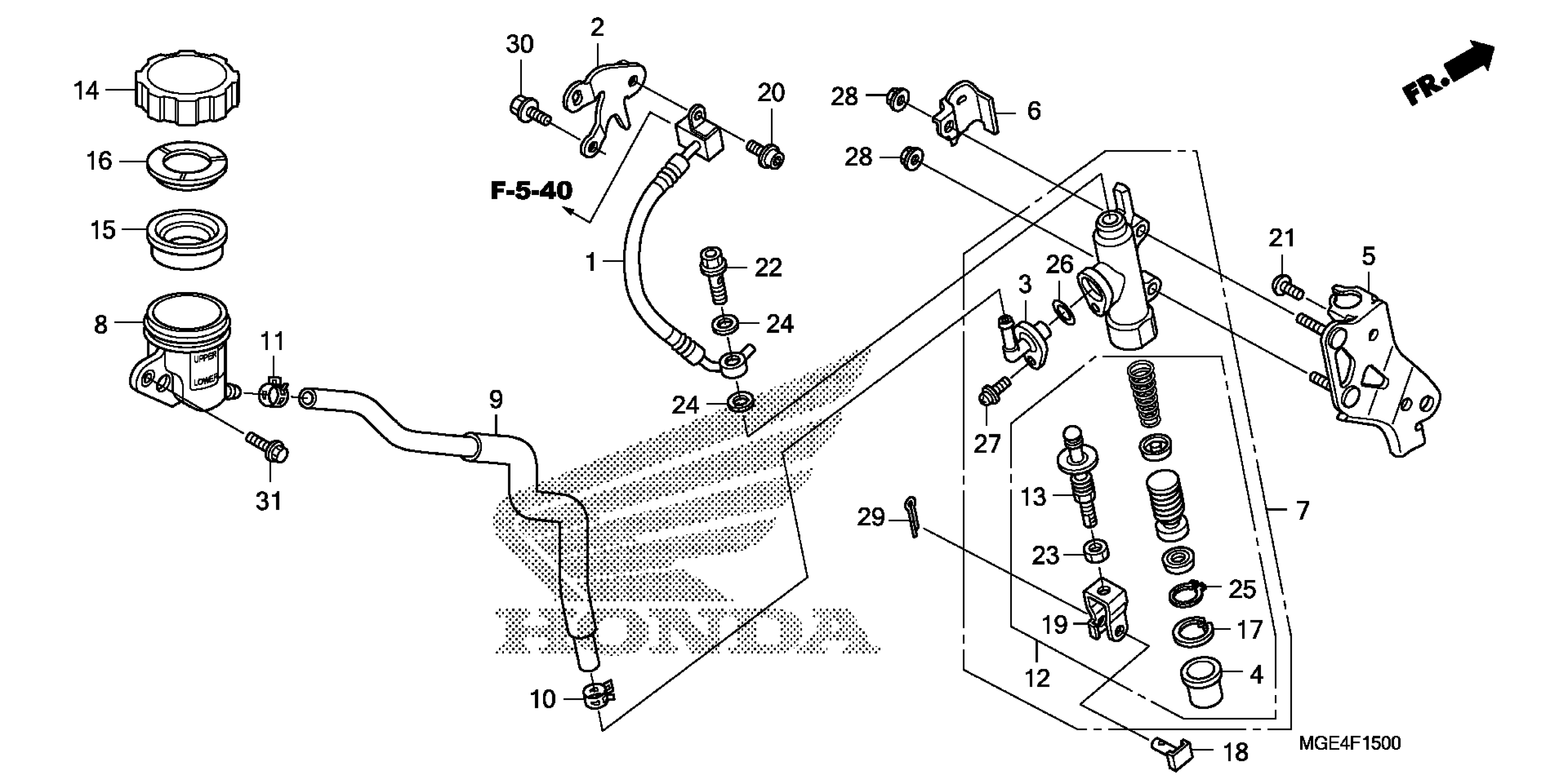

Honda VFR1200FAC (13) VFR1200F, JPN, VIN# JH2SC631-DK300001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE A, RR. BRAKE

43310-MGE-013

$43.80

2

STAY, RR. BRAKE HOSE

43325-MGE-000

$9.41

3

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.04

4

BOOT

43504-MB2-006

$9.01

5

STAY, RR. MASTER CYLINDER

43505-MGE-000

$13.67

6

COVER, STOP SWITCH

43506-MGE-000

$7.78

7

M/CYL SUB-ASSY, RR. This part replaces 43510-MGE-305.

43510-MGE-006

$195.70

8

CUP, MASTER CYLINDER OIL

43511-MGE-016

$20.51

9

HOSE, RR. BRAKE MASTER CYLINDER

43512-MGE-006

$34.00

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

11

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$13.91

12

PISTON SET, RR. MASTER CYLINDER

43520-MGE-006

$103.57

13

ROD, PUSH

43530-MGE-006

$25.39

14

CAP, OIL CUP

45513-MEL-D21

$16.55

15

DIAPHRAGM

45520-300-000

$8.13

16

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

17

CIRCLIP

46182-MEL-D21

$1.77

18

PIN, BRAKE ROD

46503-MAL-000

$5.46

19

JOINT, BRAKE ROD

46504-MAL-601

$12.20

20

BOLT, FLANGE SOCKET (6X12)

90009-MF5-000

$3.35

21

BOLT, SPECIAL (6X14)

90118-MCL-000

$2.12

22

BOLT, OIL (10X22)

90145-MS9-612

$6.82

23

NUT, HEX. (8MM)

90301-MEH-006

$1.39

24

WASHER, OIL BOLT

90545-300-000

$3.72

25

CIRCLIP, PISTON

90651-MBG-006

$2.59

26

O-RING (14.8X2.4)

91212-422-006

Unavailable

27

SCREW-WASHER (4X12)

93893-04012-07

$1.22

27

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

28

NUT, FLANGE (6MM)

94050-06070

$1.32

29

PIN, SPLIT (2.0X12)

94201-20120

$0.94

30

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

31

BOLT, FLANGE (6X16)

96001-06016-07

$0.96
