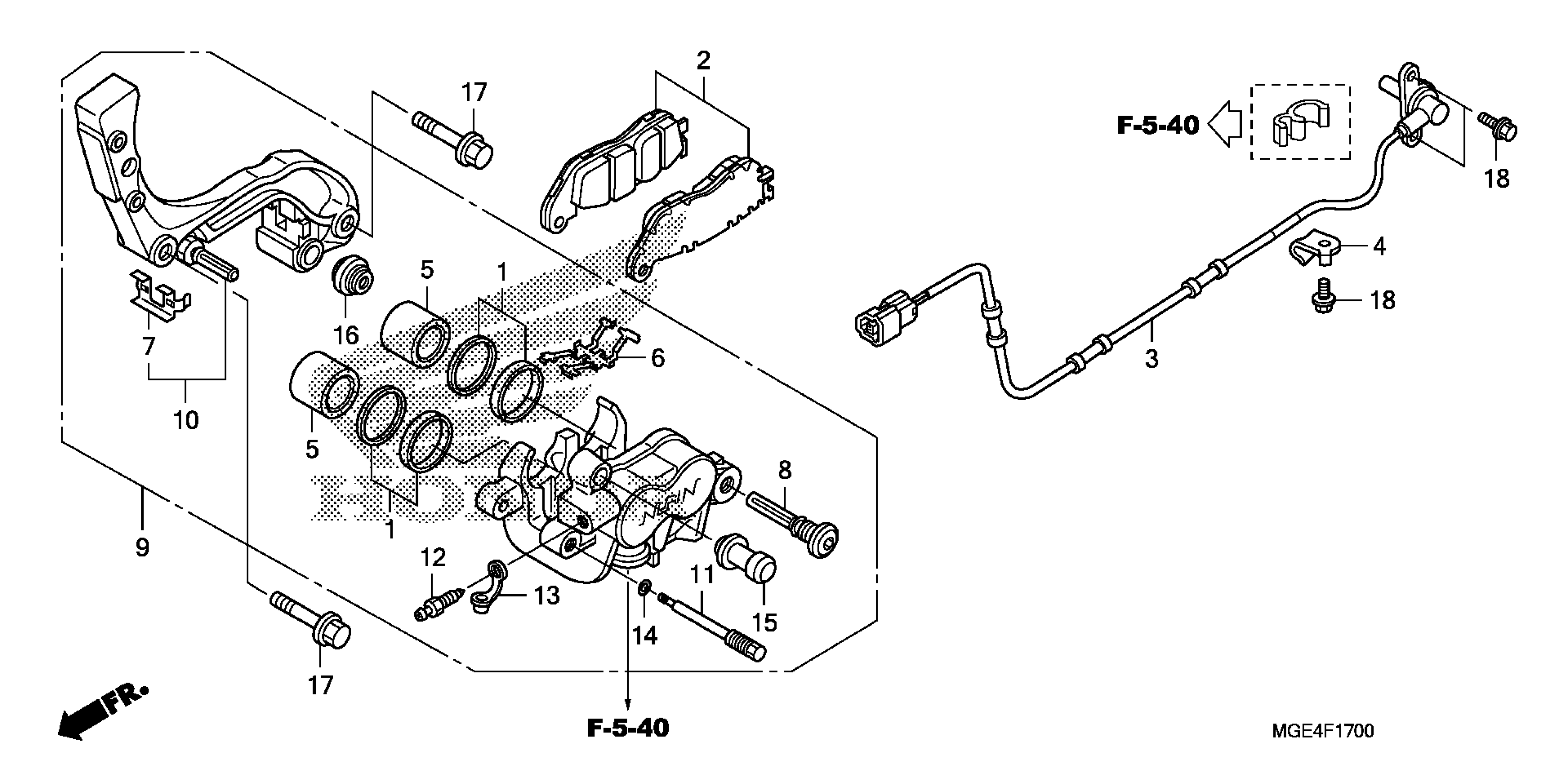

Honda VFR1200FAC (13) VFR1200F, JPN, VIN# JH2SC631-DK300001 REAR BRAKE CALIPER (1) Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, RR. This part replaces 06435-MFN-D11.

06435-MFN-D12

$64.20

SENSOR, RR. WHEEL SPEED

38510-MGE-641

$192.95

GUIDE, SENSOR WIRE

38515-MCT-910

$7.97

PISTON

43107-MGE-006

$36.18

SPRING, PAD

43108-MFN-D02

$4.16

RETAINER

43112-MGE-006

$7.90

BOLT, PIN

43131-KW3-006

$10.29

CALIPER SUB-ASSY., RR.

43150-MGE-006

$361.67

BRACKET SUB-ASSY., RR.

43190-MGE-006

$164.25

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (10X45)

90132-MGE-000

$4.85

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
